Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC - 30102500

$170.00

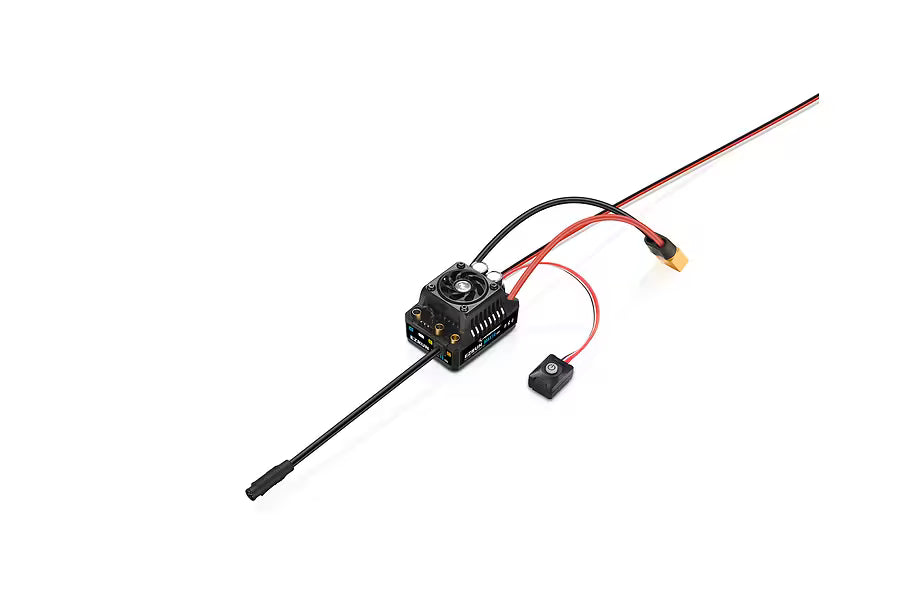

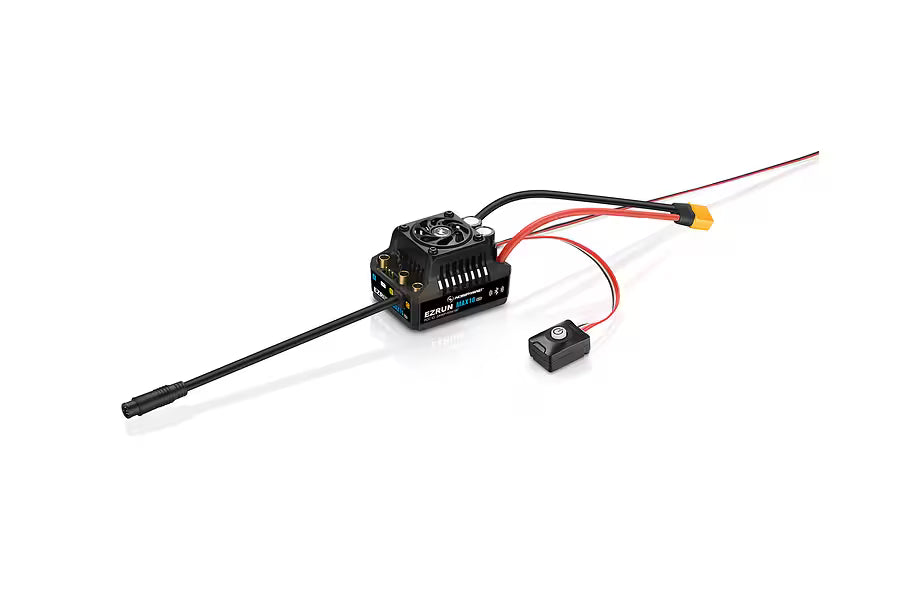

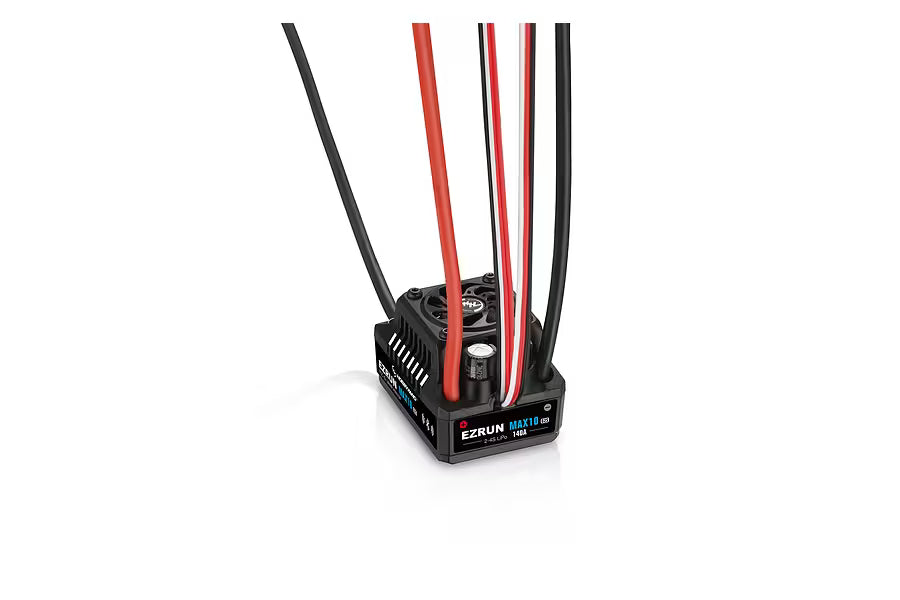

Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC

Overview

Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC Upgrades Your 1/10 Scale Monster Truck With Massive Sensored Power

  • Massive 140A Output Handles High-Speed Brushless Motors
  • Sensored Brushless Technology Provides Smooth Linear Power
  • Built-In Bluetooth Module Allows Wireless Smartphone Tuning
  • IP67 Waterproof Rating Protects Against Harsh Weather
  • Adjustable High Voltage BEC Powers High-Torque Servos

Description

Upgrade your 1/10-scale monster truck with this high-performance, sensorless brushless ESC. The Hobbywing EzRun Max10 G2S provides incredibly smooth and linear power output across the entire RPM range. This advanced 140A system gives you aggressive launches off the line while maintaining perfect low-speed control through technical sections of the track.

Tuning your vehicle is incredibly simple thanks to the built-in Bluetooth module located inside the power switch. You can easily adjust parameters, review real-time data logs, and update firmware directly from your smartphone using the HW LINK app. The integrated high-voltage BEC supplies reliable power to your steering servo, while the IP67 waterproof rating keeps you running in harsh weather conditions.

Features

  • Massive 140A Output Handles High-Speed Brushless Motors
  • Sensored Brushless Technology Provides Smooth Linear Power
  • Built-In Bluetooth Module Allows Wireless Smartphone Tuning
  • IP67 Waterproof Rating Protects Against Harsh Weather
  • Adjustable High Voltage BEC Powers High-Torque Servos
  • Turbo Timing Technology Increases Maximum Top Speed
  • Intelligent Fan Control Reduces Noise And Power Consumption
  • Integrated Data Logging Records Your Track Performance
  • Capacitor Thermal Protection Prevents Costly Electrical Damage
  • Genuine Hobbywing Product

Included Items

  • 1x Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC

Required Items

1x Compatible 1/10 Scale RC Vehicle

1x Compatible Sensored Brushless Motor (3652, 3665, Or 4268 Size)

1x Compatible 2S-4S LiPo Battery With XT60 Connector

Specifications

Length:
53mm (2.08")
Width
39.5mm (1.55")
Height
37.2mm (1.46")
Weight
125g (4.40oz)
Continuous Current
140A
Peak Current
880A
Input Voltage
2-4S LiPo
BEC Output
6V/7.4V/8.4V At 5A
Input Connector
XT60
Output Connector
4.0mm Gold Female
Compatible Vehicles:
1/10 Scale Short Course Trucks And Monster Trucks

ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
14.8V
Waterproof Design
Yes
Burst Amps
880A
Continuous Amps
140A
Motor Connectors
4.0mm Bullet
Battery Connector
XT60
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V, 7.4V
Dual Motor
No
