Hobbywing EzRun Max10 3652SL 5400Kv Brushless Motor and 60A ESC Combo - 38010205

$199.00

Hobbywing EzRun Max10 3652SL 5400Kv Brushless Motor and 60A ESC Combo - 38010205

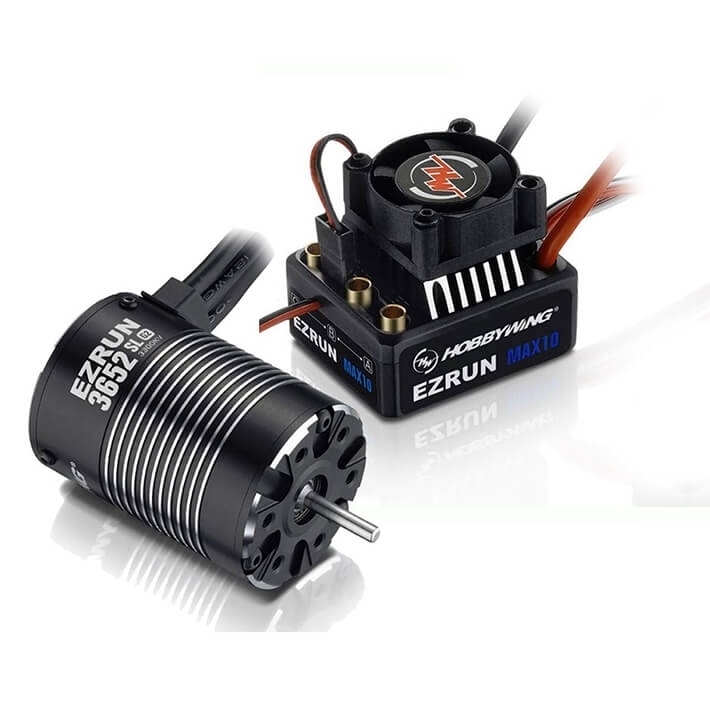

Hobbywing EzRun Max10 3652SL 5400Kv Brushless Motor and 60A ESC Combo







Overview

Hobbywing have been busy making one of their most popular combo's even better... IT'S NOW WATERPROOF.
This kit features a crazy fast 5400Kv 4 Pole brushless motor which will push your 1/10th RC model to crazy new speeds!! Hobbywing have also worked hard to make this ESC easy to use and program so that anyone can do it.

Universal - This combo will fit a wide range of 1/10 RC cars and trucks like the HPI Sprint 2 Flux and Traxxas Slash 2wd. Even if you're looking for a fast brushless combo for a scratch build or custom project, this combo is a fantastic option to get the most out of your 1/10 RC model.

Features

The MAX10 uses a Motor Thermal Protection circuit (in Sensorless Mode)

When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect the motor from irreversible damage due to overheating in real time.

Capacitor Thermal Protection

The capacitor thermal protection first implemented in the MAX10 will effectively protect capacitors from diaelectric failure causing irreversible damage to the ESC due to overload.

High Reliability & Durability

Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Super Internal BEC

The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various high voltage servos.

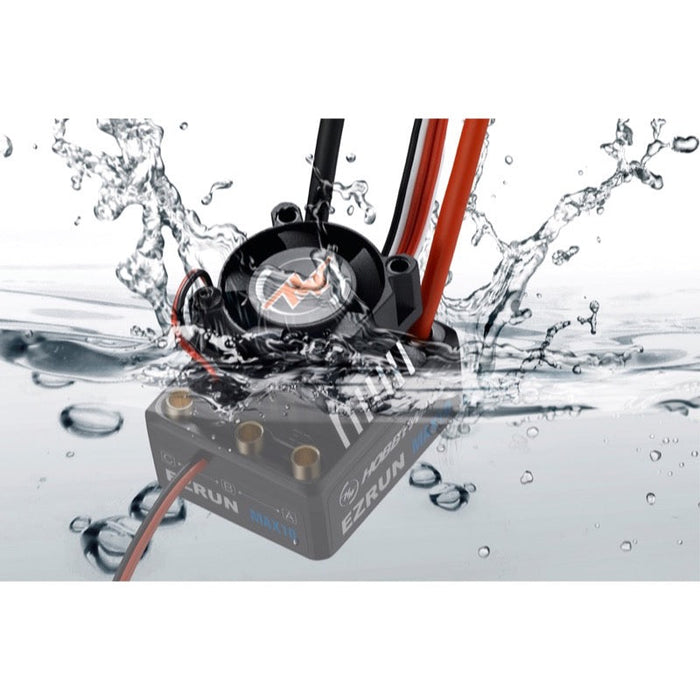

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Advanced and Secure Electronic Switch

The MAX10 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge

You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi module/ LED or program box and a smartphone/laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Hobbywing Ezrun Max10 60A Waterproof ESC Specifications
  • Max Input Voltage: 2-3S LiPo/6-9 Cells NiMH
  • Amp Rating: 60A
  • Brake: Proportional with adjustable curve
  • Reversible: Yes - with lockout
  • Low Voltage Cut-Off: Yes, programmable
  • Size: 39.4 x 32.8 x 23.1mm (w/o Fan)
  • Weight w/ Wires: 67.8g
  • Output Motor Connectors: 3.5mm bullet
Hobbywing Ezrun Max10 3652SL 5400Kv Motor Specifications
  • Max Input Voltage: 2S 7.4V Lipo
  • Weight: 217(7.654oz)
  • Motor Diameter: 36mm
  • Motor Length: 52mm
  • Shaft Diameter: 3.175mm (1/8")
  • Connector: 3.5mm bullet

Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless
Max Voltage: 11.1
Continuous Amps: 60
Motor Connectors: 3.5mm Bullet
Battery Connector: N/A
LiPo Cut-off: Yes
Programmable: Yes
Waterproof Design: Yes
Cooling Method: Fan
BEC Voltage: 6
Dual Motor: No
Motor
Motor Type: Brushless
Can Length (mm): 52
Can Diameter (mm): 36
KV (RPM/V): 5400
Shaft Diameter (mm): 3.175 (1/8")
Turns: N/A
