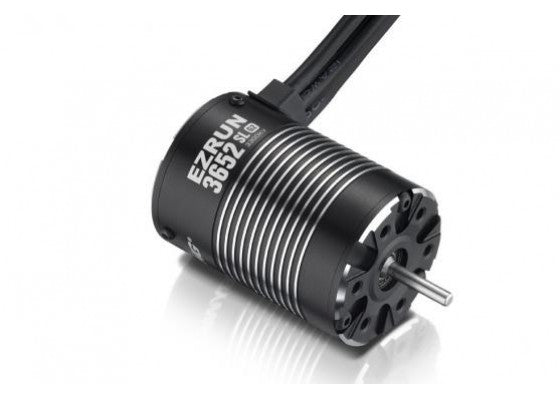

Hobbywing EzRun 3652 G2 4000Kv Sensorless Brushless Motor - HW-30402601

Features:

• Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
• Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3652 G2 with a EZRUN MAX10 ESC.
• O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
• Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined Aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• Excellent match between EZRUN 3652 G2 with EZRUN MAX10 guarantees users large torque plus a very smooth and linear power band.

Specifications:

• kV (no load): 4000
• LiPo: 2S -3s
• No-load Current: 5.2A
• Motor Diameter: 36mm (1.417in)
• Motor Length: 52mm (2.047in)
• Shaft Diameter: 3,175mm
• Shaft Length: 18,5mm
• Poles: 4
• Weight: 216g

Application:

1/10th Touring / Buggy / Light-duty 2WD Short-course / Truck / Monster truck etc
