HJ SPT 70Kg Digital Servo
Category:
- Potentiometer: Mechanics
- Motor: Core
- Voltage Range: 4.8V/6.0V/8.4V
- Neutral Point:1500μs
- Signal Frequency:330Hz
- Operating Speed: 6.0V/ 0.20''/60°
- Stall Torque: 6.0V/56 kg.cm
- Operating Speed: 7.4V/ 0.16''/60°
- Stall Torque: 7.4V/72 kg.cm

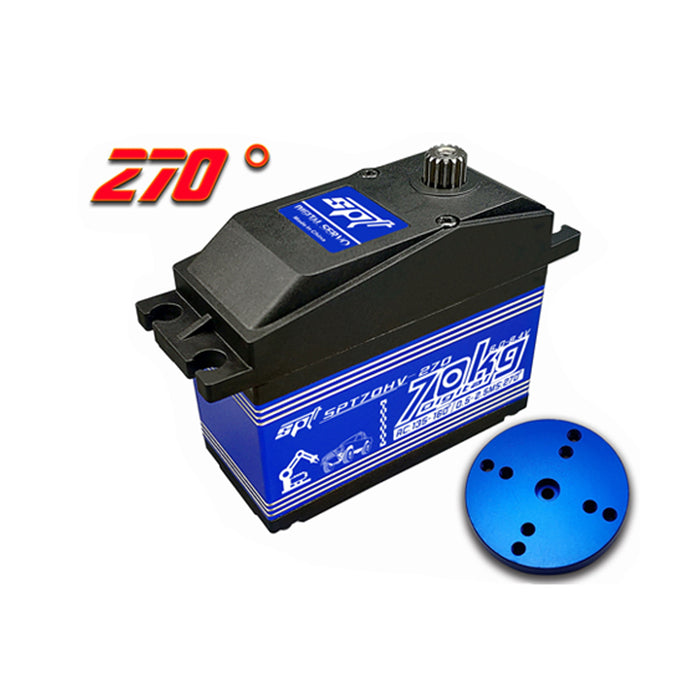

SPT70HV-270 70kg torque max 270 degree 15 teeth gear mechanical arm servo for industry robot
Brand: | SPT Servo | Potentiometer: | Mechanics |
Motor: | Core | Voltage Range: | 4.8V/6.0V/8.4V |
Neutral Point: | 1500μs | Signal Frequency: | 330Hz |
PWM Voltage: | 3.3V-5.0V | PWM Voltage: | 3.3V-5.0V |
Feedback Angle: | No | Operating Temperature: | -10℃-50℃ |
Cycle: | 20ms | Dead band: | 4μs |
Default Direction: | CCW | Yes / no Lock: | NLock |
Remote control Angle: | 90° | 500-2500μs Angle: | 180° / PWM |
Quiescent Current: | 60mAh | Rated Current: | 2A |
Blocking Current: | 4.5A | Weight / Dimensions: | 200g / 65.7X30X57mm |
Output Gear: | Savox0236 15T | Gear Material: | All Metal Gear |
Shell Material: | Half Aluminum Shell | Bearing: | 2BB |
Connector Wire Length: | 260MM | line Definition: | Brown-/Red+/Orange s |
Operating Speed: | / | 6.0V/ 0.20''/60° | 7.4V/ 0.16''/60° |
Stall Torque: | / | 6.0V/56 kg.cm | 7.4V/72 kg.cm |
Standard Configuration : Metal Arm, Stainless Steel Gear
Angle range: the default of the remote control is 90 degrees, and the maximum is 120 degrees(Due to the different brand remote controller, the maximum angle may have a little difference); Support the control board 0.5-2.5ms, the maximum angle is 270 degrees.
The circuit functions: this servo has soft start and load blocking protection (15s continuous load blocking, current of 2.5A or above) With lock (if the remote control is ignored, the control board control needs to send a command, even if the disconnection signal is always executed, and the servo has locking force; without lock, the same command needs to be sent continuously, so that the servo can be effectively fixed in one position, and the disconnection signal is that the servo has no locking force)
Application: 1/5 Scale Remote Control vehicle steering
