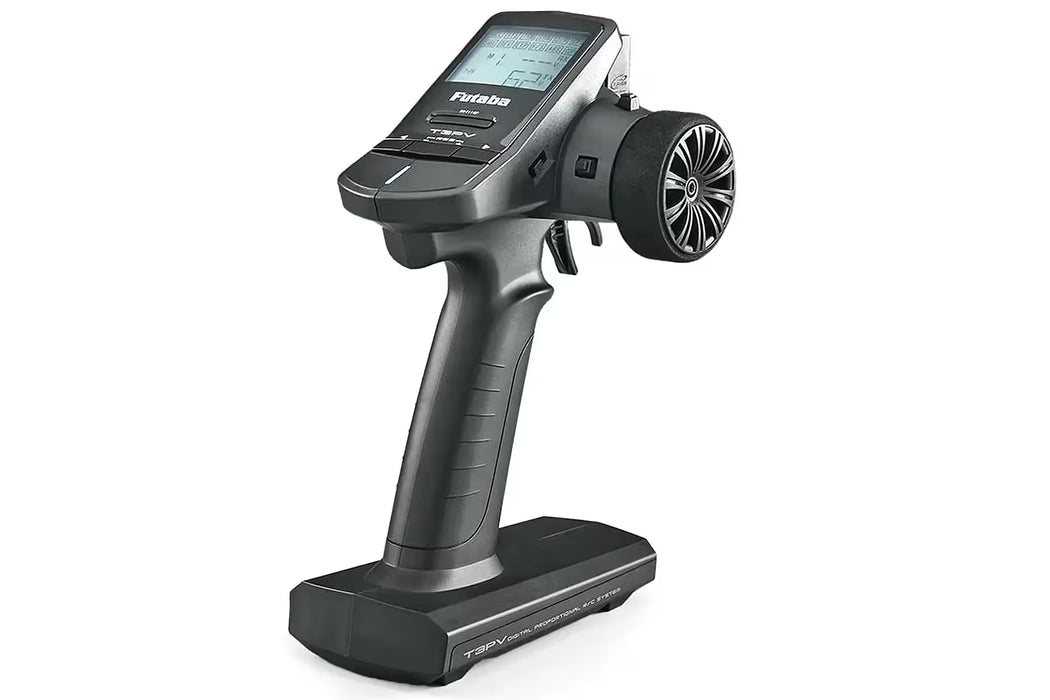

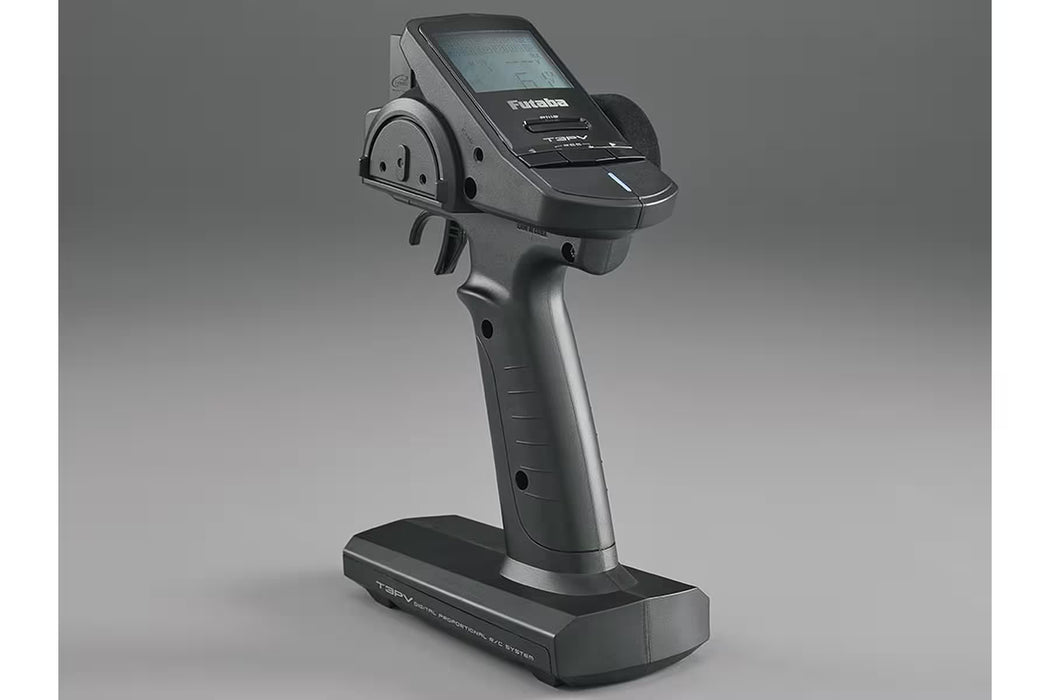

Futaba 3PV 2.4Ghz 3ch Radio w/ Receiver
- Type3-Channel FHSS/S-FHSS/T-FHSS*
- Includes3-Channel R314SB Receiver
Description

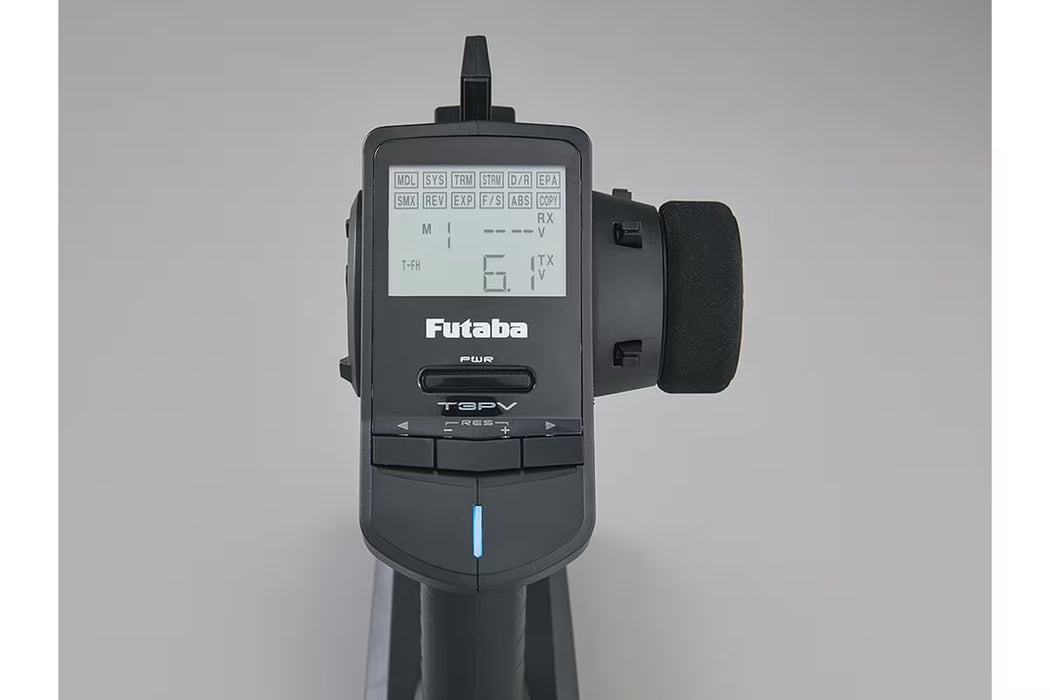

Futaba 3PV 2.4G Transmitter With R314SB Receiver The Futaba 3PV surface radio system combines lightweight ergonomics with sophisticated programming capabilities and rapid response characteristics. The transmitter supports FHSS, S-FHSS, and T-FHSS protocols, making it adaptable across multiple surface vehicle configurations. An easy-to-read screen provides intuitive access to comprehensive programming functions. The R314SB receiver features telemetry capability for monitoring receiver voltage during operation. Alternative configurations with high-voltage R203GF receivers accommodate brushless ESC and digital servo applications. Programming features include 10-model memory capacity, 4-character model naming, low battery alerts, DT3 selection, dual-rate steering, end-point adjustment for steering and throttle channels, and sub-trim controls. Channel 4 functionality supports auxiliary control requirements. The system delivers exceptionally fast signal response suitable for competitive racing environments. Lightweight construction and versatile protocol compatibility address diverse surface racing demands.
The 3PV is one of Futaba's most popular remote controllers. It ticks all the boxes for most hobbyists wanting to upgrade their remote controller.
- Telemetry capable
- 4ch (with an S.BUS2 port)
- R314SB 2.4Ghz T-FHSS Receiver
- End point adjustments
- Model memory
- Light weight
Specifications
- FHSS/S-FHSS/T-FHSS* protocols
- 10-model memory
- Model Reset
- Model Name (4-Character)
- Low Battery Alarm
- Link Mode (T-FHSS only)
- DT3 Selection
- SW1
- Steering, Throttle and Ch4 Trim
- Sub Trim
- Steering Dual Rates
- End Point Adjustment
- Steering, Throttle, Ch3 and Ch4 Signal Reversing
- 4WS/Brake Mixing
- Steering & Throttle Exponential
- Throttle Fail Safe
- ABS Function
- Model Data Copy
- 2.4GHz Frequency
- Auto Power-Off after 10 minutes
