Futaba 10J 2.4Ghz 10ch Radio w/ R3008SB Receiver - Mode 2

Overview

Description

Futaba T6K 8ch T-FHSS Inc R3006SB Receiver Mode 2

The Futaba 10J 10-Channel T-FHSS Transmitter is a versatile and feature-rich radio system designed for both beginner and experienced pilots, compatible with aircraft, drones, helicopters, and other multi-channel RC setups. Equipped with Futaba's T-FHSS technology for interference-free operation and fast response, this transmitter provides precise control with advanced telemetry support. The package includes an R3006SB receiver, a rechargeable battery, and a charger, providing a complete setup ready for the skies.

Key Features

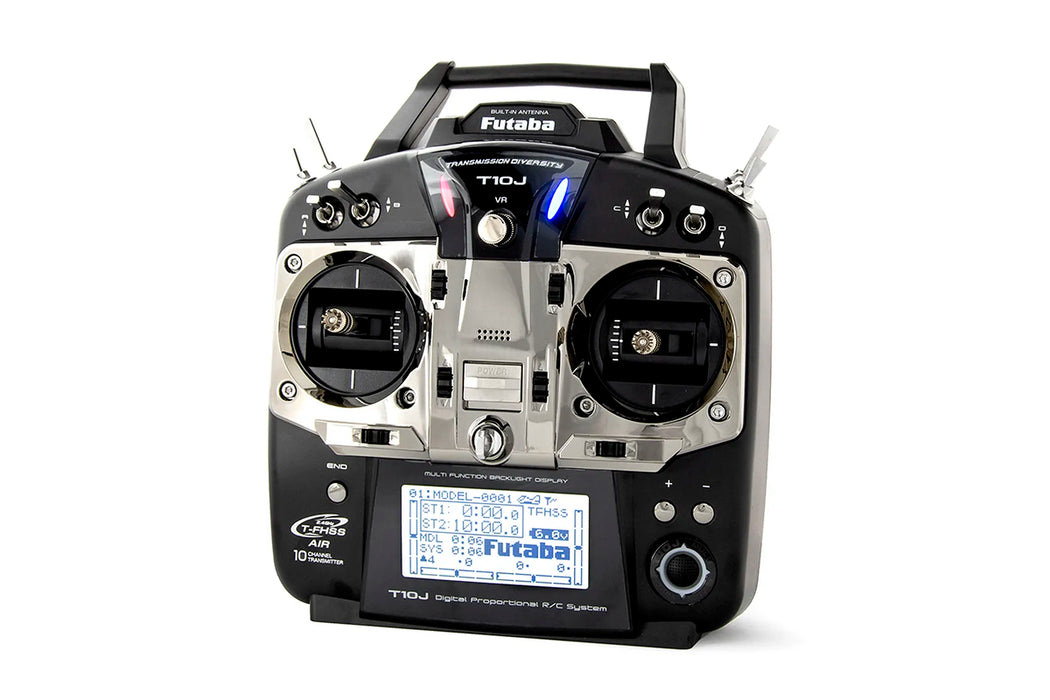

Futaba 10J 10-Channel Transmitter

• T-FHSS Air 2.4GHz 10-channel transmitter: Futaba 2.4GHz T-FHSS Air system.
• Telemetry system: Bidirectional T-FHSS Air communication; displays battery voltage, altitude, speed, temperature, and other data at the transmitter during flight (optional sensors required for altitude, speed, temperature).
• Speech function: Telemetry data can be heard by plugging commercial earphones into the transmitter.
• Built-in diversity antenna: Provides a simple appearance and improves handling ease.
• S.BUS/S.BUS2 system: Servo channel and various functions can be set by connecting the servo to the transmitter.
• Power-saving transmitter: Runs on four AA alkaline batteries. Optional HT5F1800B (NiMH 6.0V, 1800mAh) or FT2F2100BV2 (lithium-ferrite 6.6V, 2100mAh) batteries can also be used.
• Vibration alert: Transmitter vibrates to alert the operator of various alarms.
• 30-model memory: Stored in the transmitter body.
• Mixing type selection: Fixed wing, helicopter, and glider; 8 swash plate types for helicopters; multi-copter selection also possible.
• Digital trim: Trim position displayed on LCD; step size adjustable; audible centre indicator.
• Lever head length adjustment: Adjustable lever head length with new shape to reduce slip.
• Switch/VR position and AUX channel function change: AUX channels 5–10 can be reassigned; programmable mixing available.
• Model data transfer: Wireless model data transfer between 10J or 8J transmitters.
• Compatible receivers (T-FHSS Air default): R3001SB, R3004SB, R3006SB, R3008SB. Compatible receivers (S-FHSS switchable): R2001SB, R2008SB, R2006GF, R2106GF.

 R3006SB Receiver

• S.BUS2 Compatibility: The R3006SB receiver supports Futaba’s S.BUS2 protocol, allowing for easy integration with S.BUS2-enabled servos, sensors, and other accessories, reducing wiring and enhancing functionality.

• 6 PWM Channels + 1 S.BUS2 Port: In addition to standard 6-channel PWM outputs, the R3006SB includes an S.BUS2 port, expanding compatibility with advanced setups and additional telemetry sensors.

• Telemetry Capable: Paired with the T6K transmitter, the receiver provides real-time telemetry data for monitoring key metrics, enabling safe and efficient operation.

Product Specifications

Transmitter (10J)

• Channels: 10
• Layout: Stick
• Frequency: 2.4GHz
• System: T-FHSS Air / S-FHSS, switchable
• Telemetry Support: Yes
• Programmable Failsafe: Yes
• Power supply: 6.0V dry battery
• RF power output: 100mW EIRP
• Display: Backlit LCD screen
• Mode: Mode 2 (throttle on the left)
• Battery Type: Rechargeable (included)
• Flight Modes: Programmable

Receiver (R3006SB)

• Channels: 6 PWM channels + 1 S.BUS2 port
• Telemetry Support: Yes
• S.BUS2 Compatibility: Yes
• Rated Voltage: 4.8V-7.4V
• Receiver operating voltage: DC 4.0–8.4V
• Receiver features: T-FHSS Air S.Bus compatible, EXT battery terminal, battery fail-safe function
• Dimensions: [Provide dimensions if available]
• Receiver (R3008SB) size: 24.9 × 47.3 × 14.3mm (0.98 × 1.86 × 0.56 in)
• Weight: 10.1g

 What's In The Box

• Futaba 10J 10ch Transmitter (Mode 2)
• R3006SB Receiver
• Battery and Charger
