FMS F4U 800mm Corsair Royal Blue (V2) PNP Upgraded W/ Reflex

$265.00

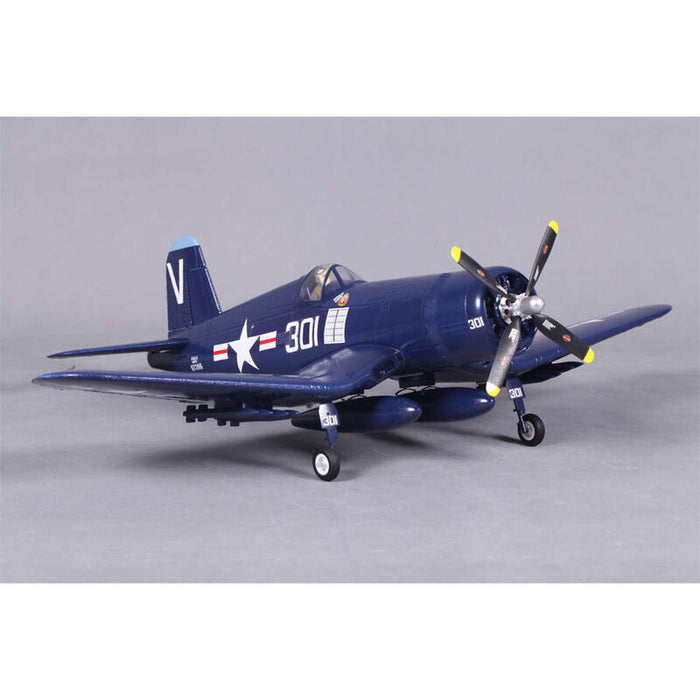

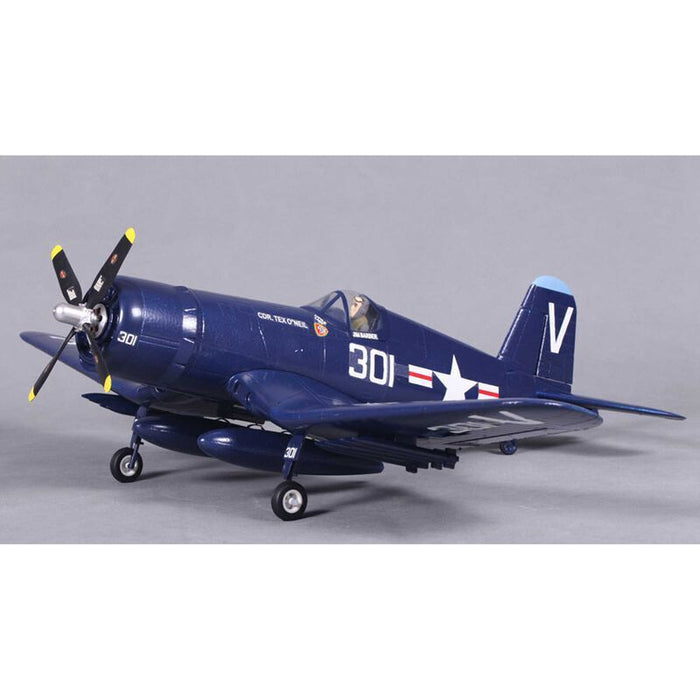

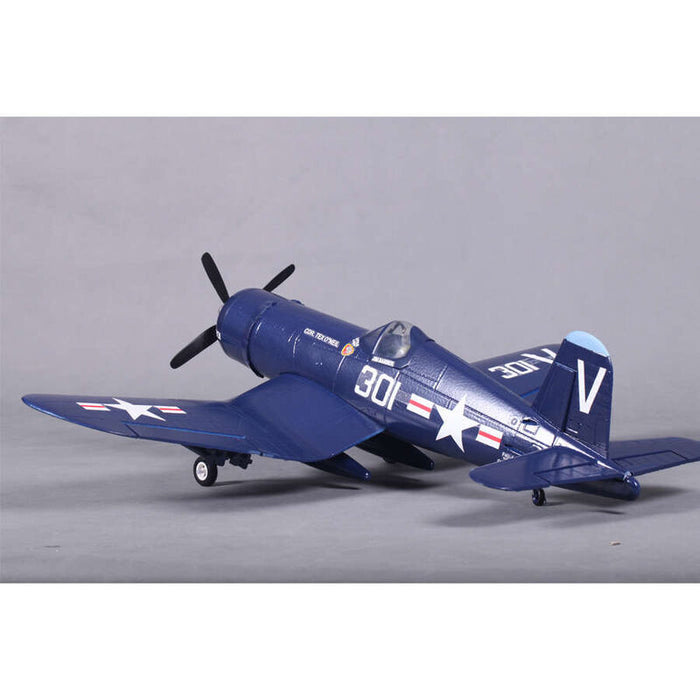

FMS F4U 800mm Corsair Royal Blue (V2) PNP Upgraded W/ Reflex RC Plane Airplane

Picture 1 of 4

Overview

The Vought F4U Corsair was a carrier capable fighter aircraft, equipped with the largest available engine at the time, the Pratt & Whitney R2800, the engine had 18 cylinders and delivered over 2000hp . The first model of this aircraft was delivered as a prototype to the US Navy in 1940.

The FMS model of the F4U Corsair has many scale features including a beautiful 3 blade propeller and scale hub. The aircraft features a brushless motor, 20Amp ESC and 4 ready installed servos. Assembly, following the simple photo step by step assembly guide takes minutes. The EPO foam construction provides a light weight yet resilient airframe that will make your adrenaline fueled dog fights genuine fun. So what are you waiting for order today.




Features

  • Super scale features including four blade propeller, fuel tanks, missiles, and hand painted pilot figure
  • Reinforced main landing gear and steerable tail gear
  • Scale fuel tanks and missiles
  • Upgraded FMS proprietary servos
  • Upgraded Kv1700 brushless motor - better quality and 30% faster than previous generations
  • Improved body design and Center of Gravity (CG) makes this version 2 easier to control
  • Made of durable EPO Foam

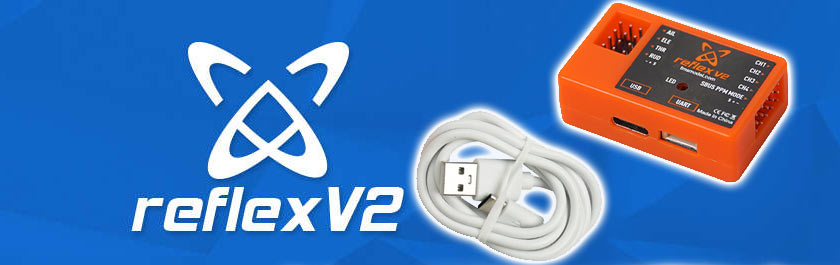

Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft
The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!

Reflex Functions
Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.

Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.

Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Specifications

Manufacturer FMS
Wingspan 800mm/31.5 in
Overall Length 660mm/26.0 in
Flying Weight Around 445g
Motor Size 2408-KV1700
ESC 20A Brushless ESC
Servo 9g Servo x 4
Radio 4 Channel
CG (center of gravity) 50mm (From Leading Edge)
Prop Size 7.5 x 4 4 Blade Propeller With Spinner
Recommended Battery Li-Po 7.4V 1,000mAh 15C (not included)
Aileron Yes
Elevator Yes
Rudder Yes
Flaps No
Retracts No
Approx. Flying Duration 6-8 minutes
Minimum Age Recommendation 14+
Experience Level Beginner
Recommended Environment Outdoor
Assembly Time 45 minutes
Is Assembly Required Yes
Material Durable EPO
Package Options PNP
Requires

PNP Requires Radio System, Battery and Charger



Requires to Fly

  • 4+ Channel Radio System
  • LiPo Battery 7.4V 1000mAh
  • Compatible LiPo Charger

F4U

 Box Dimensions cm 91 x 26.5 x 19

Gross Weight 1.99 kg
