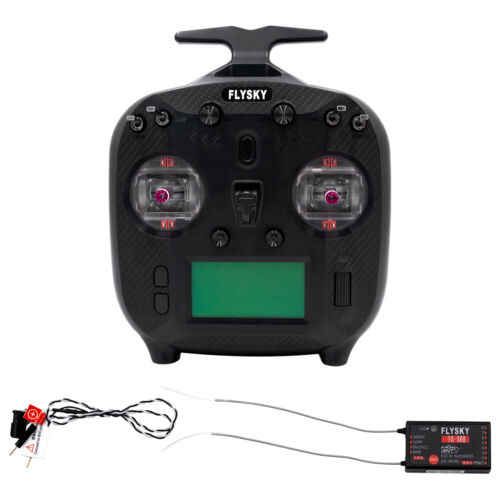

FlySky ST8 2.4Ghz Upgraded Radio w/ FS-SR8 8ch Receiver for Fixed Wing, Delta Wing, Glider, Helicopter, Multi-Axis, FPV, Engineering Vehicles and Robots
lySky ST8 Upgraded 8 Channel 2.4GHz Radio and Receiver
Ideal for Fixed Wing, Delta Wing, Glider, Helicopter, Multi-Axis, FPV, Engineering Vehicles and Robots
Features
|
8-10 channels
Track mixing control
Vibration function
USB simulator
Bilingual in English and Chinese
4096 resolution

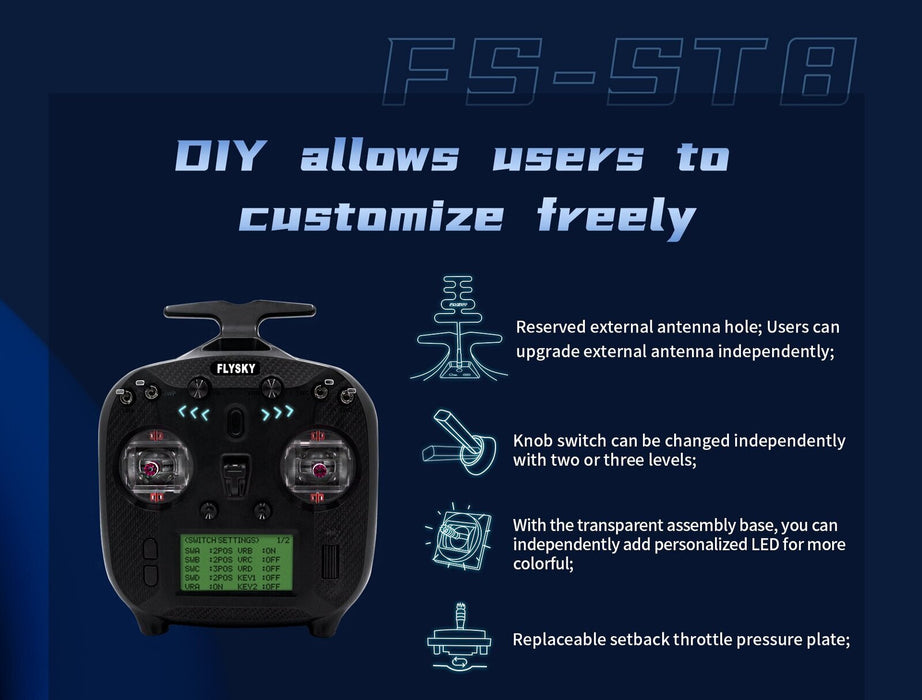

Function customization of switches, knobs and keys.
Support for settings of the receiver output signals such as PPM, PWM, ibus, and sbus
Support sensors such as height, rotation speed, temperature, voltage and FS-CGPS01 GPS modules

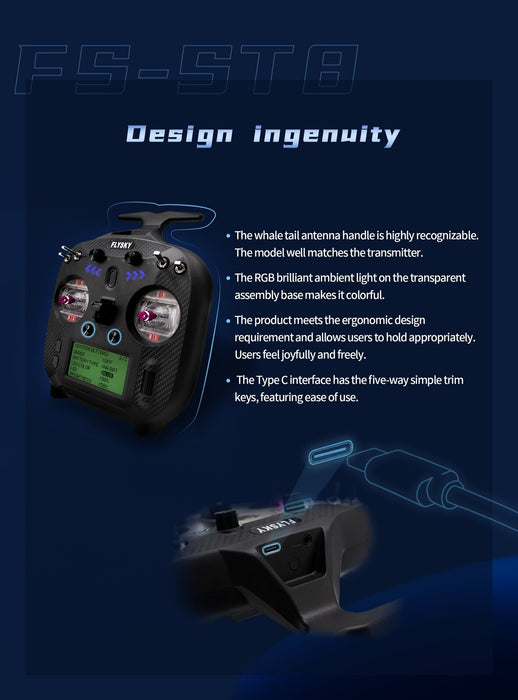

RGB ambient light
8 groups of linear mixing control
20 sets of model data
Support firmware update
Stick mode replacement

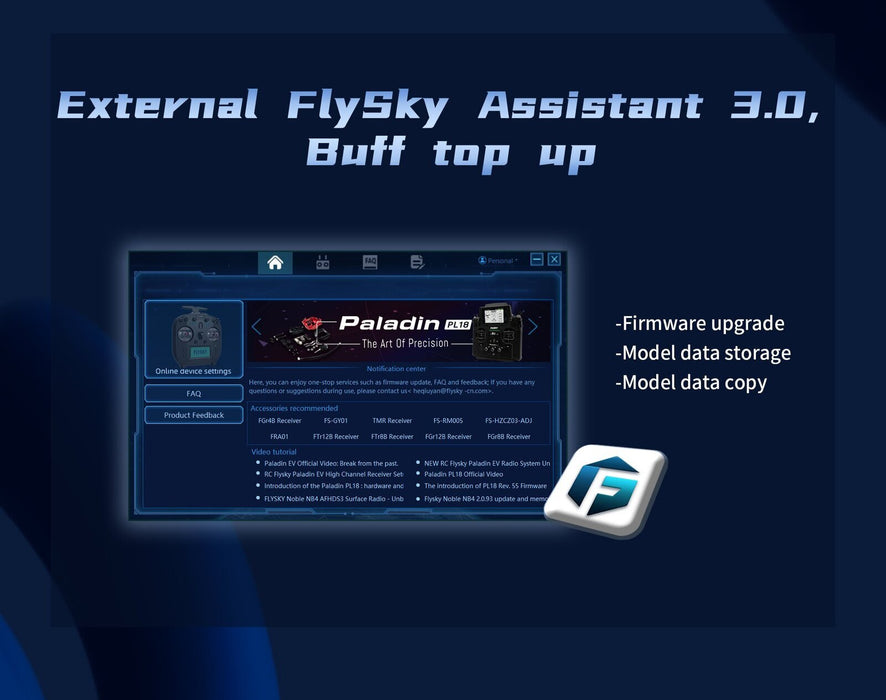

Support FlySky Assistant 3.0 ~ *
Free settings of adjustable ratio, throttle curve, etc.
Back transmission of RSSI, BVD voltage, other telemetry information
Support fixed-wing, delta-wing, glider, helicopter, multi-axis, FPV, car model, engineering vehicle, robot, boat and other models.
|
Specifications
Channels: 8-10
Model: fixed-wing, delta-wing, glider, helicopter, multi-axis, FPV, car model, engineering vehicle, robot, boat
Wireless frequency: 2.4GHz ISM
Transmission power: <20 dBm Wireless protocol: ANT Range:>1000m (AIR)
Channel resolution: 4096
Battery: 1.5AA * 4 or 2S(JST)
Charging port: None
Low voltage alarm: ＜ 4.2V /7.2V
Antenna type: Dual antennas
Display: LCD 128*64
Data port:DSC, Type C
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online update: Yes
Color: Black

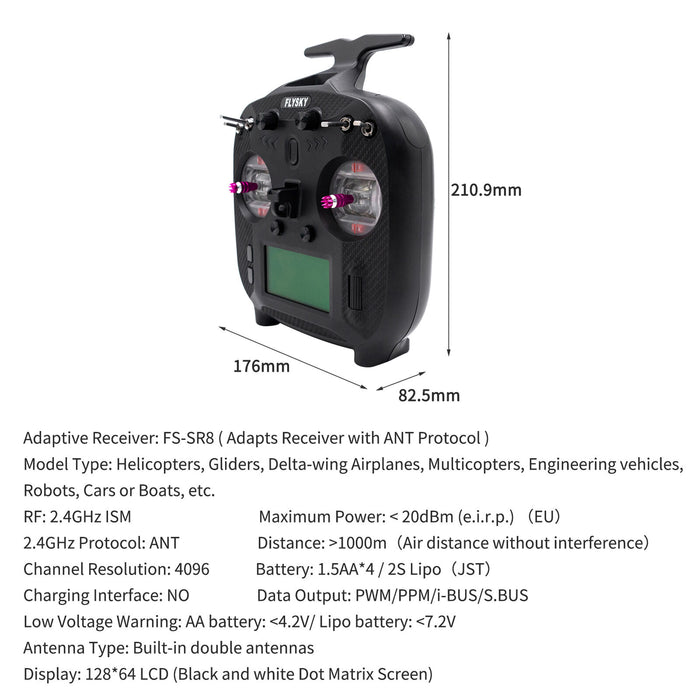

ST8 Dimensions: 176 x 210.9 x 82.5mm
Weight: 420g
Package Information:
Package Size: 23.5 x 25.5 x 9.5cm
Package Weight: 661g
| Transmitter |
| TX Channels: |
8 |
| TX Operating Frequency: |
2.4Ghz |
| Controls Layout: |
Stick |
| Telemetry Capable: |
Yes |
| Programmable Failsafe: |
Yes |

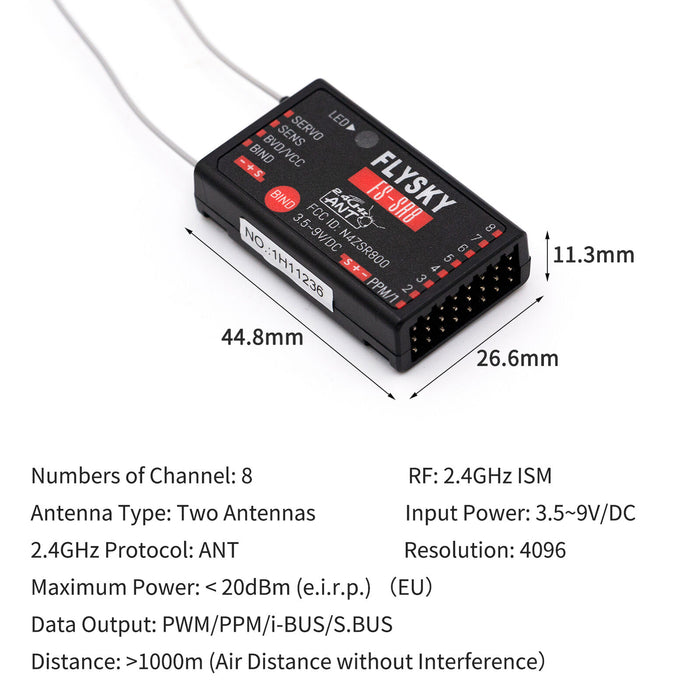

Receiver
Product Model: -SR8
Adaptive : -ST8 (Adapts with Protocol )
Adaptive Models: Helicopters, Gliders, -wing airplanes, Multicopters, , Robots, or Boats, etc.
Numbers of Channel: 8
Maximum : < 20dBm (e.i.r.p.) （）
RF: 2.4GHz ISM
2.4GHz Protocol:
Distance: >1000m (Air Distance without Interference）
Type: Two Antennas
Input : 3.5~9V/
Data Output: PWM/PPM/i-BUS/S.BUS
Online Update: Yes
: -10℃ ~ +60℃
Humidity : 20% ~ 95%
Size: 44.8*26.6*11.3mm
