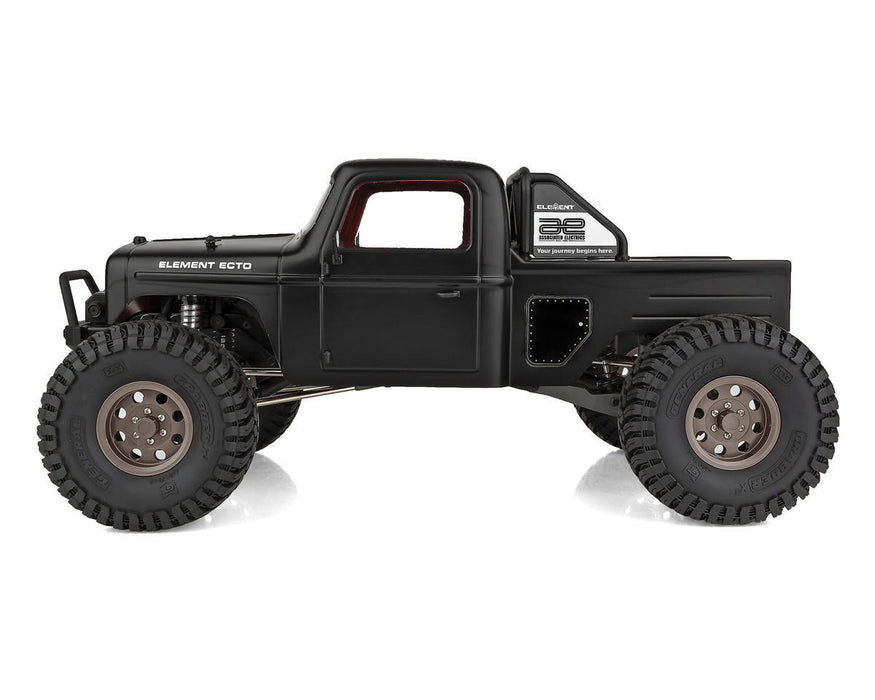

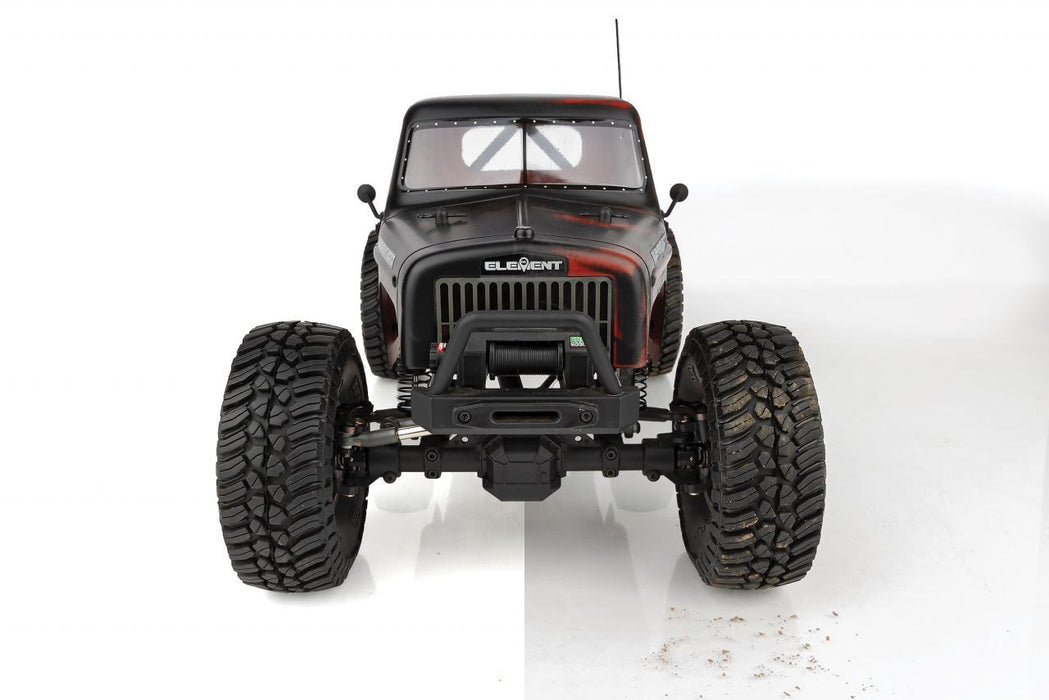

Element RC 1/10 Enduro Ecto Trail Truck 4WD Electric RTR RC Rock Crawler - Black
Element RC 1/10 Enduro Ecto Trail Truck 4WD Electric RTR RC Rock Crawler - Black
Overview
A PERFORMANCE RIG BUILT TO ENDURE
When hitting the trail, you want to do it with performance and confidence. So, Team Associated brings you the Enduro rock crawler!
Aimed towards the serious RC rock crawler enthusiast, the Enduro Trail Truck is packed full of performance features that are sure to impress. Equipped with the Gatekeeper Suspension package (GKSTM), this package consists of rear trailing arms that move the shocks forward, allowing a larger window for shock tuning and providing improved weight bias. The trailing arms are paired with a rear anti-roll bar for a more stable and consistent suspension when crawling on the rocks. An adjustable aluminium track bar mount firmly bolted to the chassis rail gives the Enduro more reliable and responsive steering without the flex. Team Associated shock mount inserts with multiple mounting positions allow for precise suspension tuning, whether you are moving the shocks up, down, forward, or back. The behind-the-axle (BTA) steering link greatly improves approach angle and front-end clearance, making rough terrain much easier to handle. The Stealth X transmission features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR). Feeding the power to the tyres are 3-piece telescopic driveshafts with an extruded aluminium centre section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful and reliable power will not be an issue. With all these amazing features packed in one box, we know the Enduro Trail Truck is a high-performance rock crawling machine that's ready to take on any terrain.
Features
The water-resistant SC480X brushed ESC is specifically programmed for crawling with proportional forward/reverse, dual auxiliary power output leads, LiPo low-voltage cut-off protections, and T-plug connector.
The Reedy Power 5-slot 14-turn brushed 550 crawler motor provides ample torque with a smooth power delivery. This allows for slow precise acceleration while maintaining consistent power over rough terrain and obstacles.

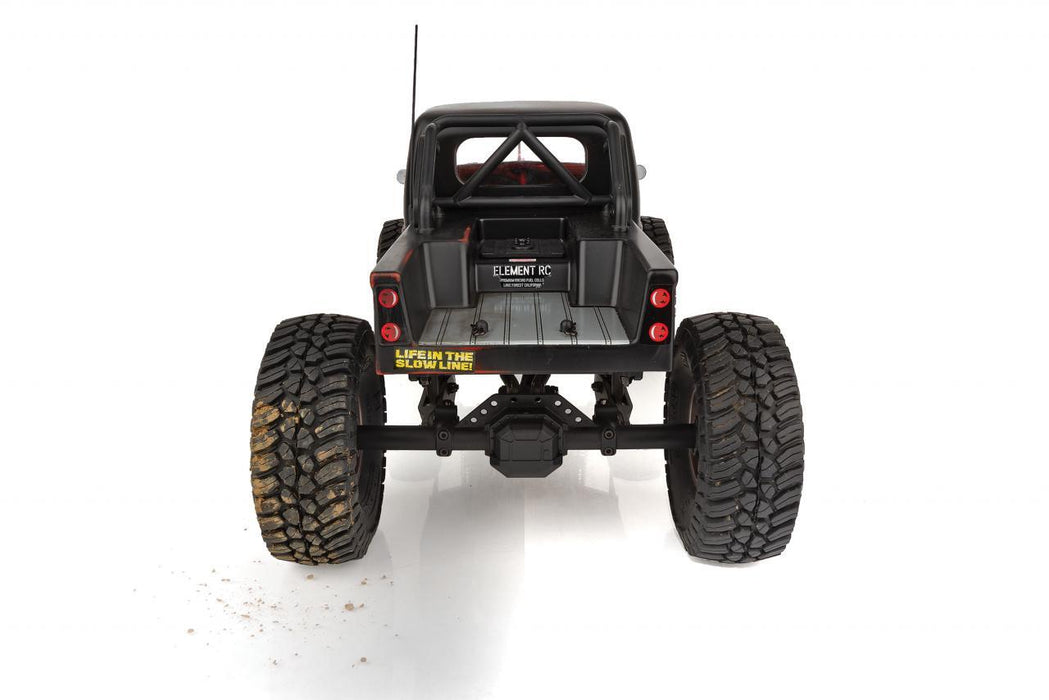

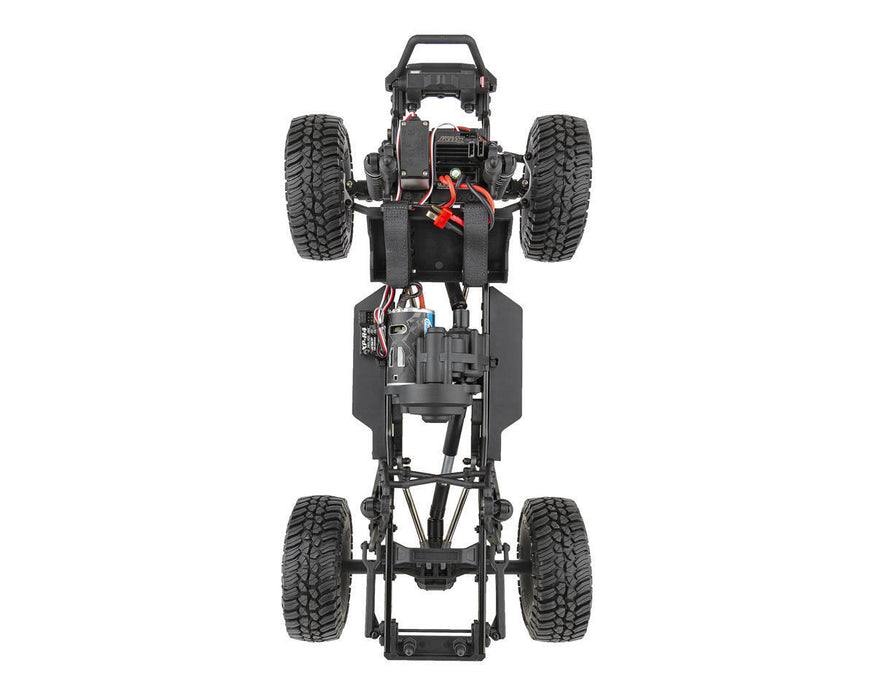

At the heart of the Gatekeeper Suspension (GKS) are the rear trailing arms. This design moves the shocks forward, thus improving weight bias. Because the shock mounting points are farther forward on the lower links and chassis, this allows for a larger window for shock tuning and an optimised anti-roll bar mounting position.
The GKS package includes an aluminium track bar mount bolted directly to the steel frame rail, making the front suspension more rigid and flex-free with a more precise steering feel.
The transmission features the ability to adjust the rear drive ratio independently of the front drive in 3 levels: stock overdrives the front 5.7%, option 1 (not included) is a one-to-one drive ratio and option 2 overdrives the front 11.83%.
GKS shock mount inserts provide drivers with the ability to tune shock angle, droop and vehicle ride height without affecting spring preload.
Features
- Behind-the-axle (BTA) steering w/ Aluminium steering plates
- Integrated servo winch mount
- Universal front drive & one-piece rear axle design
- Splined front axle with adjustable caster
- Telescopic driveshafts front and rear
- Stamped steel frame rails
- Metal pinion & ring gear
- Heavy duty 5mm diameter steel links
- Metal ball bearings included
- Steel 25T servo horn
- Adjustable front track bar
- Adjustable injection-moulded front bumper
- Extruded aluminium driveshaft splines
Additional Body Features
- Green thermoformed polycarbonate body styled after early pickup trucks
- Narrow body design for increased performance and clearance
- Clear windows
- Dropped bed design
- Adjustable injection-molded front bumper
- Injection-molded fairlead
- Injection-molded mock winch
- Injection-molded action cameras and antennas included (not installed)
- Licensed 1.9"x4.65" General GrabberTM X3 tyres
Specifications
- Length: 462mm (18.18in)
- Width: 236mm (9.29in)
- Wheelbase: 325mm (12.8in)
- Weight: varies
- Drivetrain: 4WD
- Power: Electric Brushed
- Chassis: Rock Crawler
- Internal Gear Ratio: varies
- Motor: Reedy Power 5-slot 14-turn Brushed 550 Crawler Motor
- ESC: Reedy SC480X Brushed ESC
Specifications
Car | |
---|---|
Assembly Type: | Ready to Run |
Max LiPo Power: | 2S (7.4v) |
Size (Scale): | 1/10 |
Skill Level: | Beginner |
Power Source: | Electric Brushed |
Chassis Type: | Rock Crawler |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | |
Battery connector: | |
Front shock oil: | |
Rear shock oil: | 30w,350cSt |
Pinion gear: | 18T 48dp/0.5Mod |
Spur gear: | 87T 48dp/0.5Mod |
Wheel hex size: | 12 |
Required items (not included)
- 7.4V LiPo Battery
- Compatible Charger
- 4 x AA Alkaline Batteries for the Transmitter
