Kyosho 1/10 Fazer Mk2 1969 Chevrolet Camaro Z/28 RS Supercharged Brushless Electric On Road SWB RC Car

Sold out
Original price $599.00
Current price $589.00

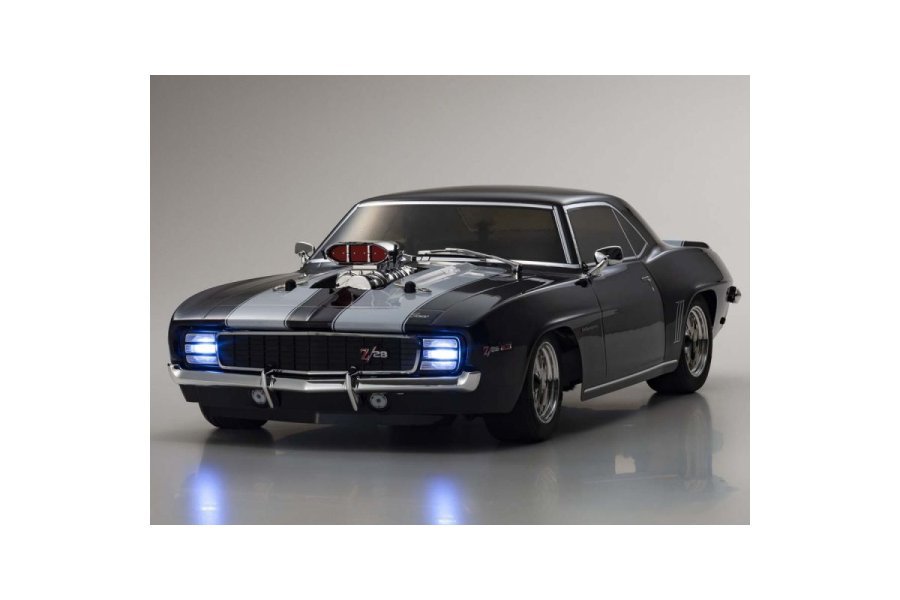

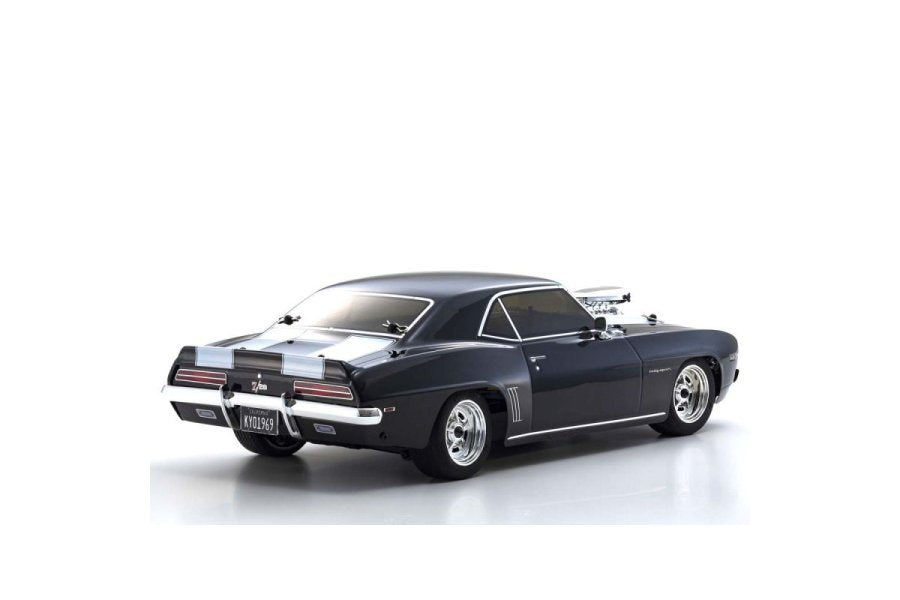

Kyosho 1/10 Fazer Mk2 1969 Chevrolet Camaro Z/28 RS Supercharged Brushless Electric On Road SWB RC Car - Tuxedo Black - 34493T1


With its muscular body and supercharger, this machine makes a visual statement to back up its powerful performance!

The FAZER Mk2 series welcomes this brushless motor addition to the series. Powering up from the conventional G14L brushed motor to the TORX 10E brushless motor, the 1.6 x speed boost delivers 65km/h (up from approx 40 km/h) backed up by the newly incorporated BRAINZ 10 speed controller, sintered pinion gear and aluminium HD centre shaft S (previously an optional upgrade) to support the extra power and higher RPM. This fully upgraded version of the VE specifications boasts an ultra-scale 1969 Chevy® Camaro® Z/28 RS body much loved in America, with a Kyosho designed supercharger, and features light buckets that can be equipped with front and rear LEDs including an open/close function for concealed headlights. Kyosho's original colour scheme pays homage to the rebel image of this machine and this '1969 Chevy® Camaro® Z/28 RS' is packaged as a pre-built Readyset, so it's easy even for beginners to enjoy without delay. Just use your own battery, battery charger and transmitter to experience the first brushless motor-powered model in the VE series!
From its release, the Chevrolet Camaro model defined a new era of American Muscle. This 1969 Z/28RS embodied a 5000cc engine and was equipped with auxiliary lights and headlight covers for rally driving. This model features Kyosho's original supercharger to enhance its formidable appearance.




From its release, the Chevrolet Camaro model defined a new era of American Muscle. This 1969 Z/28RS embodied a 5000cc engine and was equipped with auxiliary lights and headlight covers for rally driving. This model features Kyosho's original supercharger to enhance its formidable appearance.

Features

  • Ultra-scale body specifications feature concealed headlights with open/close function and a Kyosho designed supercharger. In addition to LED compatible headlights, front bumper and front grill.
  • Elevate the scale finish by installing 97054 LED light unit series (sold separately) in the front and rear light buckets.
  • Equipped with high-power TORX 10E motor. In addition, sintered pinion gear (32T) is equipped as standard to reliably transmit the full force from the motor.
  • Waterproof BRAINZ 10 60A ESC with cooling fan provides stable power without heat loss.
  • Equipped with vintage touring car (VTC) tyres with compound optimised for brushless performance, and new colour Rostyle-type rim design to match the classic style of the Dodge Charger.
  • Aluminium centre shaft prevents twist and delivers high-RPM drive. Shaft-driven full-time 4WD touring chassis provides easy handling and is a joy to drive for anyone.
  • Includes advanced functioning KS4031-06W steering servo as standard.
  • Factory-completed Readyset only requires 4 x AA batteries for the transmitter, as well as a charger and battery for the chassis.
  • Full ball bearing specifications reduce drive loss in all drive components.
  • Sealed differential and transmission realise excellent reliability, even in dusty parking lots.
  • Equipped with a plated dummy brake disc and painted brake caliper for an elevated sense of scale.
  • Uses hexagonal button screws throughout. Allows secure tightening torque to be applied and maintenance with fewer tools.
  • Motor mount has mounting holes according to pinion gear, eliminating the need for tricky backlash adjustment. Supports pinions from 29T to 37T.
  • Wide range of optional parts are available to further boost driving performance.

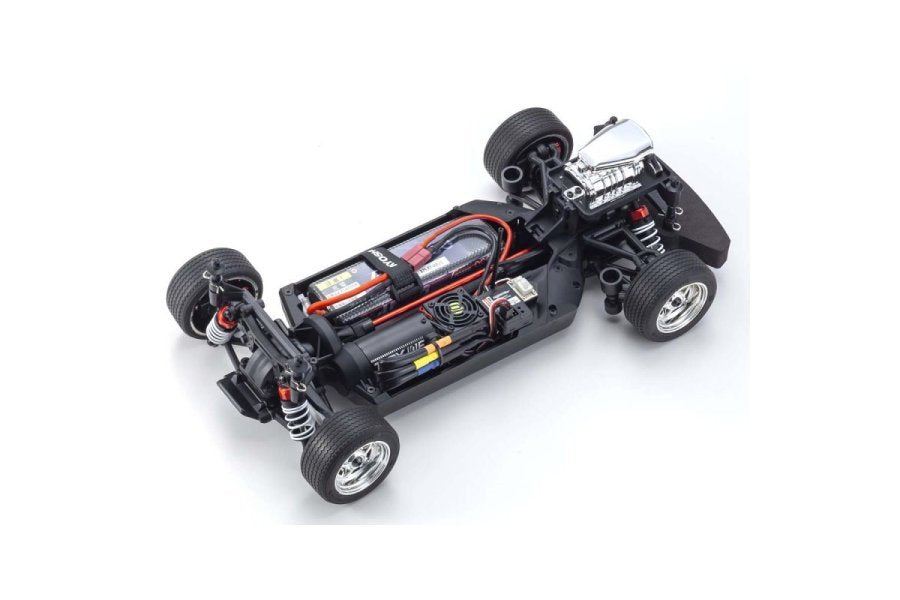

The HD centre shaft S is equipped as standard to prevent twisting and support high-speed performance. The simple and functional main chassis uses lightweight impact-resistant nylon to reduce weight, with an integrated gearbox that optimises torsional rigidity to achieve a low centre of gravity. The simple deckless-upper chassis design provides strength through each component and section.

The HD centre shaft S is equipped as standard to prevent twisting and support high-speed performance. The simple and functional main chassis uses lightweight impact-resistant nylon to reduce weight, with an integrated gearbox that optimises torsional rigidity to achieve a low centre of gravity. The simple deckless-upper chassis design provides strength through each component and section.



Equipped with the advanced functionality of the KS4031-06W steering servo. The front suspension optimises bump steer and scrub radius for improved handling, and features interchangeable front left and front right ball-connected steering knuckles that deliver smooth operation and high crash resistance.

Special AWD Sports chassis is based on Equipped with the advanced functionality of the KS4031-06W steering servo. The front suspension optimises bump steer and scrub radius for improved handling, and features interchangeable front left and front right ball-connected steering knuckles that deliver smooth operation and high crash resistance.

Now including the High-powered TORX 10E brushless motor. The sealed case design prevents foreign objects from entering the motor and gearbox.

Features VCS front suspensNow including the High-powered TORX 10E brushless motor. The sealed case design prevents foreign objects from entering the motor and gearbox.


A Sintered 32T pinion gear is equipped as standard to reliably transfer the high-powered force from the brushless motor. 68T and 32T are standard settings for spur gears and pinion gears respectively, however a total of 9 pinion gear variations from 29T to 37T are available to suit various motors for a wide range of gear ratio settings. In addition, set positioning of the motor according to the number of teeth of the pinion gear reduces problems with backlash adjustment.

Equipped with drift tyres as stA Sintered 32T pinion gear is equipped as standard to reliably transfer the high-powered force from the brushless motor. 68T and 32T are standard settings for spur gears and pinion gears respectively, however a total of 9 pinion gear variations from 29T to 37T are available to suit various motors for a wide range of gear ratio settings. In addition, set positioning of the motor according to the number of teeth of the pinion gear reduces problems with backlash adjustment.



BRAINZ 10 speed controller with cooling fan for brushless motors. Program settings can be changed to suit different conditions, and it's also waterproof, so you can even run through the rain or small puddles.

Equipped with strut-type rear suBRAINZ 10 speed controller with cooling fan for brushless motors. Program settings can be changed to suit different conditions, and it's also waterproof, so you can even run through the rain or small puddles.


Equipped with oil-filled shocks as standard. Vehicle height can be adjusted by changing the included ball ends and spring spacers according to the vehicle type and setting

Newly designed oil-filled shocks mark an evolutionary step from the previous models. Optimal front-rear geometry & balance simultaneously provides tight-handling and precise control.



Features VTA tyres with compound optimised for brushless motor performance in combination with new colour Rostyle style rims.

Equipped with special Features VTA tyres with compound optimised for brushless motor performance in combination with new colour Rostyle style rims.

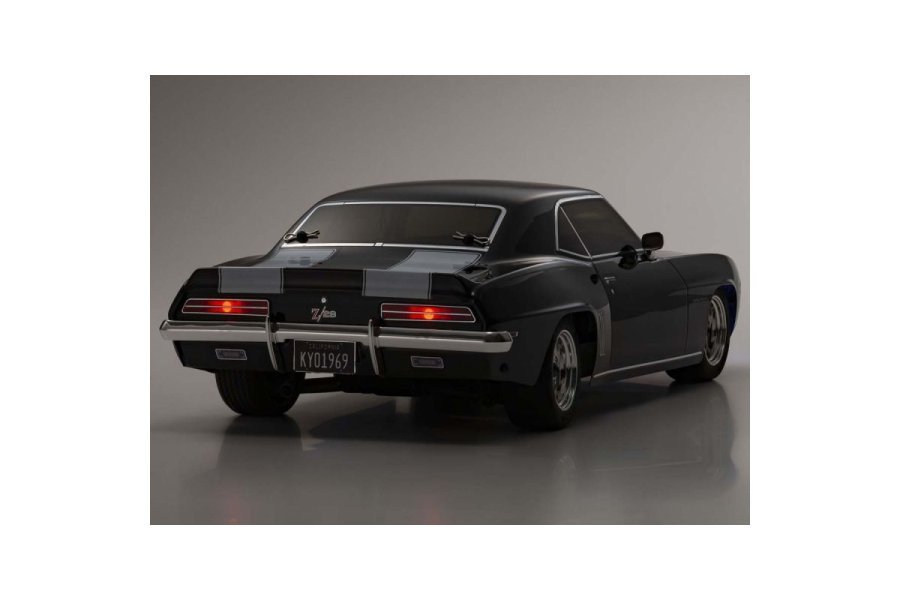

Front and rear light buckets are compatible with the 97054 LED light unit series (sold separately).

Front and rear light buckets are compatible with the 97054 LED light unit series (sold separately).

Specifications

  • Length: 461mm
  • Width: 210mm
  • Height: 138mm
  • Wheelbase: 260mm
  • Tread: (F/R) F:167mm/R:167mm
  • Front Tyres Tread: 167mm
  • Rear Tyres Tread: 167mm
  • Drivetrain: 4WD
  • Gear Ratio: 6.54:1
  • Weight: 1610g approx
  • R/C system: Syncro KT-231P+
  • Motor: TORX10E Brushless
Car
Assembly Type: Ready to Run
Max LiPo Power: 2S (7.4v)
Size (Scale): 1/10
Skill Level: Beginner to Intermediate
Power Source: Electric Brushed
Chassis Type: Car
On/Off Road: On Road
Drivetrain: 4WD
Factory specs
Max LiPo power: 2S (7.4v)
Battery connector: Deans
Pinion gear: 32T
Spur gear: 68T
Wheel hex size: 12

Included items

Description
Completed Chassis
Factory Assembled Body Complete with Colour Scheme
Syncro KT-231P+ Transmitter
Hexagonal Wrench
Spanner
Setting Change Parts


Required items (not included)

  • 7.4v LiPo Battery & Compatible Charger
  • 4 x AA Batteries
