Arrma Mojave 6S BLX 1/7 Desert Truck V2
The Legendary Arrma Mojave 6S BLX Huge 1:7 Scale Desert Truck V2 - ARA7604V2
The 1/7 scale ARRMA MOJAVE 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum SLT3 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.
New ARRMA Mojave BLX 2020 (V5) version! What's new?
- EXB compatible front brace
- Stronger rear brace mount
- Large volume waterproof* receiver box
- +1mm wheel hexes
- Stronger body mounts
- Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
- Spektrum™ SR315 Dual Protocol 3-Channel Receiver
- Spektrum™ S652 Digital Servo
- Spektrum™ Firma™ 150A Smart ESC
- Spektrum™ Firma™ 4074 2050Kv Brushless Motor
Huge 1/7 Scale Bashing
ARRMA engineers have updated the MOJAVE 6S BLX 4WD Desert Truck with a Brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA also includes a new, steel gear Spektrum S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.
The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3 is compatible with Tactic SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT and DSMR protocols, you can easily upgrade to a Spektrum DSMR transmitter later — then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
With the rugged construction of the MOJAVE 6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.
The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.
Multi-terrain dBoots FORTRESS tyres on multi split-spoke wheels give your MOJAVE 6S BLX Desert Truck the grip to get up, over, or through anything in your way.
And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.
The Arrma Mojave 6S Body

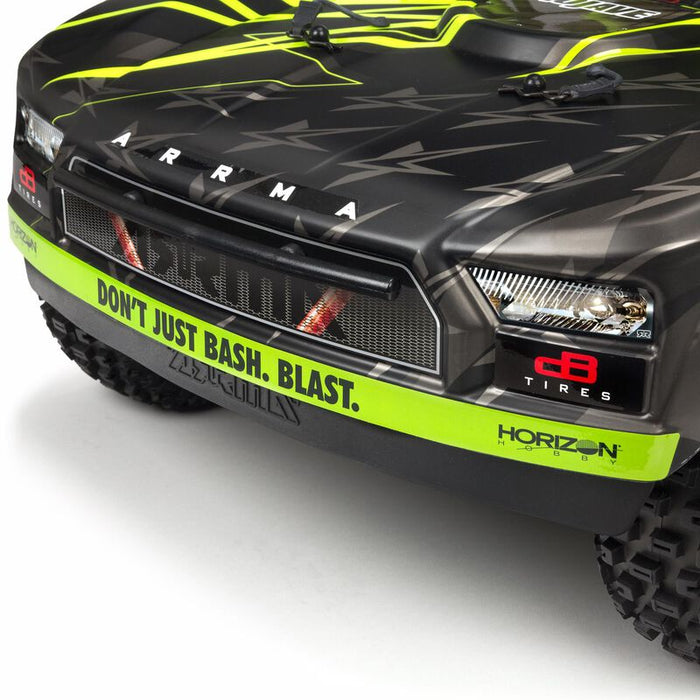

There are very few extreme off-road bashers that try to look realistic, so it’s always appreciated when one does. The Mojave body pulls off the desert truck appearance pretty well, with tons of scale decals and scale details to enhance that appearance, like that hard plastic front tube bumper that pokes through the inside, but it’s only attached to the body. Below the tube bumper sits the actual bumper, half-hidden behind the body, and the remaining piece sitting below. It’s actually a flexible rubber piece, so it maintains the bumper look while being flexible to not dig into the surface.
The interior piece of the body is pretty slick, too, using a lexan piece attached from the inside, with roll bar tubing used on the bottom and the top, to safely sandwich the interior in place, and it is secured in there very well. This interior piece has two little guys, their seats, the steering wheel, and a dash all molded into it, then painted black, with more decals added.
The back has more details, including rear window venting to allow airflow, decals for fire extinguishers, a rear axle, and spare gas cans. One of the best and most useful details is the hard plastic skid plates found on the roof, so if you flip, you're sliding on those and not the body. They are also replaceable when they wear out.
Features
- Updated with Spektrum components and Smart compatible
- 60+ MPH (97km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the optional pinion gear included
- EXB compatible front brace
- Large volume waterproof receiver box
- Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
- Ready-to-run
- Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
- Spektrum™ SR315 Dual Protocol 3-Channel Receiver
- Spektrum™ S652 Digital Servo
- Spektrum™ Firma™ 150A Smart ESC
- Spektrum™ Firma™ 4074 2050Kv Brushless Motor
- EXB compatible front brace
- Stronger rear brace mount
- Large volume waterproof* receiver box
- +1mm wheel hexes
- Stronger body mounts
- Anodized aluminium chassis
- Strong composite chassis side pods
- Centre brace for maximum durability
- Centre roll hoop interfaces with body roll cage for enhanced body durability
- Nerf bars for body and side impact support
- Realistic front and rear bumper protection
- Independent suspension for superior handling
- Flexible front bumper valance
- Heavy-duty suspension arms with red-anodized aluminium strengthening cap
- Oil-filled adjustable shocks
- Black-anodized aluminium front and rear shock towers
- Durable steel driveshafts throughout
- Heavy-duty drivetrain
- All-metal diff outdrives and gearbox internals
- Never-loose red aluminium servo saver
- Never-pop ball ends
- 5-Bolt centre diff removal
- Easy-access sliding motor mount for quick motor removal
- Super-durable wheel hubs for increased strength
- Colour-coordinated multi split-spoke wheels
- Multi-terrain dBoots® FORTRESS™ tyres
- Multi-finish matte and gloss body
- Realistic cockpit detail
- Ultradetailed decals
- Colour coordinated protective roll cage and roof rails
- IC5® connectors (EC5™ compatible)
How fast is the Arrma Mojave 6S BLX
For top speeds with a fresh 6S battery, the truck has been tested as is, straight out of the box, and it quickly achieved 53MPH.
After removing the stock pinion gear from the motor and replacing it with the high-speed pinion gear that’s included, recharged the battery, and when tried again, the truck went screaming by at 62MPH (over 100 Km/h).
The truck is also compatible with a 4S LiPo use. It’s not extremely fast, but it’s still fast, and the benefit is reduced wear on the drive train, and 4S batteries cost less, about a $80 difference in the case of these 6800mAh Gens Ace Bashing Pro batteries that we’re using. Speed runs on 4S LiPo power are still respectable, achieving 37 mph on the stock pinion gear and 45 MPH with the high-speed gearing. After the speed runs, reinstall the stock pinion gear, so you are ready to bash, and use the 6S LiPo to do it.
Included items
- ARRMA MOJAVE 6S BLX 1/7 Desert Truck RTR
- Spektrum Firma 150A Smart 4S/6S ESC (installed)
- Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA Heatsink (installed)
- Spektrum S652 Metal-Geared Digital Servo (installed)
- Spektrum SR315 3-Channel Dual Protocol Receiver (installed)
- Spektrum SLT3 2.4GHz 3-Channel Radio
- Product Manual
Required items not included
- 4S or 6S LiPo Battery
- LiPo Compatible Charger
- LiPo Charging Bag
- AA Batteries x 4
Specifications
- Length: 715mm (28.15")
- Width: 355mm (13.98")
- Height: 269mm (10.59")
- Weight: 5400g (11.14lbs)
- Wheel Base: 420mm (16.53")
- Ground Clearance: 47mm (2.27")
- Drivetrain: 4WD
Car | |
---|---|
Assembly Type: | Ready to Run |
Max LiPo Power: | 6S (22.2v) |
Size (Scale): | 1/7 |
Skill Level: | Expert |
Power Source: | Electric Brushless |
Chassis Type: | Short Course |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | 6S (22.2v) |
Battery connector: | IC5 |
Front shock oil: | 550cSt |
Rear shock oil: | 550cSt |
Front differential oil: | 10,000w |
Centre differential oil: | 100,000w |
Rear differential oil: | 10,000w |
Pinion gear: | 16T 1Mod |
Spur gear: | 50T 1Mod |
Wheel hex size: | 17mm |
