ARRMA 1/7 LIMITLESS Speed Roller RC On Road Car

Sale
Original price $695.00
Current price $689.00

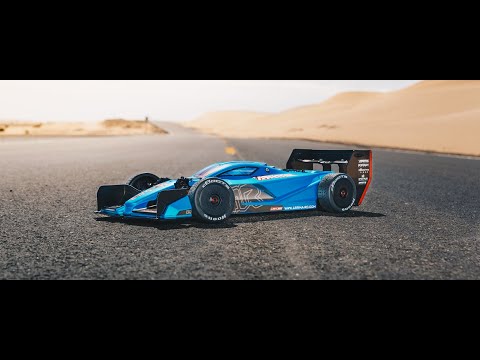

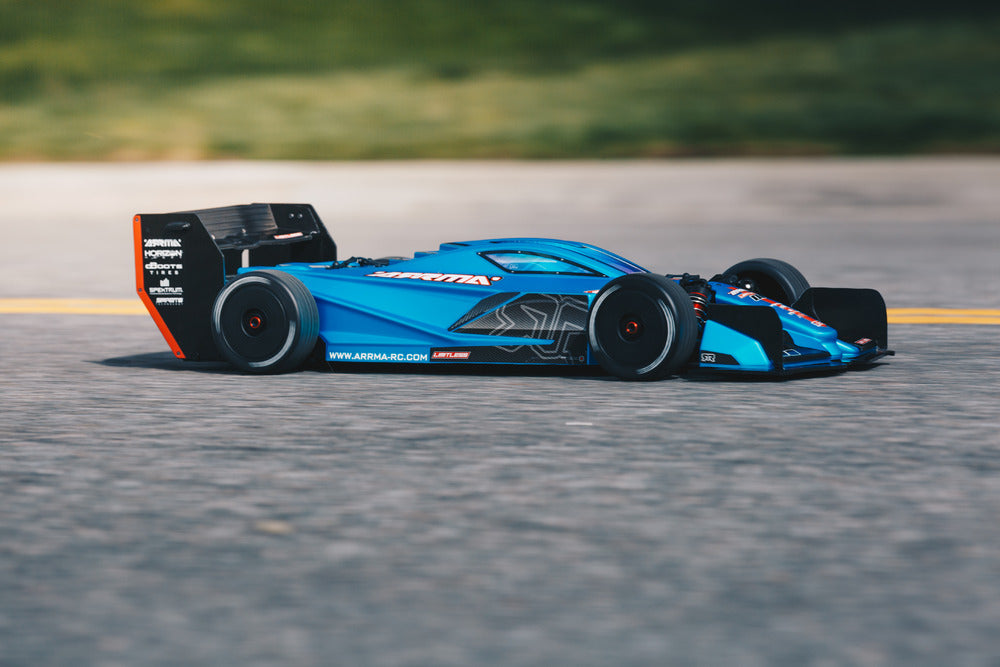

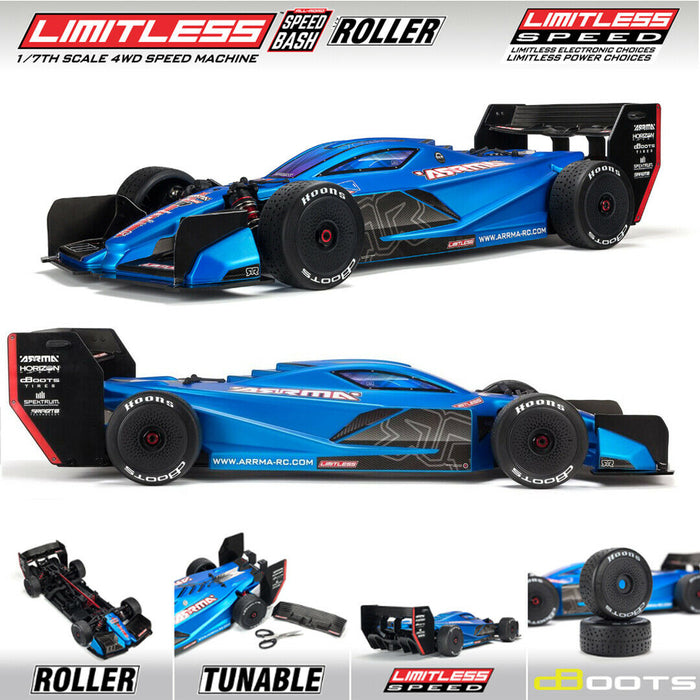

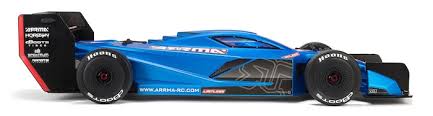

ARRMA 1/7 LIMITLESS Speed Roller RC On Road Car

New ARRMA LIMITLESS Roller Speed Chassis. Recommended only for the experts!

ARRMA LIMITLESS 1/7 4WD Speed Bash Roller [VIDEO] - RC Car Action

ARRMA unveils the 1/7 scale LIMITLESS 4WD roller — the first speed basher in their lineup of fast, tough RC vehicles. Drivers can use their experience and equipment of choice to customize the LIMITLESS for extreme speed and power.
Arrma Limitless Speed Bash Roller C-ARA109011
The LIMITLESS Speed Basher excels on all roads, in all conditions: on loose gravel, asphalt, or short grass, and in the sun, rain, or even ice. It’s bash-hardened and fully customizable, allowing you to tune the aerodynamic balance just how you want it.

The ARRMA Limitless was designed for the intermediate to Advanced RC driver. It’s great for someone who is looking to build their own speed run vehicle.

In addition to the low drag LIMITLESS body, which comes already trimmed and decaled, ARRMA have included front and rear wings that can be customized to tailor the downforce to your preference. To further enhance the aerodynamics, the chassis design includes a front splitter to balance downforce distribution and a rear diffuser that increases downforce and grip, enabling you to corner faster and with confidence.

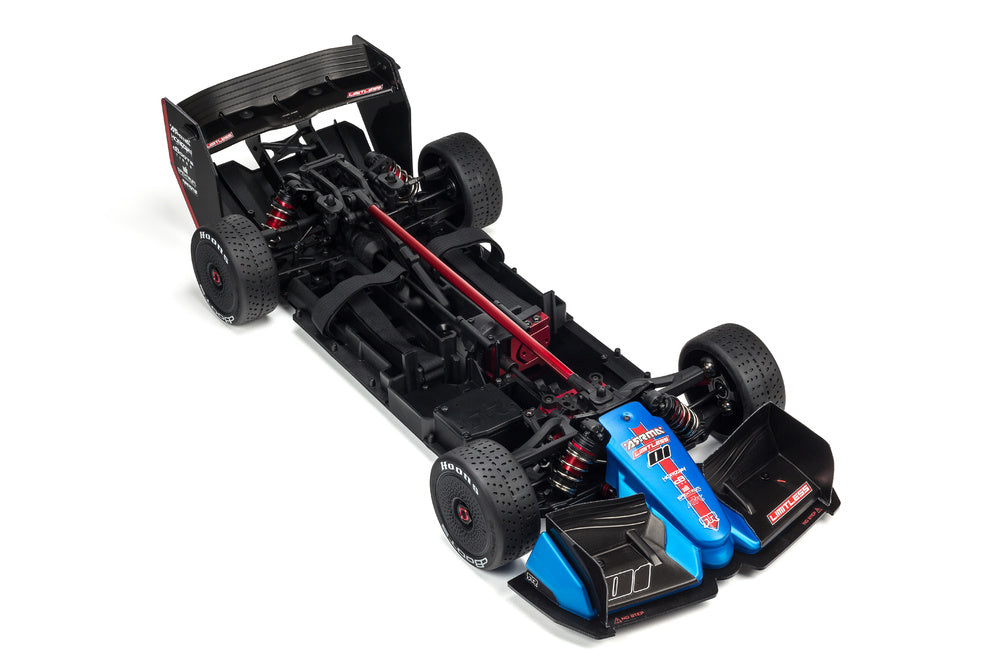

DESIGNED FAST, DESIGNED TOUGH — underneath the aerodynamically engineered body is a 3mm anodized aluminum chassis with a center brace for maximum strength. The heavy-duty 4X4 drivetrain features durable steel drive shafts plus all-metal diff outdrives and gearbox internals. The diff module can be removed by taking out just four bolts, making maintenance as speedy as the LIMITLESS roller itself. A sliding mount makes motor access quick and easy, too.
Big bore oil-filled shocks on black-anodized front and rear shock towers keep the dBoots Hoons all-road tires firmly planted for maximum traction. The tires are mounted on speed wheels with extra-durable hubs.

Features

  • LIMITLESS 4WD is the first ever ARRMA street basher.
  • As a roller, the LIMITLESS 4WD lets intermediate to advanced drivers customize their machine for as much speed and power as their skills and budgets allow.
  • The LIMITLESS 4WD is a speed basher that lives up the ARRMA promise of being "DESIGNED FAST and DESIGNED TOUGH."
  • Low drag body comes screen printed, trimmed and decaled
  • Customizable front and rear wings allow you to tune down force and drag just how you want it
  • Full width front splitter balances front vs. rear distribution of down force
  • Rear diffuser helps generate down force
  • Designed to easily handle triple digit speeds
  • 3mm plate, 6061T6 anodized aluminum chassis
  • Center chassis brace for maximum durability
  • Adjustable front and rear body mounts
  • Easy access sliding motor mount for quick motor removal
  • Dual XL battery trays
  • Waterproof receiver box
  • Heavy duty servo saver
  • Heavy duty 4X4 drivetrain
  • Durable steel drive shafts
  • All metal diff outdrives and gearbox internals
  • Easy access diff module with 4 bolt center diff removal
  • Independent suspension
  • Big bore aluminum oil filled shocks
  • Black anodized aluminum front and rear shock towers
  • Speed Wheels and allroad dBoots Hoons tires tested to withstand speeds in excess of 150 mph
  • Super durable wheel hubs for strength
  • Hub nut Orings

Specifications

  • Length: 730mm (28.74")
  • Width: 308mm (12.13")
  • Height: 165mm (6.5")
  • Weight: 3.9kg (8.10lbs) (without battery)
  • Wheelbase: 406mm (15.98")
  • Ground Clearance: 15mm (0.59")
  • Drivetrain: 4WD

ARRMA 1/7 LIMITLESS All-Road Speed Bash: Roller | Tower Hobbies

Required items (not included)

  • Transmitter
  • Receiver
  • ESC
  • Motor
  • Steering Servo
  • 2x 7.4v or 11.1v LiPo batteries (LiPo Batteries within dimensions 180x55x70mm)
  • Charger

Full Factory Specifications:

VEHICLE NAME LIMITLESS SPEED BASH 1/7TH SCALE ALL-ROAD SPEED MACHINE
SCALE 1/7
POWER LEVEL Roller
MAIN BODYSHELL IDENTITY COLOR BLUE
MAX SPEED POSSIBLE 100+mph / 160+km/h
POWER TYPE Brushless
BUILD STATUS ROLLER
SPEED WITH RECOMMENDED BATTERY (MPH) 100+mph / 160+km/h
MANUFACTURER MODEL IDENTIFIER ARA109011
SALEABLE PART # ARA109011
HORIZON HOBBY SALEABLE PART # ARA109011
BUILD CONFIGURATION OPTIONS Mid Motor
DRIVE TYPE 4WD
VEHICLE TYPE Speed Machine
SURFACE All-road
LENGTH 730mm / 28.74"
WHEELBASE 406mm / 15.98"
RIDE HEIGHT 15mm / 0.59"
FRONT WIDTH 308mm / 12.13"
REAR WIDTH 305mm / 12.01"
HEIGHT 165mm / 6.5"
BODY LENGTH 526mm / 20.71"
BODY WIDTH 274mm / 10.79"
BODY HEIGHT 117mm / 4.61"
WHEELIE BAR FITTED No
FRONT SPRING RATE 4.70N/mm
REAR SPRING RATE 6.60N/mm
CAPTURED HINGEPINS Yes
TURNBUCKLES/FIXED LINKS Turnbuckles
HARDWARE TYPE Hex Head
LOCKING DIFFS No
DIFFERENTIAL TYPE Gear
NUMBER OF DIFFERENTIALS 2
STANDARD SHOCK OIL (VISCOSITY) 2000cSt
STANDARD DIFF OIL (VISCOSITY) 10,000cSt
STANDARD SHOCK OIL (TYPE) Silicone
STANDARD DIFF OIL (TYPE) Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION 43T 0.9m
DIFFERENTIAL PINION GEAR SPECIFICIATION 13T 0.9m
INTERNAL GEAR RATIO 3.31
INTERNAL GEAR MATERIAL Metal
FITTED SPUR SIZE 34Tooth
FITTED SPUR MATERIAL Metal
FITTED PINION GEAR SIZE 27Tooth
FITTED PINION MATERIAL Metal
PINION AND SPUR TOOTH PITCH 1m
FINAL GEAR RATIO RANGE 2.13 - 5.86
TIRES INCLUDED Yes
TIRE DIAMETER 100mm / 3.94"
DRIVESHAFT TYPE CVD Front/Dogbone Rear
WHEEL BEAD DIAMETER 75mm Outer, 83mm Innermm / 2.95"
WHEEL HEX SIZE 17mm
WHEEL COLOR/FINISH Black
MOUNTED TIRES Yes
TIRE ATTACHMENT METHOD Glued
SERVO HORN MATERIAL Metal
SERVO SPLINE SIZE 25T
BATTERY RECOMMENDATIONS 2 x LiPo Batteries within dimensions 180x55x70mm
BATTERY MAX DIMENSIONS 180x55x70mm / 7.09x2.17x2.76"
CHASSIS MATERIAL 3mm Plate, 6061-T6 Aluminum
TRIMMED BODY Yes
BODY-ON BATTERY ACCESS No
BODY PIN RETAINERS Yes
WARRANTY LEVEL 2 Year Limited
REQUIRED ITEMS ESC, Motor, Radio Gear, Servo, Batteries, Charger, LiPo Charging Bag
TORQUE SPLIT 50/50
TOOLS INCLUDED Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 3.0, 5.0mm)
MODEL PRODUCTION YEAR 2019
WEIGHT (ROLLING CHASSIS) 3.9kg / 8lbs 10oz
