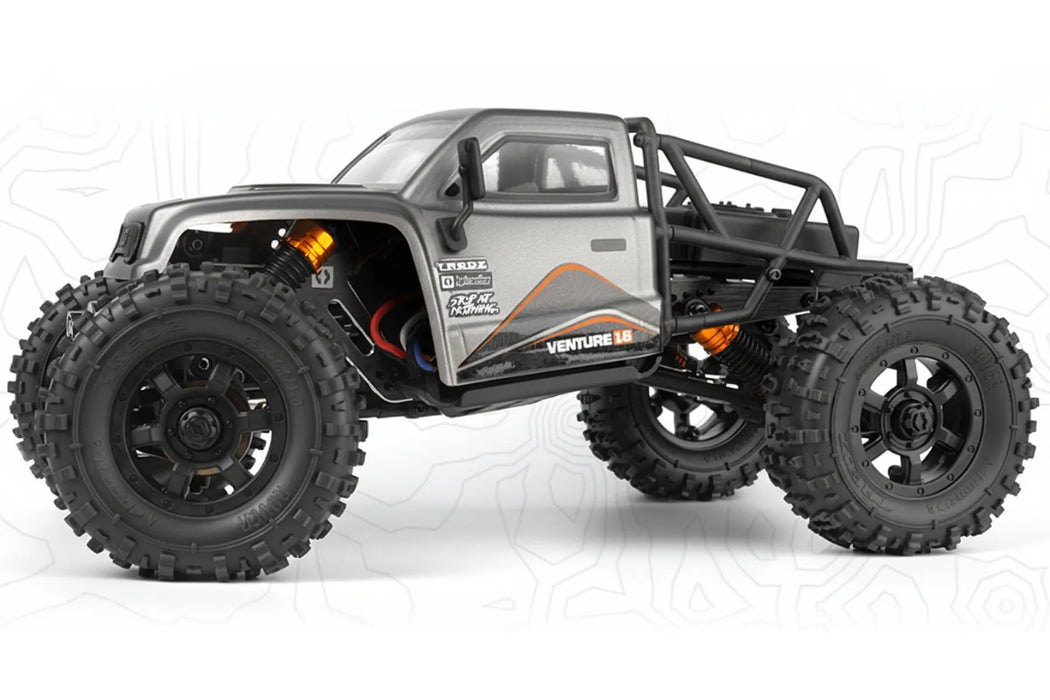

All New HPI Venture18 CC Flux Electric Brushless 4WD 1/18 Scale RC Competition Crawler
HPI Venture18 CC Flux RC Competition Rock Crawler - Electric Brushless 4WD 1/18 Scale
Overview
Get ready for serious crawling performance in a compact package with the HPI Venture18 CC.
This isn't just a mini crawler; it's a competition-focused machine built on the proven Venture18 platform, refined in every aspect for maximum capability on any terrain. From its rigid aluminium chassis to its unique half-DIG transmission, this little truck is engineered to tackle the toughest lines!
- Get Competition Spec Performance In Mini Scale
- Lock The Rear Axle Remotely With The Half-DIG Transmission
- Improved Climbing With Front Overdrive Gearing
- Lower Centre Of Gravity with Included Brass Weights
- Comes Ready To Run With A 3S LiPo Included
Description
The Venture18 CC is packed with features. A centre servo operates the half-DIG, allowing you to lock the rear axle on demand for tighter turns and precise pivoting on rocks. The drivetrain includes front overdrive gearing for improved climbing, while brass components like beadlock rings and front hex weights are fitted as standard to lower the centre of gravity and increase forward weight bias. Combined with super-sticky ROVER 1.3" Pink Dot tyres on beadlock wheels, this crawler has incredible grip and stability.

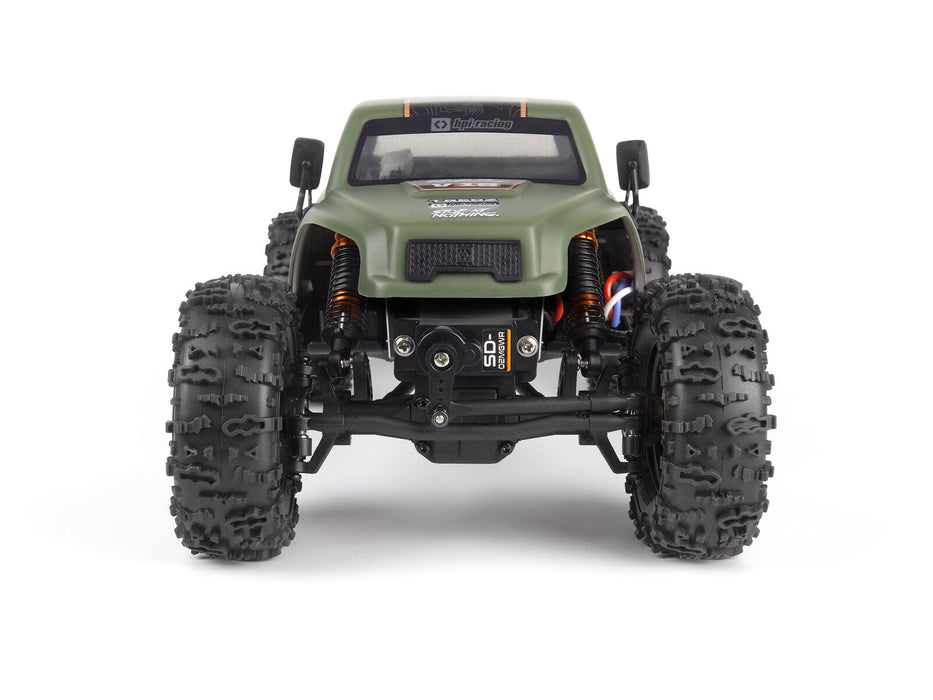

Topping it all off is a stunningly detailed Ridgeline Half Cab body with a clipless mounting system for easy access. It comes pre-painted in either Matte Green or Gunmetal and features scale details like mirrors, a grille, and a tube-style half cage. The Venture18 CC comes fully Ready-To-Run (RTR) with a powerful 3S (3-cell, 11.1V) LiPo battery and USB charger included, making it the perfect choice for anyone wanting serious crawling performance straight out of the box.
HPI Racing Teases the Venture 18CC
Now being teased by HPI Racing is the Venture 18CC scale rock crawler. The HPI Racing crew first teased the Venture 18CC at the NHRSA show in Vegas a couple of weeks ago (early October 2025) and now we are getting closer to its full release date. The “CC” in the name stand for “Competition Crawler”, as this version of the Venture comes with loaded features for the hardcore user.
"Big Capability, Small Footprint – Built to Conquer.."
Meet the Venture18 CC – your ultimate mini crawler, built for true crawling performance. Based on the proven Venture18 platform, the CC refines every aspect for serious off-road capability.
A rigid 2mm aluminium chassis, centre servo-operated half-DIG transmission, smoothed underside, front overdrive gearing, and added low-mounted brass components all work together to deliver impressive control and traction in a compact package.
Paired with a fully detailed Ridgeline Half Cab body and ROVER 1.3" Pink Dot tires, it’s ready to tackle technical terrain right out of the box. The clipless polycarbonate body comes pre-painted in your choice of Matte Green or Gunmetal, and features clear windows, scale accents like a detailed grille, functional mirrors, and a tube-style half cage with rear tank.
With no front or rear bumpers to get in the way, nothing stands between this machine and the next obstacle.
The Venture18 CC comes fully Ready-to-Run (RTR) with a 360mAh 11.1V LiPo battery and a USB balance charger, so you can hit the trails straight away. It’s more than just a mini crawler – it’s a compact vehicle built for freedom, fun, and serious adventure.
Gear up, hit the trails, and let your adVenture begin!
Features
- Factory-assembled & pre-painted electric-powered full-time 4WD 1/18 scale off-road truck
- Hand-painted polycarbonate Ridgeline Half Cab Bodyshell
- Clipless body mounting
- 2.0mm Machined Aluminium chassis rails
- Front universal driveshafts
- All-metal gear drivetrain for extreme durability
- Steel Telescopic universal driveshafts to front and rear differentials
- Locked differentials for superb off-road climbing traction
- 7mm hex hubs (+4mm) to fit a wide variety of available crawler wheels
- Brass front Hex hubs
- Shock mounting points have multiple shock mounting positions
- Oil-filled aluminium-capped coilover shock absorbers
- Adjustable threaded shock bodies for quick ride height changes
- AMS (Axle Mounted Servo)
- All-terrain ROVER 1.3 inch Pink dot S-Compound tires
- Beadlock CC-6 1.3 inch wheels with Brass beadlock weights all round.
- HPI FLX18-1621-3500KV OUTRUNNER MOTOR
- HPI FLX18-3S25-WP-C 25A electronic speed control
- HPI water-resistant SD-02MGWR metal geared steering servo
- HPI TF-706 2.4GHz radio system with thumbstick control
- Includes 360mAh 11.1V LiPo battery and USB charger
- Only requires 4 AA batteries for radio transmitter
CLIPLESS BODY MOUNTING SYSTEM
Say goodbye to the hassle of traditional body clips! The Venture18 Clipless Body Mounting System offers a seamless, secure, and efficient solution for mounting and removing the body. Designed for ease of use and built to last, this system eliminates the need for messy clips that can get lost or break during extended trailing sessions. With a single twist-lock mechanism and a front hinge, you’ll enjoy quick access to the chassis and effortless battery swaps, making your Venture18 experience smoother and more enjoyable than ever.

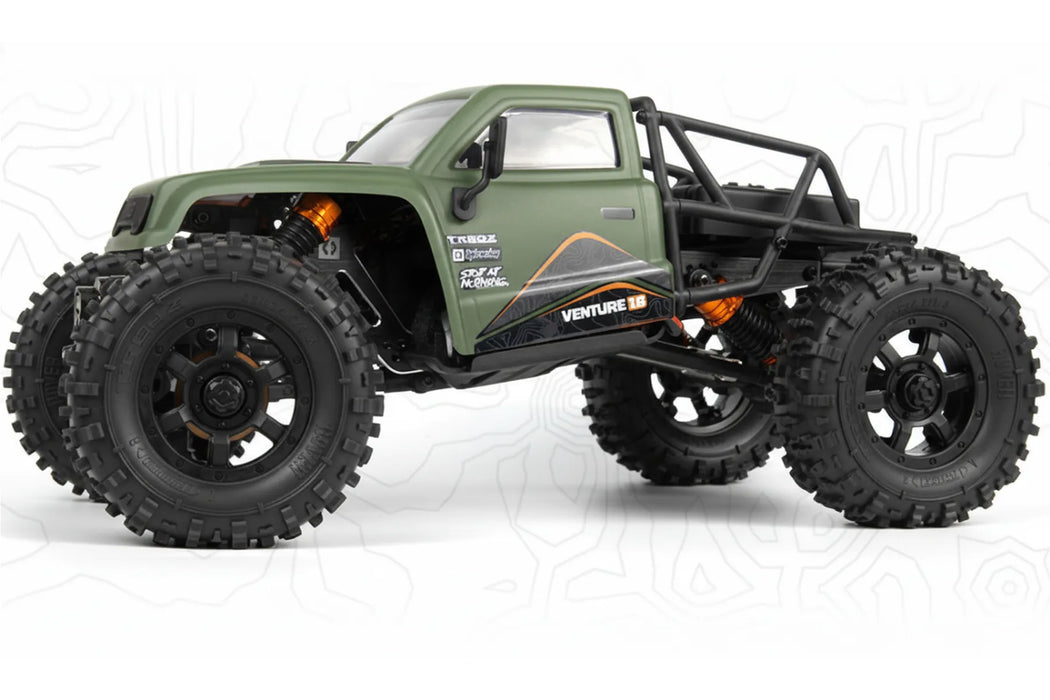

FULLY DETAILED BODY
The Venture18 CC features a meticulously crafted Ridgeline Half Cab body, designed to impress with its detailed realism and rugged style. Highlights like the grille, mirrors, rear roll cage, and tank add to its authentic appearance and enhance the overall aesthetic, making your Venture18 CC stand out in any setting.
Molded from high-strength polycarbonate, the Ridgeline body is built to withstand tough rollovers as you tackle steeper, more challenging lines that once seemed impossible.
ROCK RAIL SLIDERS
The Venture18 CC features an all-new undercarriage, including redesigned smooth rock sliders (or rock rails) and a central skid plate. These components help the CC glide over obstacles that are just a bit too tall to clear completely, enhancing off-road performance while protecting the body from scrapes caused by rocks, roots, and other terrain hazards. Ingeniously, they also serve as trays for the battery and electronics, keeping the centre of gravity as low as possible for improved stability.
ROVER 1.3" OFF-ROAD Tires on CC-6 Beadlock WHEELS
The Venture18 CC marks the return of a fan-favourite crawler tire—now in a 1.3-inch size! Molded in the same super-sticky Pink Dot rubber as the popular 1.9” and 2.2” versions, these tires feature a mix of lug sizes across the tread face, with patterns that extend onto the sidewalls for improved traction on challenging terrain like moss-covered rocks and slick roots.
They're mounted on stylish black CC-6 1.3-inch, 3-piece beadlock wheels, complete with center hub caps that conceal the steel wheel locknuts for maximum scale realism. For added performance, each wheel includes a brass inner beadlock ring as standard, helping to lower the centre of gravity and improve stability.
COUNTER-ROTATING DRIVELINE
The Venture18 CC features Steel counter-rotating telescopic centre driveshafts with universal joints at both ends for super-smooth power transmission to the front and rear axles. This virtually eliminates torque-twist on the chassis when the truck is powering up tough inclines!
CENTRE SERVO OPERATED HALF-DIG TRANSMISSION
The Venture18 CC features a centre servo-operated half-DIG transmission that allows you to disengage rear-wheel drive, at the press of a button, sending power only to the front wheels. This enables tighter turning, sharper pivots, and improved manoeuvrability on technical terrain—perfect for repositioning the truck during challenging climbs or navigating tight switchbacks with precision. It's a simple but powerful tool that gives drivers an edge when tackling complex lines or recovering from awkward angles.
The low gearing boasts an impressive final drive ratio of 81.44:1, providing exceptional slow-speed crawling capabilities for those tight, technical trails and obstacles.
LOW CENTER OF GRAVITY
The Venture18 CC is built around a robust all-metal transmission, making it not only incredibly durable and brushless-ready but also engineered for a super-low centre of gravity to enhance stability on technical terrain.
At the axles, the rear features a metal 11-tooth pinion and 28-tooth ring gear, while the front is equipped with an overdrive setup using a 13-tooth pinion and 26-tooth ring gear housed in the centre "pumpkin" of the axle.
-
Master the Climbs: The overdrive increases the rotational speed of the front wheels, providing a significant advantage on steep ascents and making tough climbs feel easier.
-
Sharper Steering: Improved front-end grip delivers tighter, more responsive steering—perfect for navigating tricky lines and technical trails.
To further enhance performance, we've added 7mm front axle +4mm hub weights in addition to the brass bead lock rings. This increases the forward weight bias, giving the Venture18 CC the edge it needs to conquer even the most challenging climbs.
AXLE MOUNTED STEERING SERVO
The Venture18 CC features a strong, high-torque 1.5kg metal-geared micro steering servo. The axle mounted servo allows the Venture18 CC to go exactly where you want it with precise steering control, and the extra weight over the front axle helps the truck get over tough obstacles!
45 DEGREE STEERING ANGLE
The Venture18 CC steering setup and front universal driveshafts give the truck and impressive 45 degrees of steering angle out of the box, so you don't have to do any complicated modifications to get maximum performance on the trail.

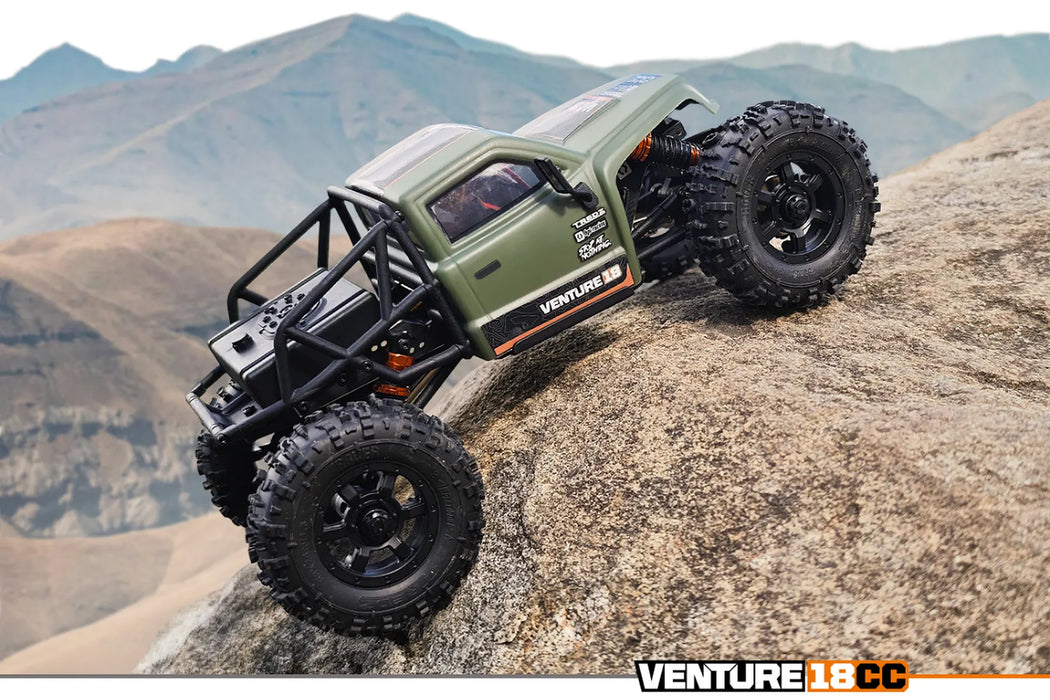

Maximized Clearance Angles
The Venture18 chassis is loaded with potential, making it extremely versatile on the trail and up tough climbing routes. Its capability lies in several factors, including off-road friendly clearance angles from the tire contact points to the bumpers and chassis, as well as good ground clearance thanks to its minimal diff case size.
- Centre skid angle: 10 deg
- Approach angle: 90 deg
- Departure angle: 90 deg
- Max climb angle: 75 deg
- Max tilt angle: 54 deg
- Axle articulation: 30.0 deg
- Ground clearance 35.5mm Front - 41mm Rear
- Axle ground clearance 20mm
REALISTIC SUSPENSION AND HANDLING
The Venture18’s CC suspension setups has been altered to give the very best clearance – and it looks just like the real thing while driving! There’s no unrealistic bouncing or springing here! Thanks to its scaled-down suspension taking from real off-road machines, plus perfect positioning of components like the steering servo, transmission and electronics, you'll be able to take your adVenture just about anywhere!

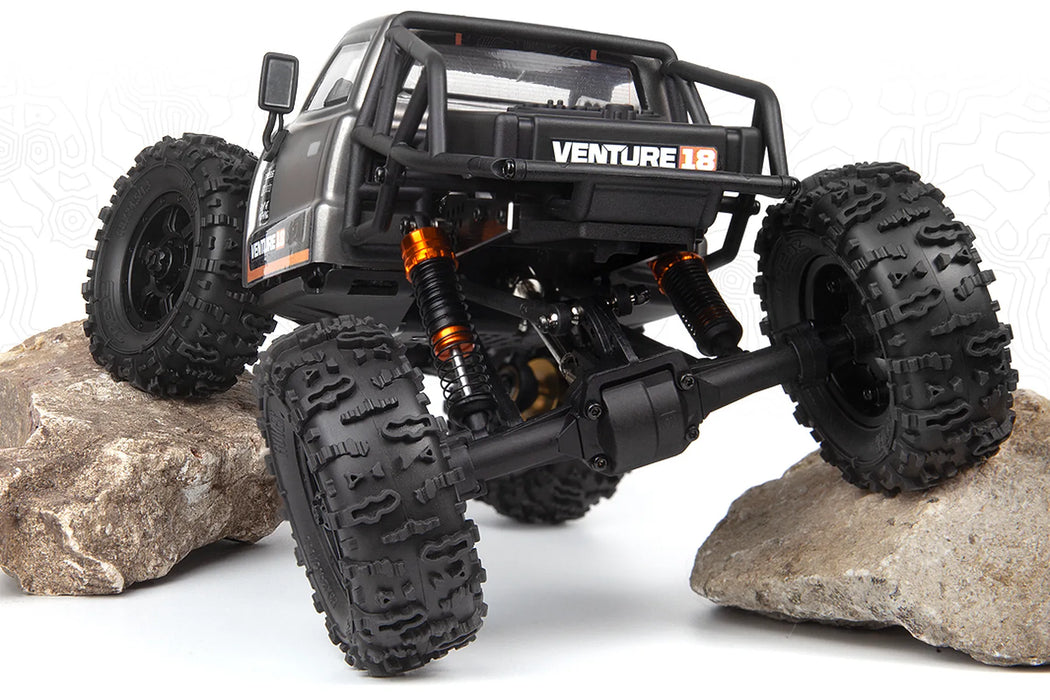

STRAIGHT AXLES
The Venture18CC, just like classic off-roaders, is equipped with straight axles both front and rear, providing exceptional power delivery when you need it most. These rugged axles ensure that each tire operates with full-time 4WD, maximizing grip and traction on any surface.
With an impressive axle articulation of 30 degrees, the Venture18 CC can easily conquer large obstacles while keeping all four wheels firmly planted on the ground.
MULTI-LINK SUSPENSION
The Venture18 CC features a sturdy and reliable High-Clearance 4-link suspension front and at the rear. 4mm composite rod links with integrated ball links form the lower and upper suspension links front and rear.
V2 OIL-FILLED COILOVER SHOCKS
For ultimate Crawling tuning, the Venture18 CC features aluminium-capped oil-filled threaded body shock absorbers with a new lower threaded aluminum seal cap and soft springs that will easily handle the gentle bumps and dips you encounter while driving, as well as the harder hits that come with off-road trailing!
The new CC geometry allows for a softer initial suspension response and allows the suspension to articulate more smoothly and absorb obstacles rather than lifting the chassis unnecessarily.

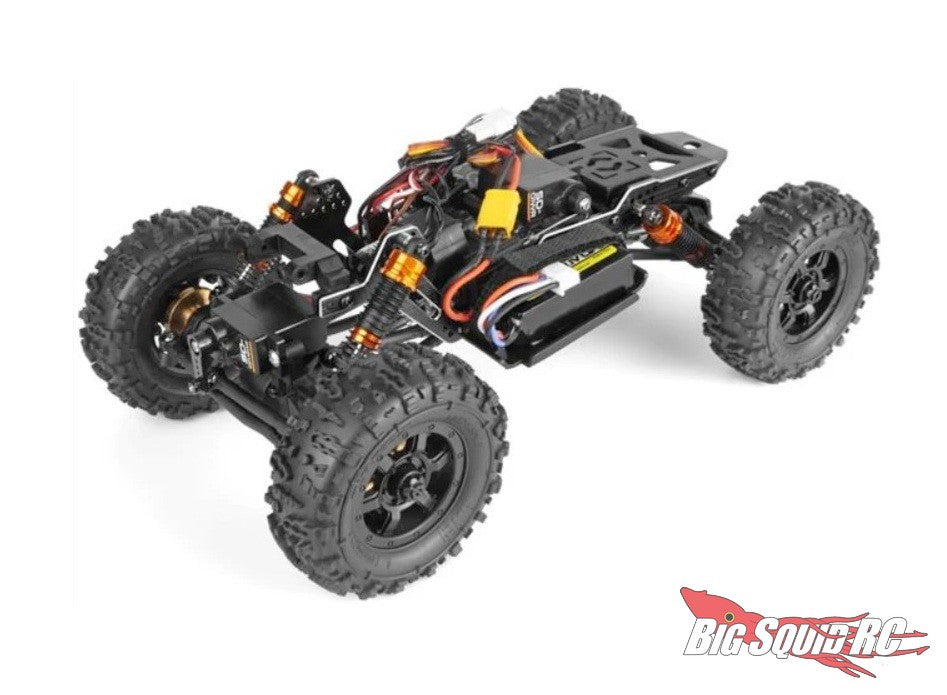

2.0mm MACHINED ALUMINUM
CHASSIS RAILS
The Venture18 CC is built for performance, featuring a 2.0mm Machined Aluminium chassis design. This offers the best performance-focused crawling where low weight, low centre of gravity, and stiffness matter most. They provide the solid foundation your truck needs to tackle any terrain.
The black finish and machined detail adds to the Venture18 CC's premium finish.
FLX-183S25-WP-C FLUX ESC
The Venture18 CC is equipped with a highly versatile FLX18-3S25-WP-C waterproof electronic speed controller, which is packed with a full range of adjustments and capabilities. The FLX18-3S25-WP-C is compatible with 2-3S LiPo and packs a lot of punch into something only 13g in weight. Adjustable drag brake on the fly using the Aux channel.
The FLX18-3S25-WP-C is compatible with the Hobbywing LED program card (available separately) which lets you customize multiple parameters, including voltage cut-off, motor rotation, and drag brake.
METAL-GEARED SD-02MGWR STEERING SERVO
The water-resistant HPI SD-02MGWR steering servo is the ideal companion for the Venture18 electronics package. This is a high torque servo with up to 1.5kg-cm holding power at 6V, plus it's water-resistant so it can easily handle splashes and water drops when driving through puddles, snow and mud. Mounted directly to the axle, it provides extra weight over the front axle to enhance the front weight bias of the Venture18.
- Operating Voltage: 4.8-6V
- 6V: Speed: 0.15 sec/60 degrees, Torque: 1.5kg-cm
- Servo Spline: 40T
TF-706 2.4GHz RADIO SYSTEM
The Venture18 CC comes equipped with the cutting-edge TF-706 radio system, the latest addition to the HPI-Racing steering wheel and pistol grip lineup. This fully-featured, ultra-lightweight 2.4GHz 6-channel radio is designed for precision and control, offering complete adjustability to suit your driving style. You can also select the different light options on the Venture18, using the channel 3 button on the grip!
For added versatility, the TF-706 includes a thumb stick option, enabling one-handed driving - perfect for when you need to keep a hand free for filming, or photos or even a drink!
FLX18-1621-3500KV OUTRUNNER MOTOR
The FLX18-1621-3500KV 12-Pole Hi-Torque Brushless Outrunner Motor is the heart of your Venture18 CC’s powerhouse performance. Engineered for precision and power, this high-performance motor delivers a smooth feel across both low and high RPM ranges, ensuring seamless power delivery with every twist of the throttle. Thanks to its advanced 12-pole design, whether you're crawling over rugged terrain or powering through challenging trails, this motor gives you the ultimate edge.
Comprehensive Instruction Manual
All HPI Racing kits include a detailed multi-language instruction manual. It features exploded diagrams with part numbers, parts lists, radio and speed control setup information and everything you need to know about your Venture18 to ensure that you have the know-how when it comes to maintaining and upgrading your kit. You can also download a digital version of the manual to your personal electronic device and keep it with you for easy reference on the go

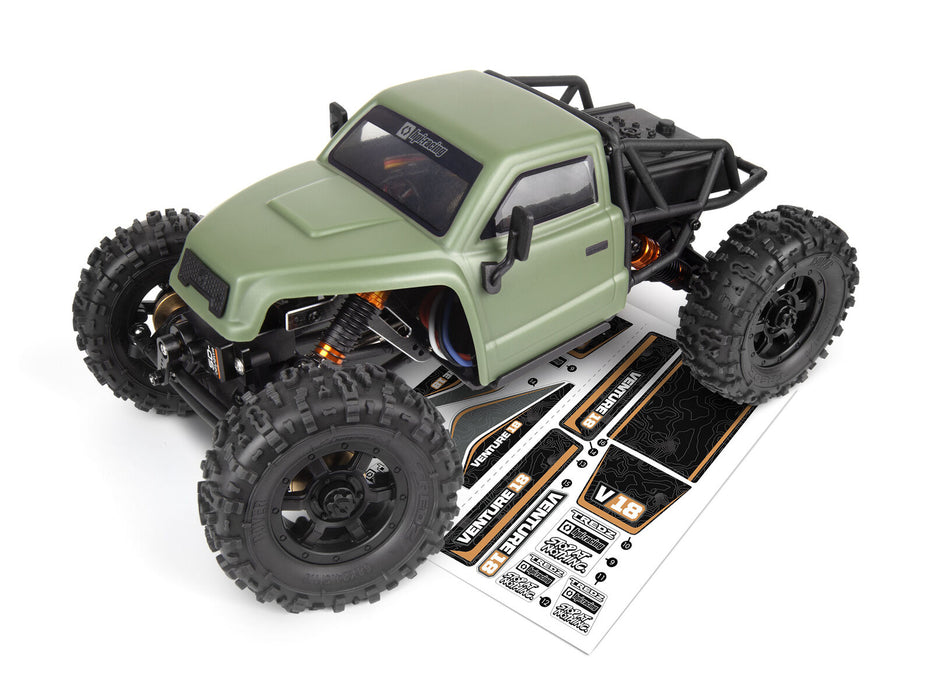

Pick Your Final Look
The Venture18 CC comes with a decal set that allows you to choose your final look. With two different livery designs included, you can easily add your favourite scheme to the pre-prepared body shell
Easy Access With Clip-Free Body
Say goodbye to small, lost clips with the Clipless Body Mounting System. A single twist-lock and front hinge provide secure, quick access for quick and easy battery swaps
Built Tough To Look Great
The Venture18 CC features a stunning Ridgeline Half Cab body, which is crafted for a detailed, realistic, and rugged style. Highlights like the grille, mirrors, rear roll cage, and tank make it look the part on the trail. Moulded from high-strength polycarbonate, this body is also built to withstand the toughest rollovers
Improved Stability And Protection
The Venture18 CC (Competition Crawler) is built with redesigned smooth rock sliders (or rock rails) and a central skid plate to improve stability. These parts cleverly double as trays for the battery and electronics, keeping the centre of gravity (CG) as low as possible. This design ensures better performance and protects the body from terrain hazards
Super-Sticky Tyres For Maximum Grip
The fan-favourite Rover crawler tyre makes a return in a new 33mm size, moulded in super-sticky Pink Dot rubber. These tyres feature aggressive lug patterns that extend onto the sidewalls for grip on moss-covered rocks and slick roots. They are mounted on stylish black CC-6 beadlock wheels for maximum off-road performance
Half-DIG Transmission
The Venture18 CC (Competition Crawler) features a centre servo-operated half-DIG (Digital Integrated Gearing) transmission. At the press of a button, you can disengage rear-wheel drive, sending power only to the front wheels. This simple but powerful tool allows for tighter turning and precision repositioning on difficult climbs
Specifications
- Length: 230mm (9.1")
- Width: 134mm (5.3")
- Height: 103mm (4.1")
- Wheelbase: 162mm (6.4")
- Weight: 0.505kg (1.11 lbs)
- Chassis: 2.0mm (0.1") Machined Aluminum
- Drivetrain: 4WD
- Suspension: High-Clearance 4-Link Front Rear Suspension System, Oil-Filled Aluminum-Capped Coilover Shock Absorbers
- Motor: HPI FLX18-1621-3500KV Brushless Outrunner Motor
- ESC: HPI FLX18-3S25-WP-C 25A Electronic Speed Control
Included Items
- 1x HPI Venture18 CC Flux Competition Crawler RTR
- 1x TF-706 2.4GHz Transmitter
- 1x 11.1V 360mAh 3S LiPo Battery
- 1x USB Balance Charger
- 1x Decal Sheet
Digital Instruction Manuals - available here
WHAT YOU NEED
- 4 x AA Batteries for the Transmitter
