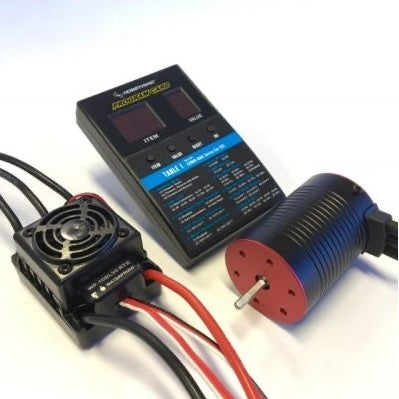

Hobbywing Ace Power 3652 3250Kv Brushless Motor and 50A ESC Combo - HWAP50BL3250
The perfect 1/10th combo to upgrade your car to Brushless power!
50 amp waterproof electronic speed control fitted with Deans style T plug to battery and bullet plugs to motor. The motor is a 3250KV 36x52mm 540 size brushless (sensorless) motor with bullets fitted. Combo also includes program card. Combo is designed for 2-3s Lipo or 6-8 cell NiMh/Nicad.
ESC FEATURES:
-
External programming port, easy to connect to the LED Program Card when setting the ESC
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
ECS SPECS:
|
Model / SKU
|
QUICRUN-WP-10BL60 / 30107100
|
|
Cont./Peak Current/ Resistance
|
60A/360A/0.001Ω |
| Motor Type Supported | Sensorless Brushless Motor |
| Car Applicable | 1:10 On-road/Off-road/Buggy/Monster |
| Motor Limit |
For 2S Lipo or 6 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<6000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000 For 3S Lipo or 9 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<4000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000 |
| Battery |
4-9 Cells NiMH
2-3S Lipo |
| BEC Output | 6V/2A (Linear Mode) |
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 11.1 |
| Continuous Amps: | 50 |
| Motor Connectors: | 4mm Bullet |
| Battery Connector: | Deans |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | Yes |
| Cooling Method: | Fan |
| BEC Voltage: | 6 |
| Dual Motor: | No |
| Motor | |
|---|---|
| Motor Type: | Brushless |
| Can Length (mm): | 52 |
| Can Diameter (mm): | 36 |
| KV (RPM/V): | 3250 |
| Shaft Diameter (mm): | 3.175 (1/8") |
