Traxxas XRT Ultimate 8S RC Truggy Electric Brushless 4WD 1/6 Scale RTR - 78097-4

Traxxas XRT Ultimate 8S RC Truggy Electric Brushless 4WD 1/6 Scale RTR - 78097-4

by technohobbies.com.au
Sold out
$2,899.00

All New Traxxas XRT 8S RC Truggy Electric Brushless 1/6 Scale - RTR

Limited Stocks Arriving in November! Pre order one today! Price may change on arrival.

XRT UltimateOverview

The Traxxas XRT Ultimate is the pinnacle of RC performance, an 8S race Truggy loaded with factory-installed aluminium upgrades and belted tyres.

  • 96+ km/h (60+ mph) with 8S Velineon brushless power

  • Includes over $1,000 of factory-installed aluminium upgrades

  • Belted Gravix tyres for high-speed grip and stability

  • Upgraded 46.8kg-cm (650oz-in) high-torque servo

  • Built for expert drivers wanting to push the limits

Description

The Traxxas XRT Ultimate represents the pinnacle of the X-Truck platform, engineered for maximum strength, precision, and performance. This is not a standard truck; it's a special edition that comes factory-equipped with over $1,000 in high-strength aluminium upgrades and performance parts, creating the most durable truck Traxxas has ever offered. The massive 8S Velineon brushless power system pushes the XRT Ultimate to speeds over 100 km/h, while the included Traxxas Link Wireless Module allows you to monitor real-time telemetry data like speed and RPM directly on your mobile device.

Every aspect of the XRT Ultimate is focused on high-performance handling and durability. The belted Gravix race tyres have an internal webbing that prevents them from ballooning at high speeds, ensuring a consistent contact patch for predictable grip. An immensely powerful, upgraded 46.8kg-cm (650oz-in) metal-geared servo provides complete steering authority, even under the most demanding conditions. This is complemented by premium components like the GTX aluminium shocks, WideMaxx suspension, and an ultra-low centre of gravity chassis that all contribute to its sharp, race-truck handling. The XRT Ultimate is the definitive choice for experienced drivers who demand the very best in speed, strength, and precision.

Features

Upgraded Aluminium Performance Components

The XRT receives substantial aluminium upgrades in key areas like the suspension, chassis, and drivetrain. These strong metal parts improve high-speed stability and precision, creating a highly durable truck built to handle the demands of 8S power. It's engineered for strength and long-lasting performance

Traxxas Link™ Wireless Module Included

A Traxxas Link™ Wireless Module comes standard to access the truck's on-board telemetry. Using the free Traxxas Link app on your mobile device, you can make micro-adjustments to the transmitter and view real-time data like speed, motor RPM, and battery voltage while you drive

High-Traction Belted Gravix® Race Tyres

The XRT's belted Gravix® race tyres offer dependable performance on and off the track. The directional tread provides excellent traction and runs quieter than typical off-road tyres. Internal belting maintains the tyre's shape at high speeds for a larger contact patch, more grip, and responsive handling

High-Torque, Metal-Geared Steering Servo

With over 46kg-cm (650oz-in) of torque and full steel gears, the High-Torque Maxx Servo gives the XRT complete steering authority. The servo case features an anodised aluminium centre section with cooling fins and uses ball bearings for increased precision, ensuring responsive steering even with the wide Gravix tyres

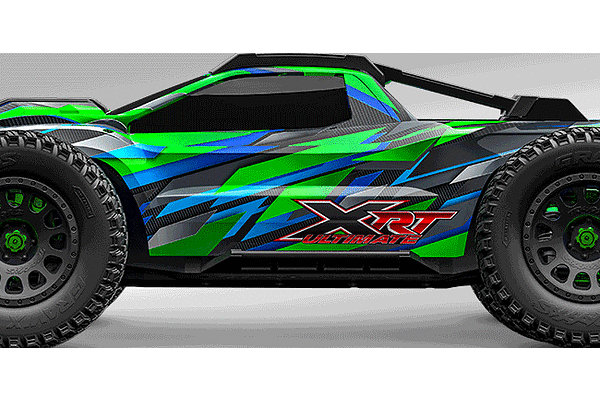

Unique ProGraphix® Body with Internal Frame

The XRT features a unique body and graphics to set it apart. For added protection during rollovers, it includes tough body reinforcements and a rigid internal frame. This extra support helps keep the body looking fresh for longer, even after intense bashing sessions

Feature Summary

  • Ready-to-Race with over $1,000 in factory-installed upgrades

  • 8S Velineon brushless power for 96+ km/h (60+ mph) speeds

  • Belted Gravix race tyres to eliminate high-speed ballooning

  • Upgraded 46.8kg-cm (650oz-in) high-torque metal-geared servo

  • Extensive 6061-T6 aluminium upgrades throughout the chassis

  • Traxxas Link Wireless Module and telemetry sensors included

  • GTX aluminium oil-filled shocks and WideMaxx suspension

  • Traxxas Stability Management (TSM) for improved control

  • X-Maxx spec 8s drivetrain with Torque-Biasing Centre Drive

  • Genuine Traxxas Product


New Features and Upgrades

  • High-Performance Aluminium Upgrades
    • 6061-T6 aluminium C-hubs
    • 6061-T6 aluminium steering blocks
    • 6061-T6 aluminium rear hub carriers
    • 6061-T6 aluminium differential housings
    • 6061-T6 aluminium motor mounts
  • VXL-8s™ Waterproof Electronic Speed Control
    • New aggressive tune for more power at any RPM
    • Integrated cooling fan
    • 3-LED status indicators
    • Machined heat sink
    • Powered accessory ports
    • 10-gauge silicone wire
    • Integrated protection circuits
  • Velineon® 1200XL Brushless Motor
    • 4-pole 1275 Kv
    • 5 mm output shaft
    • Oversize aluminium heatsink for improved cooling
    • Dual cooling fans
  • Up to 60+ mph with Two 4s LiPo Batteries (sold separately)
  • Traxxas Stability Management®
    • Improves straight line acceleration and braking on low-traction surfaces
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz 2-Channel Radio System with Factory-Installed Wireless Module
    • Factory-installed telemetry sensors
    • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Patented waterproof receiver box with easy-access plug
  • X-Maxx® Spec 8s Drivetrain
    • Machined, hardened steel pinion and spur gear
    • Full-time shaft-driven 4-wheel drive
    • Heavy-duty steel CV driveshafts with laser etching
    • Splined aluminium centre driveshaft
    • Machined aluminium stub axles
    • Beefed-up steel differential output cups
  • Transmission
    • Mod-1 pinion and spur gears
    • Torque-Biasing Centre Drive
  • Maxx® Spec Differentials
    • Heavy-duty sealed 4-gear design
    • Large scale steel ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
  • Rock-Solid Motor Mounting System
    • Rigid aluminium motor mounts
    • Precise preset gear mesh adjustments
    • 4 keyed pins lock the motor in place
    • Motor retention separate from gear mesh
  • GTX™ Aluminium Race Shocks
    • Machined aluminium threaded body
    • Extra-large bore and capacity
    • Ultra-smooth TiN-coated 5.2 mm damper shafts
    • Lower seal cartridge includes integrated wiper seal combination
    • Aluminium upper spring retainers
    • Aluminium shock caps with pivot balls
    • Lower spring perches bolted on
  • WideMaxx® Suspension
    • Extra-wide suspension arms
      • Made from our strongest cold-weather material
    • Double-shear connections
    • High-strength steel suspension pins with retainers
    • 4 mm machined pivot balls
    • TUBES 7075-T6 Aluminium front toe links
    • Oversized wheel bearings
  • Steering
    • 6061-T6 aluminium steering bellcranks
    • 2085RL high-output metal-gear steering servo
      • 650 oz-in torque at 6.0 volts
      • 0.13 sec/60° at 6.0 volts
      • Double-shear aluminium servo horn
      • Heavy-duty servo saver spring
      • Dirt evacuation channels
  • Ultra-Low-CG Chassis Design
    • Modular chassis with interlocking bulkheads
      • Low centre of gravity for improved handling
      • Flat bottom design
      • Heavy-duty interlocking skid plates
      • High-strength buttressing on shock towers
    • Dual snap-lock battery compartments
      • Protects batteries from side impacts
      • Allows secondary battery-clip security
    • Interlocking components for tight tolerances
  • ProGraphix® Clipless Body
    • Snaps in place in just seconds
    • Secure body latches are easy to use
    • Clipless body mounting system
    • Rigid internal frame
    • Dual high-capacity cooling ducts
    • Molded body reinforcements for tear-through protection
    • Protective top skids
    • Rugged high-downforce rear wing
  • Heavy-duty Bumpers
    • Reinforced front bumper and rear wing support
      • Absorb impact forces while retaining shape
    • Heavy-duty front bumper and support
    • Reinforced rear wing support
    • Nerf bars for side impact resistance
    • Heavy-duty wheelie bar with carry handle
  • Wheels and Tyres
    • 7.4″ Gravix™ belted race tires
      • Belted carcass virtually eliminates ballooning at high speed
      • Low sidewall for sharp turn-in response
      • Runs quieter than traditional off-road tires
    • 3.8″ matte black XRT race wheels
    • High-strength glue and bead design
    • Huge 24 mm splined wheel hubs
  • Sealed Ball Bearings
  • Hex hardware with Rust-Resistant Black Oxide Coating

 Specifications

  • Length: 798mm (31.41")

  • Width: 595mm (23.43")

  • Height: 258mm (10.15")

  • Wheelbase: 480mm (18.9")

  • Weight: 9.79kg (21.55lbs)

  • Chassis: Ultra-Low-CG Modular Composite

  • Suspension: WideMaxx Independent with GTX Shocks

  • Drivetrain: 4WD Shaft-Driven

  • Motor: Velineon 1200XL Brushless

  • ESC: Velineon VXL-8s Brushless

MODEL SPECS

Model Name: XRT Ultimate
Model Type: Monster Truck
Top Speed: 60+ mph with dual 4s LiPo batteries and optional gearing (sold separately)
Skill Level: 5
Scale: X-Truck™
Weight: 21.55 pounds (9.79 kg)
Length: 31.41 inches (798 mm)
Width: 23.43 inches (595 mm)
Front Track: 23.43 inches (595 mm)
Track: 23.43 inches (595 mm)
Height: 10.15 inches (258 mm)


MOTOR SPECS

Motor Name: Velineon® 1200XL
Motor Type: 1275 Kv sensorless brushless
Motor Weight: 23.44 ounces (665 g)
Motor Length: 4.32 inches (110 mm)
Motor Diameter: 1.88 inches (48 mm)
Motor Shaft Size: 5 mm
Motor Connector Type: 6.5 mm bullet connectors


ESC SPECS

ESC Name: Velineon® VXL-8s
ESC Type: Brushless
ESC Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight: 7.60 ounces (215.5 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
ESC Power Wire: 10 gauge Maxx® Cable


TRAXXAS LINK

Wirelessly adjust your transmitter settings and receive real-time telemetry from your model with Traxxas Link.


Traxxas Link Screens
Traxxas Link

UNLOCK THE FULL POTENTIAL OF YOUR TRAXXAS TQi™ RADIO SYSTEM

  • SEE REAL-TIME TELEMETRY

    View and record speed, temperature, and voltage data while you drive

  • CONTROL YOUR TRANSMITTER SETTINGS

    Make tuning adjustments on the fly and save your favorite settings

  • MANAGE YOUR MODELS AND PROFILES

    Save individual setting and tuning data for up to 30 different vehicles

LEARN MORE
Available on the App Store
Android App on Google Play

Included Items

  • 1x Traxxas XRT Ultimate 1/6 8S Race Truggy RTR

  • 1x TQi 2.4GHz Radio with Wireless Module Installed

  • 1x Quick Start Guide

  • 1x Set of High-Quality Maintenance Tools

Required Items

  • 2 x Compatible 4S 14.8V LiPo Batteries with high current connectors
  • LiPo Dual Battery Charger
  • 4 x AA Batteries for the Transmitter

Note

  • Speeds of 100+ km/h (60+ mph) require dual 4S LiPo batteries and optional gearing.

  • The included electronics are waterproof. Please refer to the manual for full details.

  • This is a high-performance vehicle recommended for expert drivers only.
