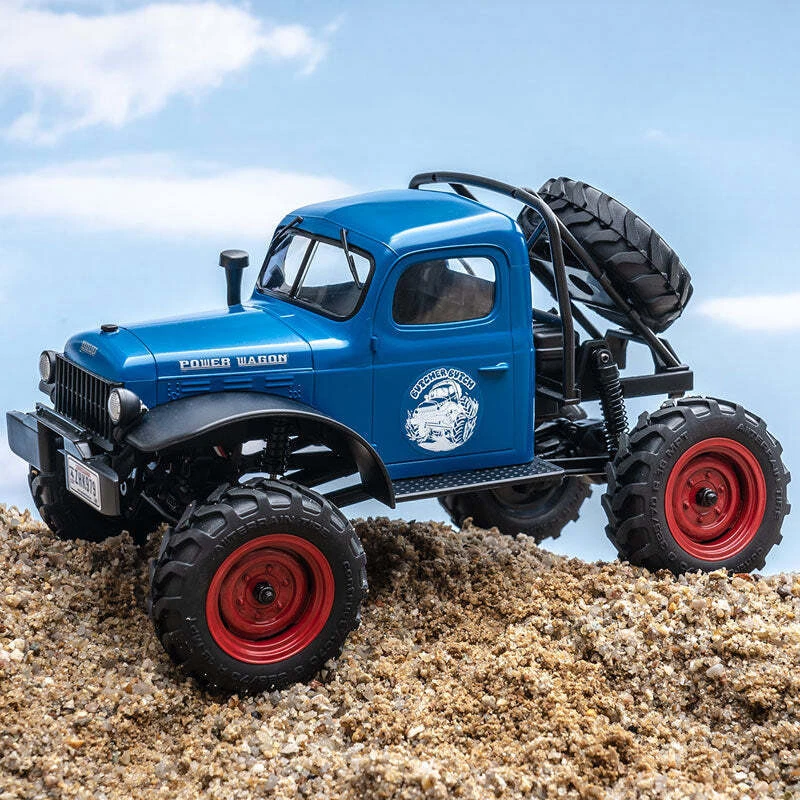

FMS 1/24 FCX24 Power Wagon RTR - V2.

The World's First 1/24 Climbing Rock Crawler with Two-speed Transmission - Power Wagon FCX24

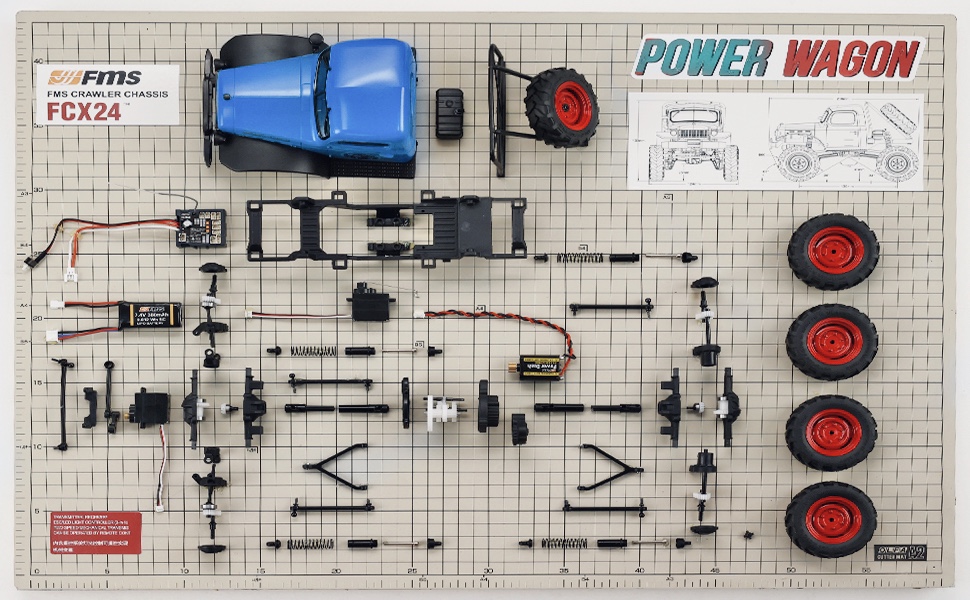

FCX24 meticulously designed by FMS team will redefine the small scale climbing rc car. As the first product of the FCX24 series, the car body is the POWER WAGON in 1949, which appeared in the form of a mud off-road truck. It is positioned as a high-performance crawler chassis. The carframe is made of high-strength nylon. Compared with the trapezoidal beam spliced by metal side beams and plastic trusses, the overall weight is lighter and the strength is higher. The mid-mounted power assembly has a low center of gravity and integrates the 2-speed transmission, transfer case and 130 motor. The power is transmitted to the front and rear axles through the universal joint drive shaft. The axles are equipped with wheel side reducers, commonly known as "portal axle", which can increase the ground clearance of the differential tooth pack and improve the passability.

ABOUT FCX24 POWER WAGON

The MUD MASTER is held every June in Manchac, near New Orleans, Louisiana, where there are dense swamps, rugged rocks, and dead woods, making it difficult for off-road vehicles to move. Legend has it that this area was cursed by the Queen of Voodoo Mary Poppin, and there is a mysterious singing that attracts people to get lost in the jungle, and there is no return. The swamp is also home to giant alligators that can devour adults..The stories were chilling, but they drew waves of young people who ventured into this no-man’s land, deep into the swampy hinterland, and garnered attention by sharing their location on Twitter.

In fact, this is a very beautiful ancient forest. The founder of the race, Chandler Bing, was born and raised on a nearby farm. In 2007.01.01, the MUD MASTER cross-country race was established to test the limits of people and machines, and at the same time, let the audience feel the pure power of nature. The race is open to anyone with a minimum FIA C1 licence. Limiting access to big capital and high technology also makes the race pure and simple. A significant portion of the competition's operating income is donated to local active environmental organizations for conservation and earth science education.

After 12 years of development, the scale and influence of the event has expanded year by year. In 2019, it was absorbed by the Amazon Rainforest Challenge and became the largest off-road racing carnival in the world. In recent years, with the advancement of electric vehicle technology, the proportion of hybrid racing cars is getting higher and higher, and pure electric vehicles have begun to join in 2021.

The initial participants were mostly local farmers, ranchers and crocodile breeders who had years of experience scrambling around in the mud, which is why their cars looked so much like tractors. One man is a newcomer to the event in 2022. His car uses a lot of parts from agricultural vehicles, and the casing comes from the legacy of his uncle Douglas Butch, a 1949 POWER WAGON. Because of the sturdy driving style, not playing cards according to common sense, and being familiar with the local climate and terrain, he has repeatedly won by surprise. Is this person you?

FCX24 is positioned as a high-performance crawler chassis. The car frame is made of high-strength nylon. Compared with the trapezoidal beam spliced by metal side beams and plastic trusses, the overall weight is lighter and the strength is higher. The mid-mounted power assembly has a low centre of gravity and integrates the 2-speed transmission, transfer case and 130 motor.

The crawlers are generally equipped with front and rear straight axles to simulate the locked state of the real car differential to improve off-road passing ability. The FCX24 is equipped with a straight axle by default, but the planetary gear differential can also be replaced with high-viscosity silicone oil to simulate the driving effect of an LSD limited-slip differential.

After installing the differential, the ultimate climbing ability will be reduced, but a smaller turning radius and a more stable high-speed driving quality can be obtained. Simply put, the straight axle is suitable for extreme climbing, and the limited-slip differential is suitable for high-speed off-road. The choice is yours. The low gear reduction ratio is 99, which is larger than that of similar products currently on the market. The torque output is strong, and easy for extreme climbing. The high gear reduction ratio is 24.75, and the speed is higher than that of all similar products currently on the market.

Unlike previous FMS products, as the first 1/24 series model, FCX24 focuses more on sports performance. Players from all over the world, look forward to you creating your own unique FCX24.

Features:

• Ready To Run Model
• Two Speed Transmission
• Portal Axle, High Ground Clearance For Climbing
• Metal Gear Steering Servo
• Four Link Suspension
• High Strength Integrated Nylon Frame
• Power wagon polystyrene body
• Rapid separation car body
• Nylon roll cage
• Painted body
• Remote control lighting system
• Original personalized stickers

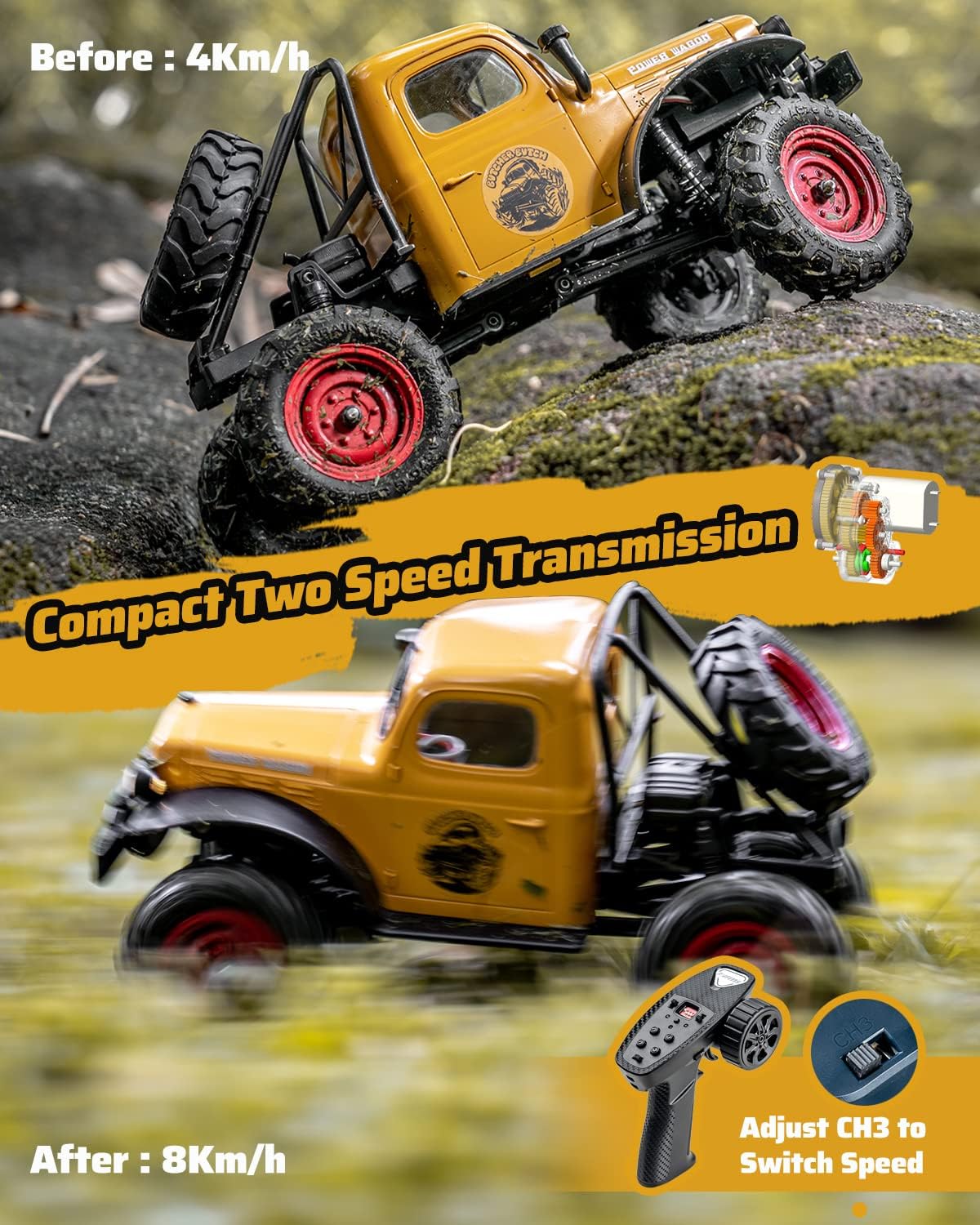

TWO-SPEED TRANSMISSION LEAVES RIVALS IN THE DUST
FMS has created the world's first 1/24th scale RC Crawler featuring a 2-speed gearbox. The torque output in Low speed is strong and great for extreme climbing and high speed. 8 km/h allows you get to the rocks quicker and experience the fun sooner.

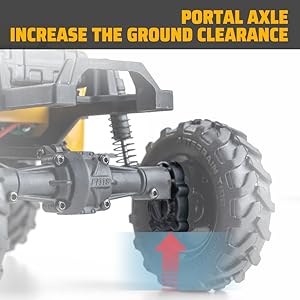

PORTAL AXLE
The axles are equipped with portal axles, which increase the ground clearance of the differential and reduce the gear ratio for increased performance.

METAL GEARS STEERING SERVO
Durable waterproof metal gear steering servo allows you to control the accuracy of steering.

130 BRUSHED MOTOR
Hold on to your hats! The Power Wagon is a blast to drive on the open road thanks to its high torque 130 brushed motor its also a beast on the rocks

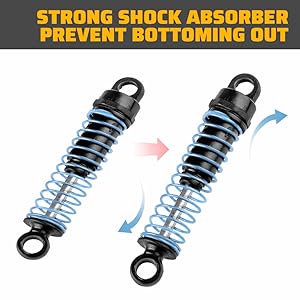

4-LINK SUSPENSION
The front and rear of the FCX24 is equipped with a compact 4-Link, improving the stability and articulation required for extreme rock crawling.

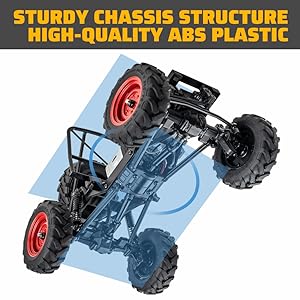

LIGHT AND STRONG
The FCX24’s integrally formed frame is made of high-strength nylon rather than metal and plastic, allowing for a lower centre of gravity, lighter weight and higher strength than traditional models.

METAL CVD UNIVERSAL JOINT
The metal CVD universal joint combined with a strong transmission shaft creates a durable drive-line capable of challenging rock crawling and ensuring durability across all elements and terrains.

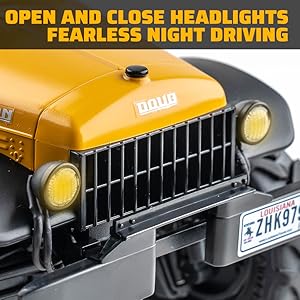

REMOTE CONTROL LIGHTING SYSTEM
Intelligent lighting control module, allows the headlights to switch between hi and lo beam making it possible to light up the trail day or night.

REMOVABLE HARD BODY
The FCX24’s hard plastic body can be separated from the frame with just the squeeze of a couple of clips, making it easy to maintain, make technical adjustments, install performance upgrades and clean.

ORIGINAL PERSONALIZED STICKERS
Style your own power wagon with our personalized sticker options.

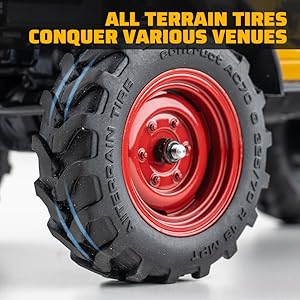

HIGH TRACTION TYRES
Made of a soft grippy rubber combined with an aggressive tread pattern, the Power Wagons all-terrain tyres have tremendous grip on rocks, mud and sand. The red paint and detailed sidewall provide a realistic and customizable look

HIGH TRACTION TYRES
Made of a soft grippy rubber combined with an aggressive tread pattern, the Power Wagons all-terrain tyres have tremendous grip on rocks, mud and sand. The red paint and detailed sidewall provide a realistic and customizable look

FCX24 G3 V1 Transmitter
Transmitter combines light control functions into a one-button switch. Includes sound prompts for steering and throttle positions, and idle alarm function.

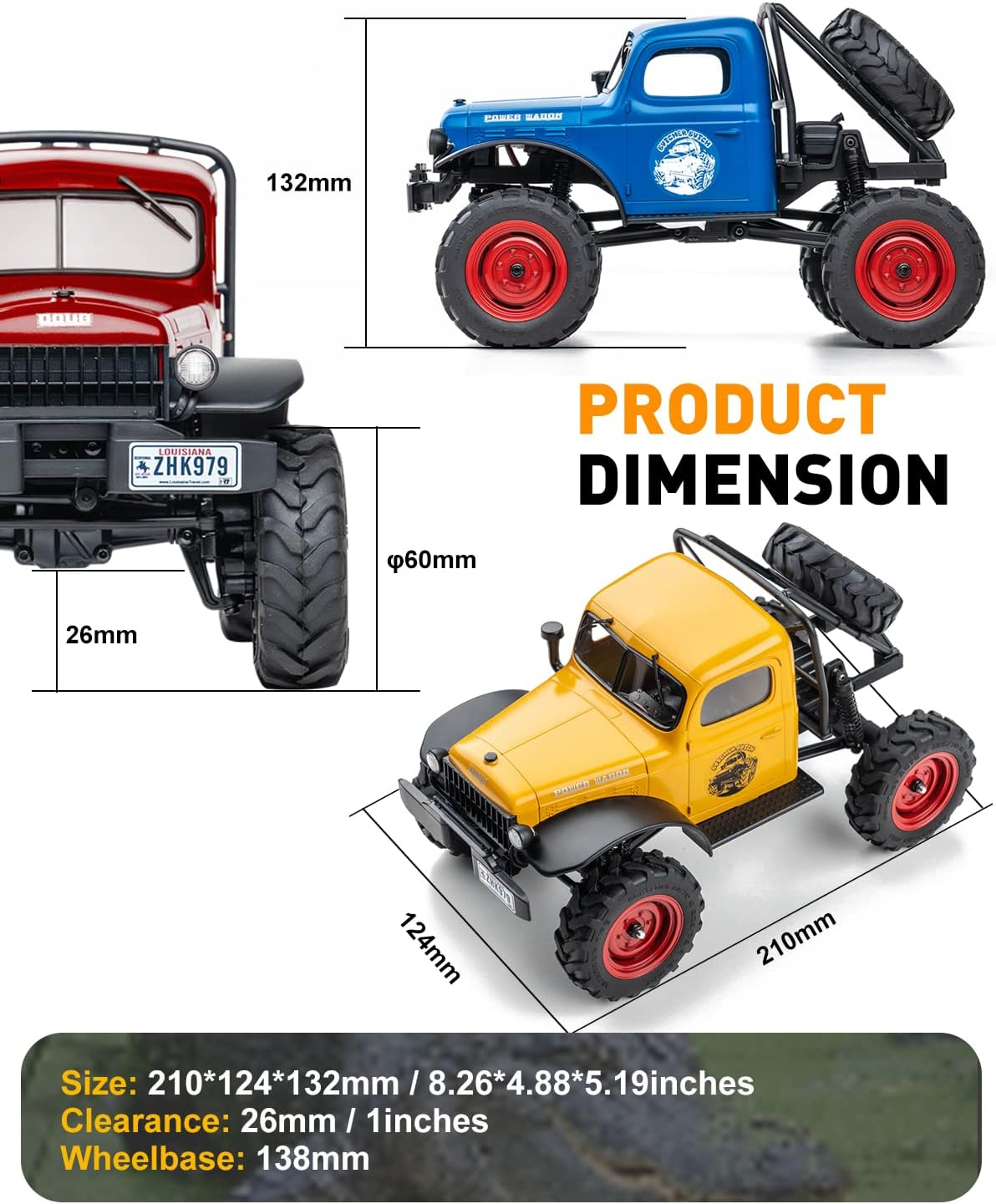

Specification

• Length: 210mm
• Width: 124mm
• Height: 132mm
• Wheelbase: 138mm
• Approach Angle: 68°
• Departure Angle: >90°
• Speed: 8km/h
• Minimum Ground Clearance: 26mm
• Remote control distance: 30m
• Approx. operating duration time: 20mins

What's in Box:

• 1 x 1:24 Power Wagon RTR
• 1 x G3 V1 Transmitter
• 1 x R3A V1 Receiver (installed)
• 1 x 130 Brushed Motor (installed)

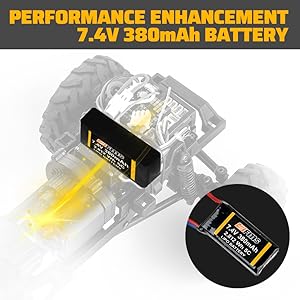

• 1 x 7.4V 380mAh Battery
• 1 x USB Battery Charger
• 1 x Hex Wrench Socket
• 1 x Product Manual

Need to Complete:

• 4 x AAA Batteries for Transmitter
