Tamiya King Hauler RC Truck Electric 4WD 1/14 Scale Kit
Tamiya King Hauler RC Truck: 3-speed transmission with realistic details & compatible with MFC Unit for lights & sounds and 1/14 trailers.
Important: When you're choosing your remote controller for your Tamiya semi truck, you need to figure if you want to use a MFU (Multi Function Unit). Your choice is between an analogue or digital trimmed 4ch radio. If you plan on using your Tamiya semi without an MFU, you can use either analogue or digital. If you plan on using your Tamiya semi with an MFU, you can only use an analogue remote controller like the Tamiya Attack 4YWD.
Key Points
- 3-speed transmission for realistic gear changes

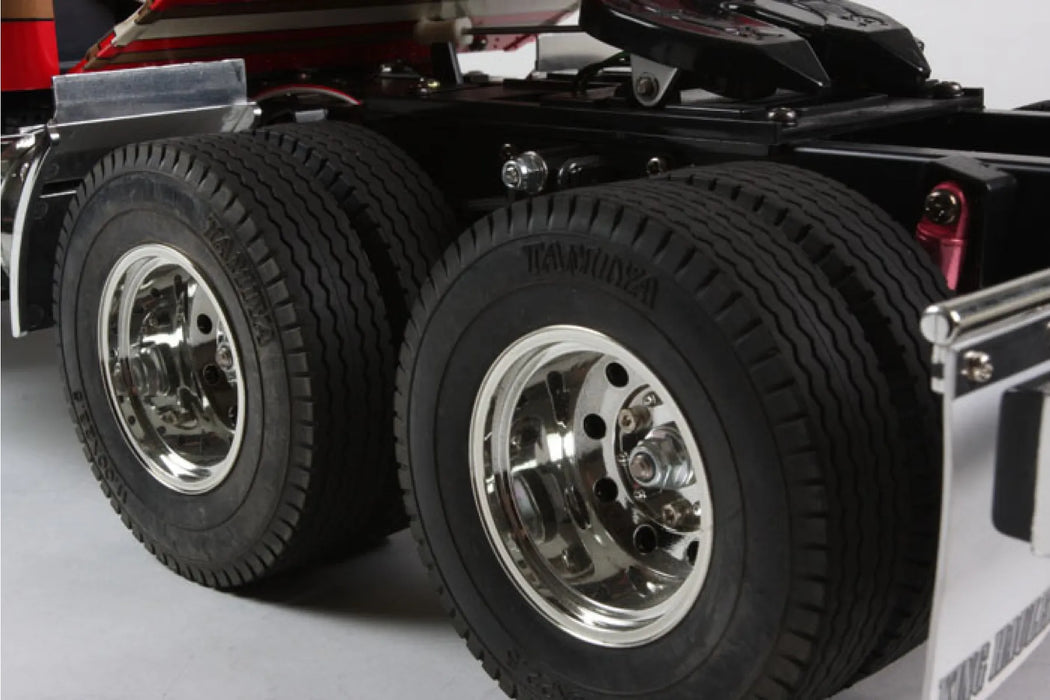

- Front motor powers dual rear axles via propeller shaft
- Metal ladder frame chassis with leaf spring suspension
- Detailed ABS plastic body for realistic appearance
- Compatible with separately sold MFC Unit & 1/14 scale trailers
Description
The Tamiya King RC Truck delivers a classic big rig experience in 1/14 scale. This kit features a front-mounted motor driving dual rear axles, a 3-speed transmission, and a robust metal ladder frame chassis. The detailed ABS plastic body captures the iconic truck design, and the model is compatible with Tamiya's 1/14 scale trailers for extended hauling fun.
This kit is designed for RC truck enthusiasts who appreciate traditional truck designs and reliable performance. The 3-speed transmission and durable chassis provide an authentic driving experience, while the compatibility with trailers expands the model's playability
Features

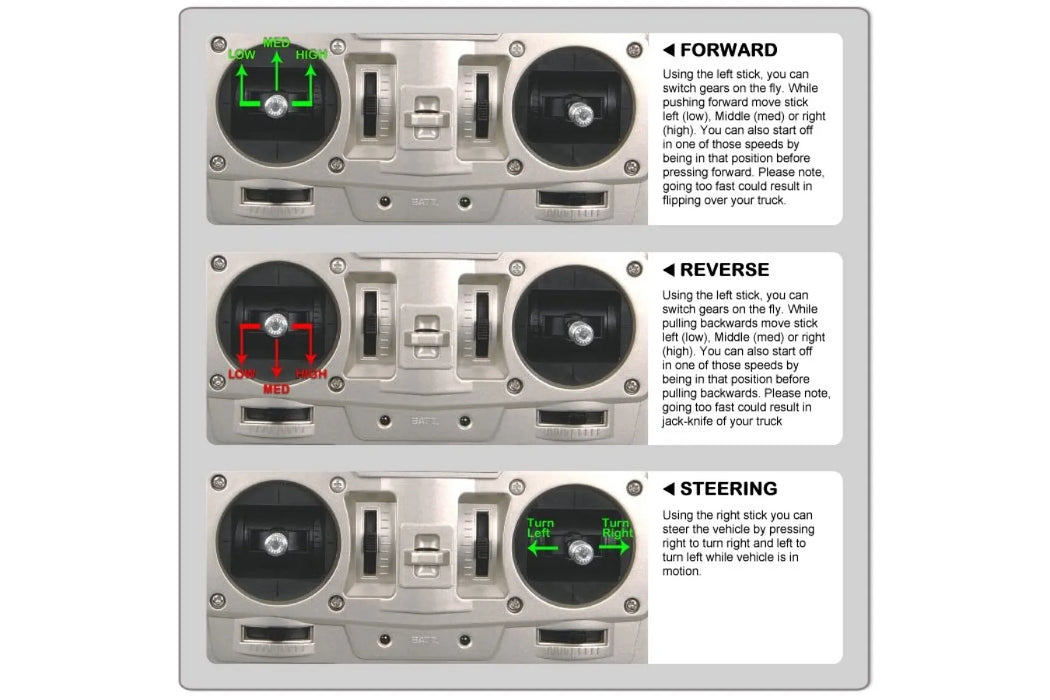

- 3-gear transmission controllable via transmitter

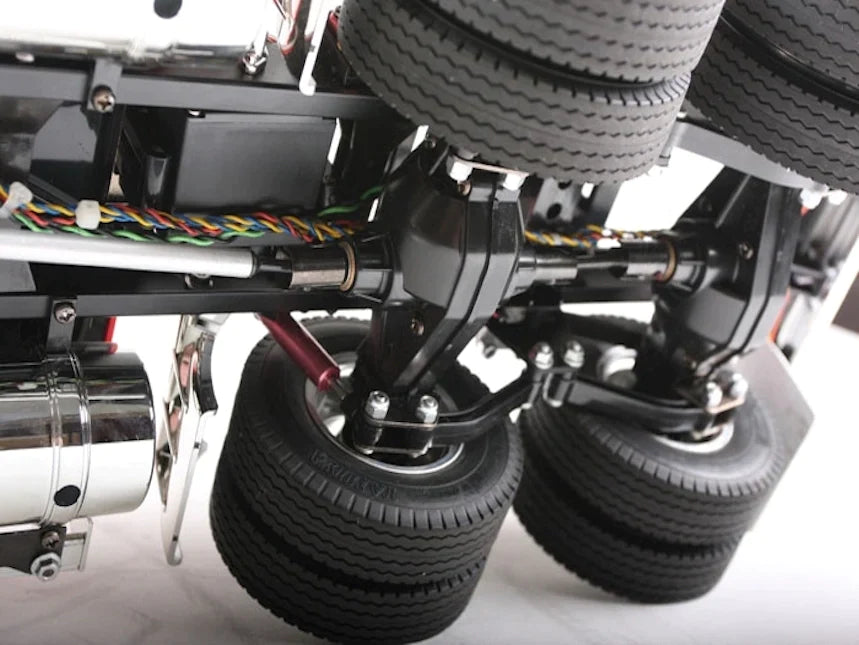

- Front motor, rear dual-axle drive
- Metal ladder frame chassis
- Leaf spring rigid suspension
- 3-bevel differential gears
- Type 540 motor included
- 22mm/83mm tyre width/diameter
- Compatible with Tamiya 1/14 scale trailers
- Metal and plastic bushings
- Genuine Tamiya Product
3 Speed Transmission
The 3-speed transmission provides excellent low-speed performance and realistic gear changes. A slipper clutch protects the gears from shocks to ensure smooth operation and extended durability

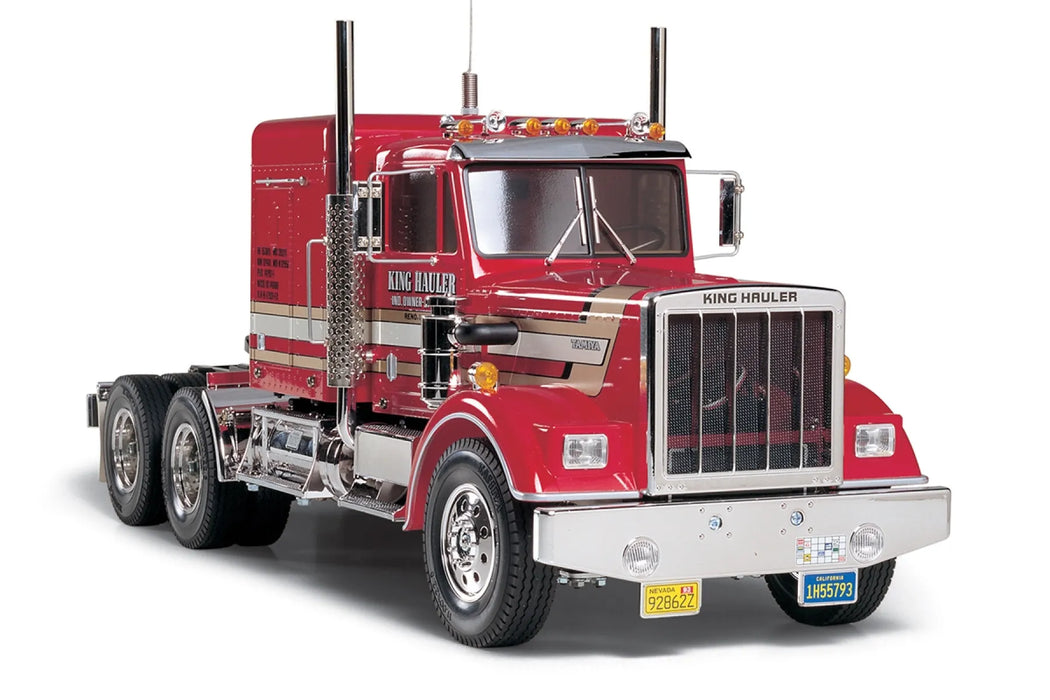

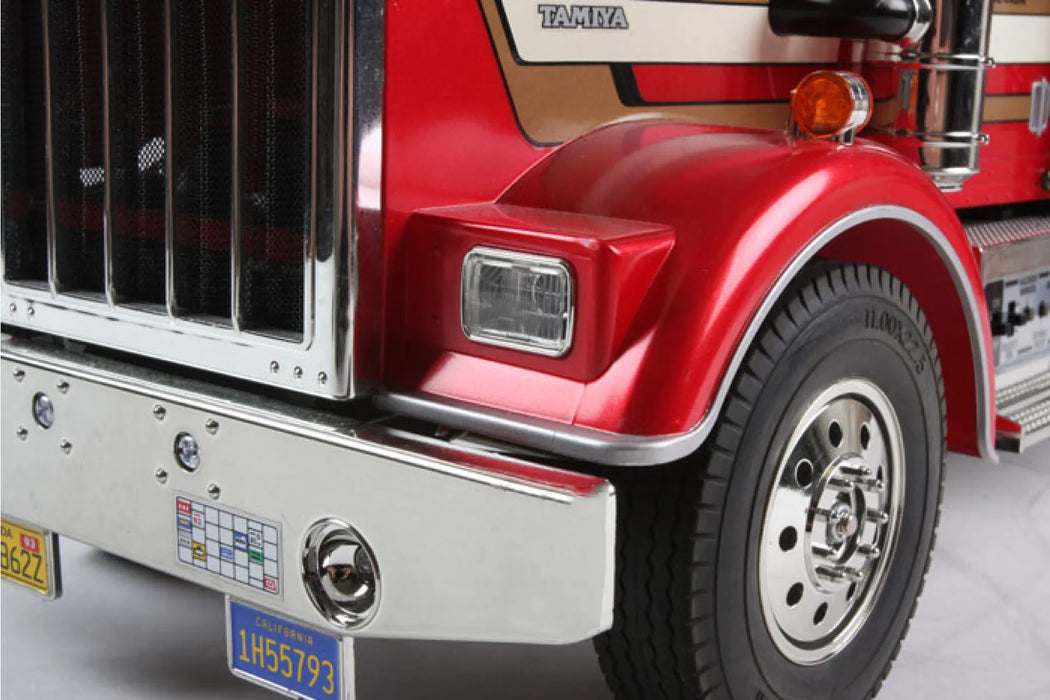

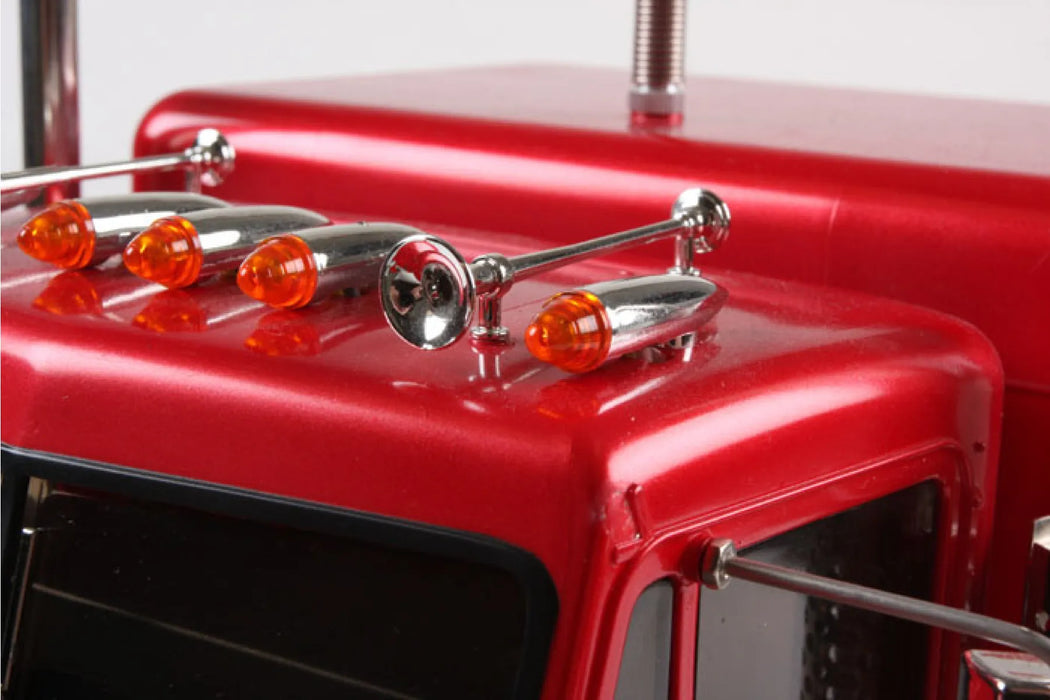

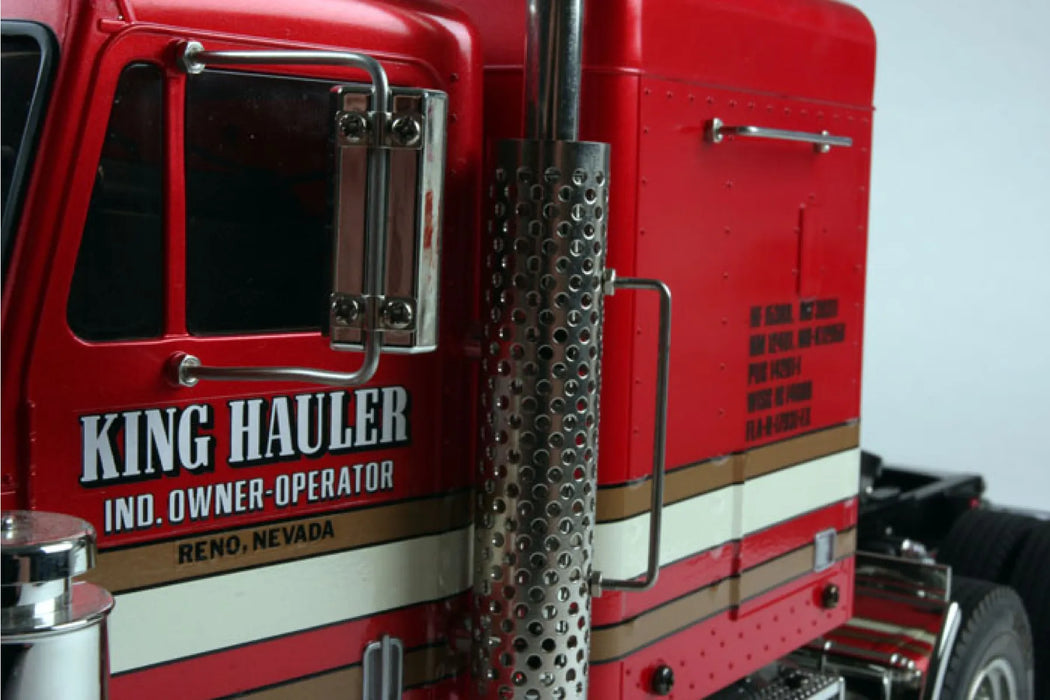

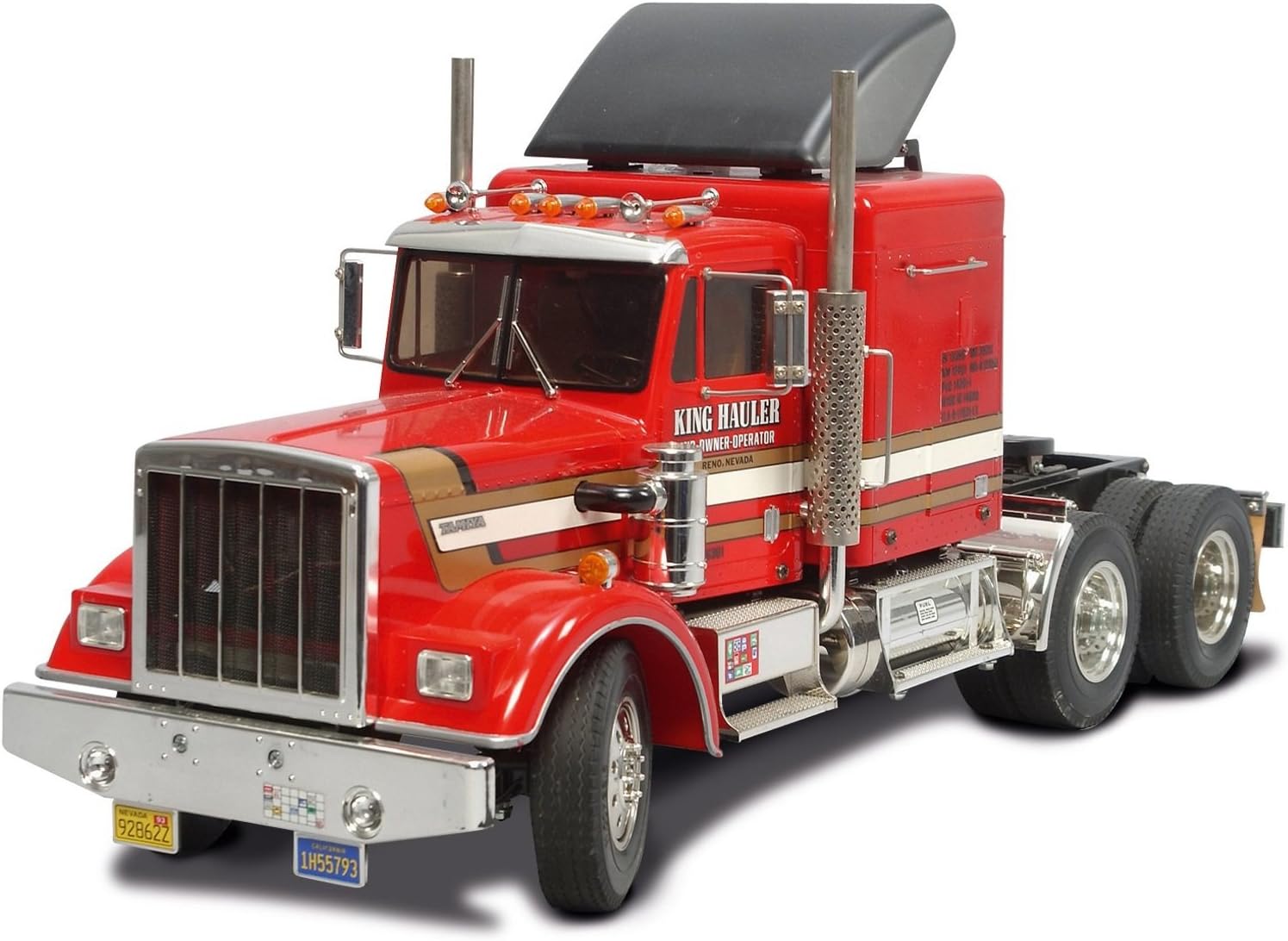

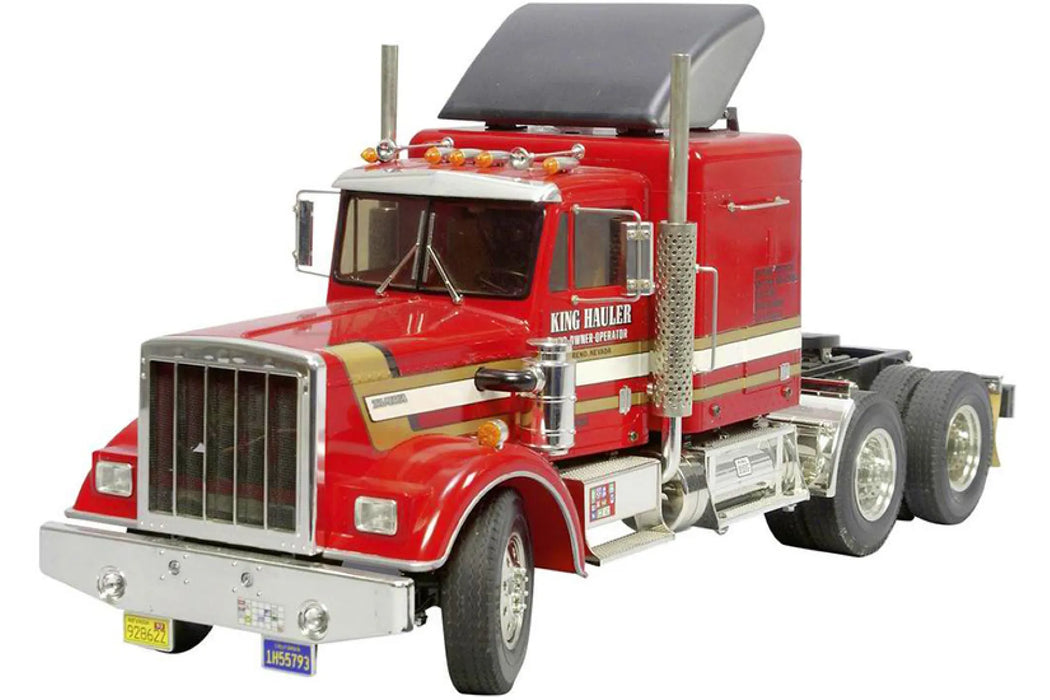

Detailed ABS Big Rig Body
Achieve a realistic appearance with the King Hauler's expertly crafted ABS big rig body

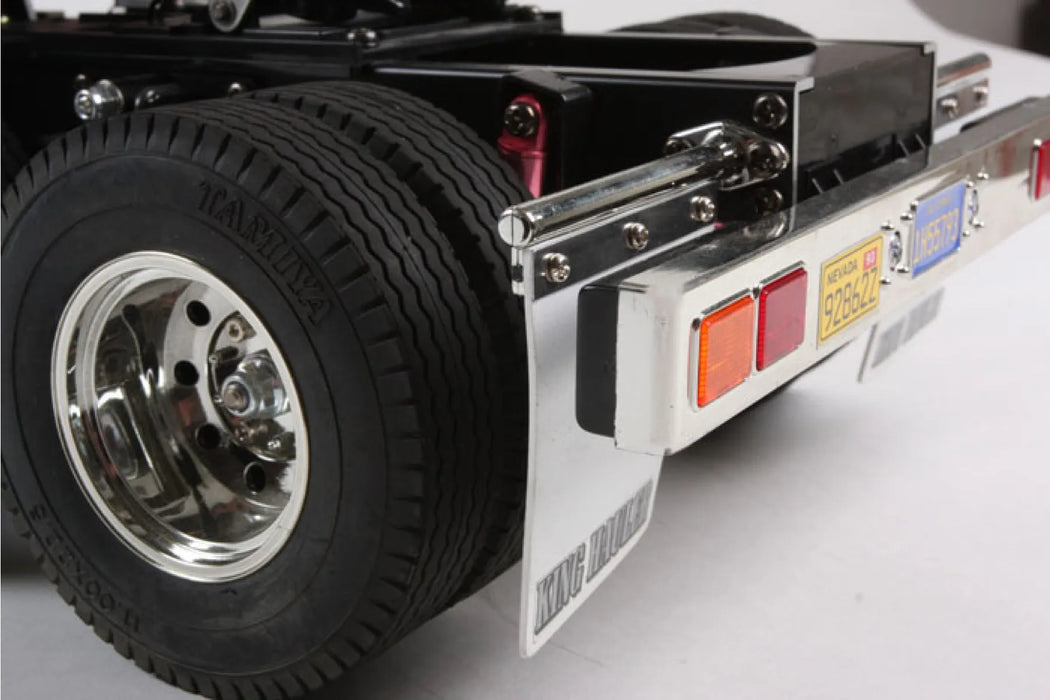

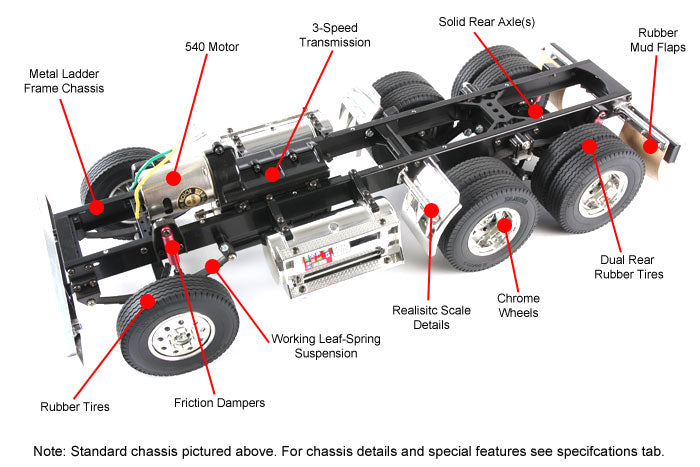

Metal Ladder Frame Chassis with Leaf Spring Suspension
Experience authentic truck performance with a robust metal ladder frame chassis and leaf spring suspension
Specifications
- Width: 183mm (7.2")
- Height: 255mm (10.04")
- Wheelbase: 447mm (17.6")
- Weight: Approx. 3.1kg (6.83 lb)
- Chassis: Aluminium & Polycarbonate Ladder Frame
- Suspension: Leaf Spring Rigid
- Drivetrain: Rear Dual-Axle Drive
- Motor: Type 540 Brushed
- ESC: N/A
| RC Car | |
|---|---|
| Scale: | 1/14 |
| Max LiPo Power: | 2S (7.4v) |
| Completion: | Kit |
| Skill Level: | Expert |
| Power Source: | Electric |
| Chassis Type: | Truck |
| On/Off Road: | On Road |
| Drivetrain: | 4WD |
| RC Kit | |
|---|---|
| Suited Motor/ESC Type: | Electric |
| Factory Specs | |
|---|---|
| Max LiPo Power: | 2S (7.4v) |
| Battery Connector: | Not Included |
| Pinion Gear: | 10T |
| Spur Gear: | 36T |
| Wheel Hex Size: | 12mm |
Included Items
- 1x Tamiya King Hauler RC Truck Electric 2WD 1/14 Scale Kit
Required Items
- 1x 4-Channel Transmitter
- 2x Servos
- 1x Electronic Speed Control (ESC)
- 1x 7.2V Battery with Compatible Charger
- AA Batteries (for Transmitter)
- Tamiya TS Paints
- MFC Unit (Optional)
- LEDs (Optional)
Note
- Assembly required. Trailers & MFC Unit sold separately.
- Consult manual for maintenance and setup options.
MFC Unit - Multi Function Control Unit (Sold Separately)
Transform your Tamiya 1/14 semi-truck into a true-to-life masterpiece with the must-have Multi-Function Control Unit (MFC Unit). This incredible unit adds a symphony of realistic sounds, synchronised vibrations that react to the truck's movement, and dazzling LED lights that illuminate every manoeuvre. With 24 different sounds, 9 types of lights, and vibrations that mimic engine idle and acceleration, the MFC Unit brings an unparalleled level of realism to your RC experience.
