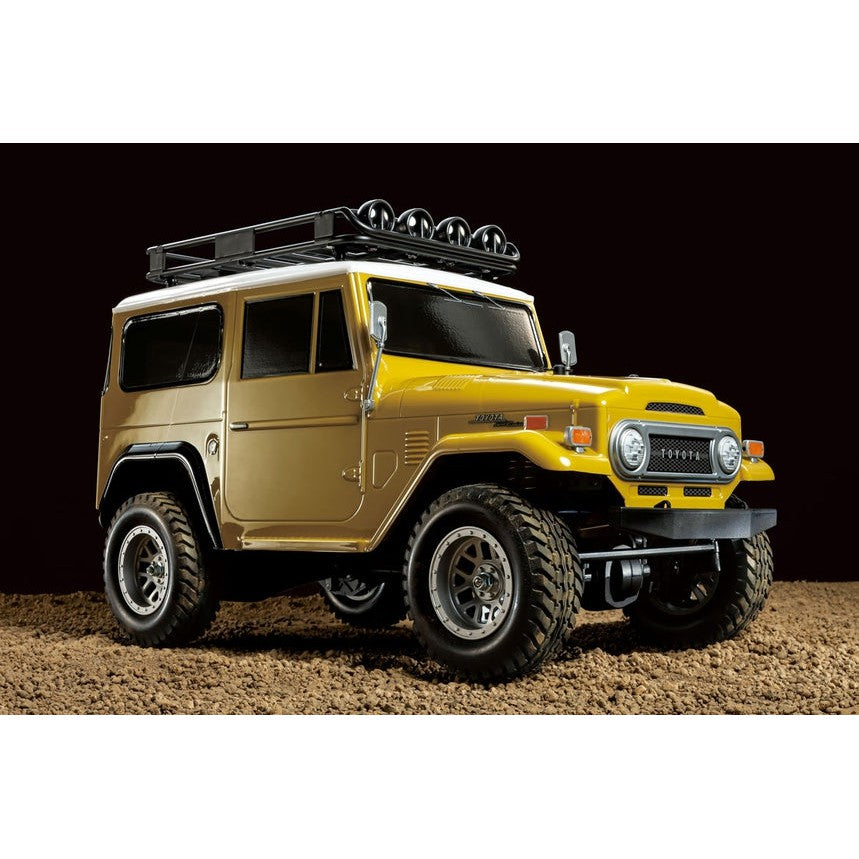

Tamiya 1/10 The Legendary Toyota Land Cruiser 40 - 4WD CC-02M RC Crawler Kit with Yellow Painted Body - 47490

The Toyota Land Cruiser 40 has been a staple subject for Tamiya since 2008. It first appeared on the CR-01 crawler chassis then later the simpler CC-01 cross country chassis. Now, the classic Land Cruiser makes its way on to Tamiya’s newest cross-country platform, CC-02 with a few detail tweaks for the scale enthusiast!

CC-02 Chassis - Off Road, Evolved

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with 12-spoke wheels and semi-pneumatic rubber tyres.

Features

• 1/10 scale R/C model assembly kit. Length: 390mm, width: 198mm, height: 237mm. Wheelbase: 252mm (M-size wheelbase).
• The CC-02 chassis is designed for a wide range of off-road driving expeditions and has a ladder frame which was inspired by full-size vehicles.
• NEW: A roof rack with light pods is realistically depicted with separately molded parts.
• NEW: Silver colour 12-spoke wheels are paired with block pattern tires. (Wide wheels are included to recreate the customized look of this version.)
• NEW: New stickers feature integrated tinted window and window frame sections to allow ease of applying stickers and eliminate the need for painting the window tint.
• Includes Motor
• Pre-painted Shell provides a high quality factory finish

• The CC-02 chassis is perfect for off-road driving
• The chassis has a ladder frame inspired by full-size vehicles
• It features a roof rack with light pods, made with separately moulded parts

Ladder Frame for Excellent Rigidity

The 1/10 scale vehicle's ladder frame is modelled on those used by full-size cars and provides excellent rigidity.

Four Link Arms for Superlative Cushioning

Four-link arms connect the front and rear axle housings, which combine with oil shocks for outstanding cushioning.

Wide Range of Gear Ratios Available

Twenty gear ratios between 11.09 and 29.28:1 are possible by changing the gear layout and using separately-sold pinions of nine other sizes.

Exemplary Durability with Metal Chassis Frame

Metal chassis frame sections provide excellent durability, and CVA oil shocks ensure maximum off-road performance.

3-Bevel Differentials for Locked Running on Low-Grip Surfaces

The axle housings are made of reinforced plastic and house 3-bevel differentials. They can be locked when running on lower-grip surfaces.

But this limited-edition kit offers more than just rugged capability. New features include a roof rack with light pods, silver 12-spoke deep-rim wheels, and integrated tinted window sections on the sticker sheet, adding a touch of realism and convenience to your build. Whether you're a seasoned RC enthusiast or a Land Cruiser aficionado, the Tamiya CC-02 Toyota Land Cruiser 40 is a must-have addition to your collection.

Limited Edition Painted Shell

This CC-02 features a special, limited edition factory painted Toyota Landcruiser 40 Series shell. Featuring incredible scale details, this CC-02 is a must-have for Tamiya collectors and Toyota Landcruiser enthusiasts.

Ladder Frame Chassis

The CC-02 chassis features a realistic ladder frame, inspired by full-size off-road vehicles, providing exceptional rigidity and durability for tackling challenging terrain.

Four Link Suspension

The CC-02's four-link suspension delivers outstanding performance and scale realism. Robust link arms connect the axles, while oil shocks provide smooth damping action and exceptional articulation for conquering challenging obstacles.

Adjustable Gear Ratio

Fine-tune the CC-02's performance to match your driving style and terrain with a wide range of gear ratios. Twenty different ratios, from 11.09 to 29.28:1, are achievable by adjusting the gear layout and utilising your choice of separately-sold pinions.

Durable Metal Chassis

The CC-02 chassis is designed for tough off-road action. Metal frame sections provide exceptional durability, while CVA oil shocks ensure smooth damping and maximum performance on challenging terrain.

Lockable Differentials

The CC-02 comes with robust axle housings that can handle extreme off-road conditions. Inside, 3-bevel differentials provide smooth operation, and they can be assembled in a locked position for increased traction when needed, ensuring you maintain control on any surface.



Front Mount Mid Motor

 The CC-02 delivers an authentic driving experience thanks to its scale drivetrain configuration. The motor is positioned in the front midsection, and power is transferred through a central gearbox and propeller shafts to both the front and rear axles, just like a real car.

Features

• Show off a factory-finished look with a high-quality, eye-catching paint job that's ready for action right out of the box
• Conquer any terrain with the CC-02 chassis, specially designed for thrilling off-road adventures
• Ladder frame chassis inspired by full-size off-road vehicles, providing exceptional durability and strength
•  Add a touch of adventure and style with the included roof rack and light pods, crafted with separately moulded parts for a detailed finish
• Tackle rough terrain with confidence, thanks to the grippy block pattern tyres and stylish silver 12-spoke wheels
• Customise your ride with the included wide wheel set, adding a bold and aggressive stance to your buggy
• Enhance the realism of your build with the all-new sticker set, featuring integrated tinted windows and window frame sections for a polished look
• Experience smooth power delivery and exceptional traction with the reliable 4WD shaft-driven transmission
• The meticulously designed body, along with the detailed accessories, captures the essence of off-road adventure
• Genuine Tamiya Product

Specifications

• Length: 390mm (15.35")
• Width: 198mm (7.79")
• Height: 237mm (9.33")
• Wheelbase: 252mm (9.92")
• Weight: Varies
• Chassis: Rock Crawler Rail Chassis (CC-02)
• Drivetrain: 4WD
• Gear Ratio: Adjustable
• Suspension: Rigid 4 Link with Oil Filled Coil Over Shock Absorbers
• Motor: 540 Sized Brushed Motor
• ESC: Not Included

Included Items

• 1x 1/10 CC-02 RC Rock Crawler Chassis Kit
• 1x 540 Sized Brushed Motor
• 1x 1/10 Painted Toyota 40 Series Body Shell - Yellow

Required items not included (See our website under Parts, Batteries and Transmitters)

• 1x Compatible 7.4V LiPo Battery or 7.2V NiMH
• 1x Compatible Charger
• 1x Compatible 1/10 Scale ESC
• 1x Compatible 1/10 Scale Servo
• 1x 2+ Channel Transmitter & Receiver
• Polycarbonate Safe Paint
• AA Batteries For Transmitter
