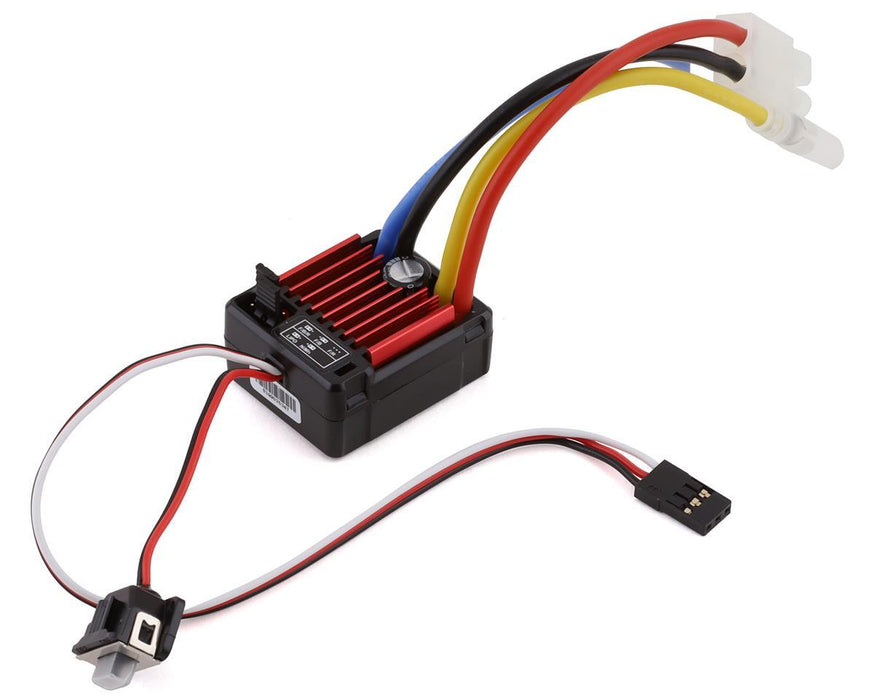

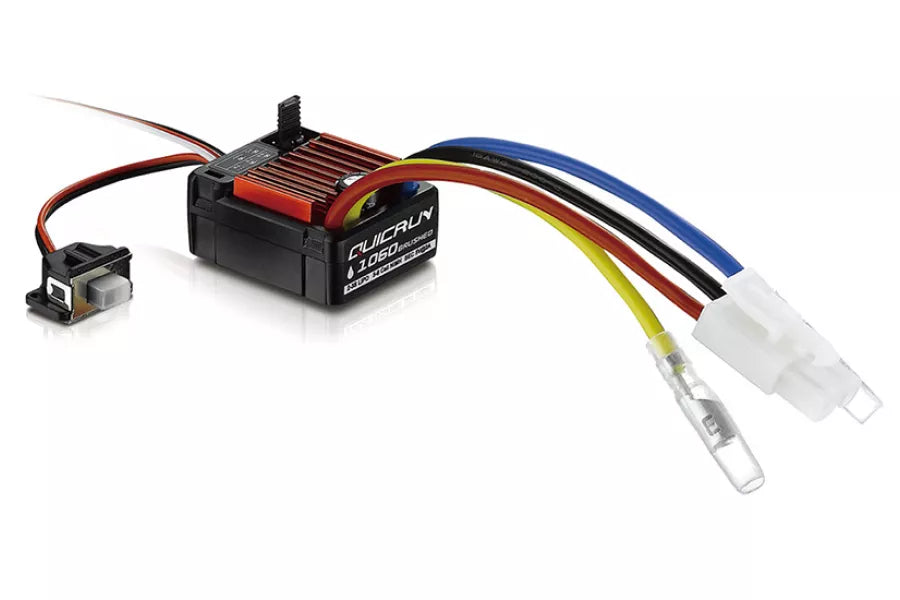

Hobbywing Quicrun 1060 60A Waterproof Brushed ESC

The QuicRun WP 1060 is specially designed for new beginners and intermediate modelers. This speed controller is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Features:

• Water-proof and dust-proof, suitable for all weather races.
• Small size, with built-in capacitor module.
• Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• ESC parameters are easy to set with jumpers.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection.

Specifications:

• Scale: 1/10th
• Brushed
• Waterproof: Yes
• Cont./Peak Current: 60A/360A
• Input: 2-3S LiPo/6-9 Cells NiMH
• BEC Output: Linear Mode:6V/3A
• Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1
• Output Wires: Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
• Input Connectors: Big-sized TAMIYA Connector

• The Hobbywing 1060 is a waterproof ESC that is great for general purpose brushed 1/10 scale RC cars.
• Capable of taking 2-3s LIPO or 5-9 cell NIMH batteries.
• Best combined with 540/550 size brushed motors
• Some application examples: 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers
