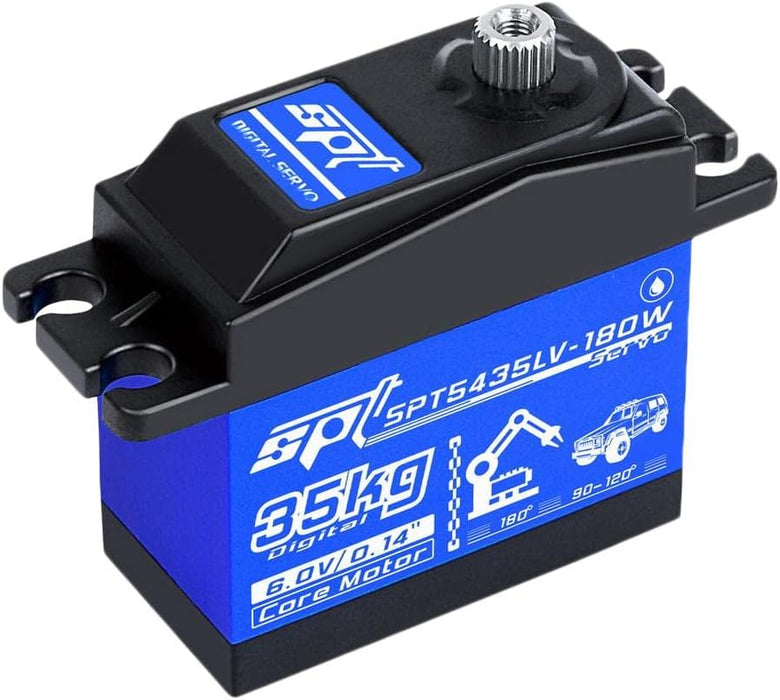

SPT Waterproof 35KG 180° Digital Servo for 1:8/1:10 Scale RC Cars and Boats

Specifications

• Frequency: 330hz
• Dead Band/Neutral point: 4μs/1500μs
• Neutral Position: 1500μs/330hz
• Motor: Core motor
• Remote Control Angle: 90-120°±2° 76g; (Max.120 Degs)
• 500μs-2500μs : 180 Deg
• Voltage Range: 4.8V-6.0V
• Operating Speed(4.8V): 0.22''/60°
• Operating Speed(6.0V): 0.18''/60°
• Stall Torque(4.8V): 29 kg.cm
• Stall Torque(6.0V): 35 kg.cm
• Weight: About 62g
• Connector Wire Length: JR  260 mm
• Bearing: 2BB

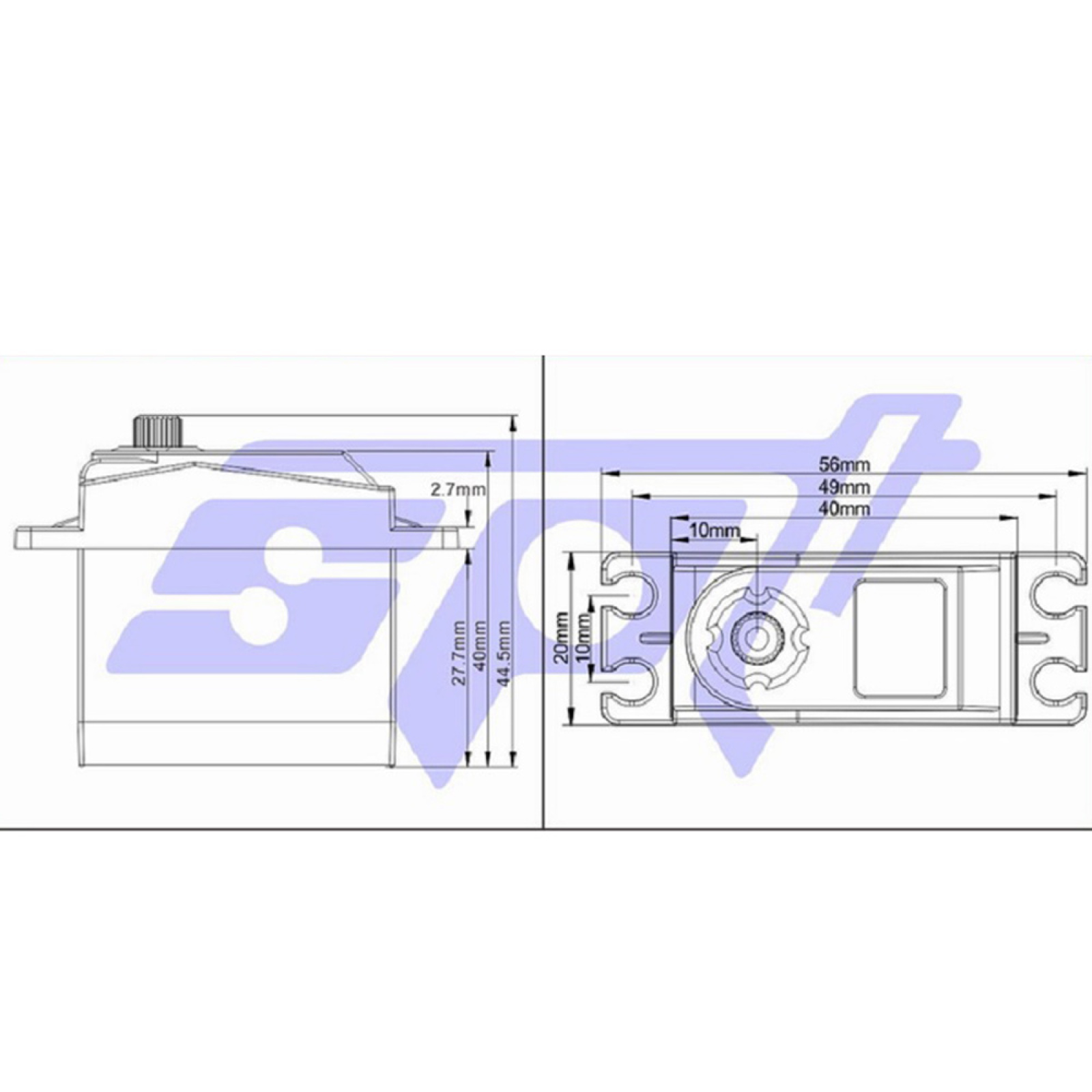

• Dimensions: 56 x 20 x 40.mm (See below)
• Application: For 1:8 1:10 RC Robot Car RC Boat

SPT
