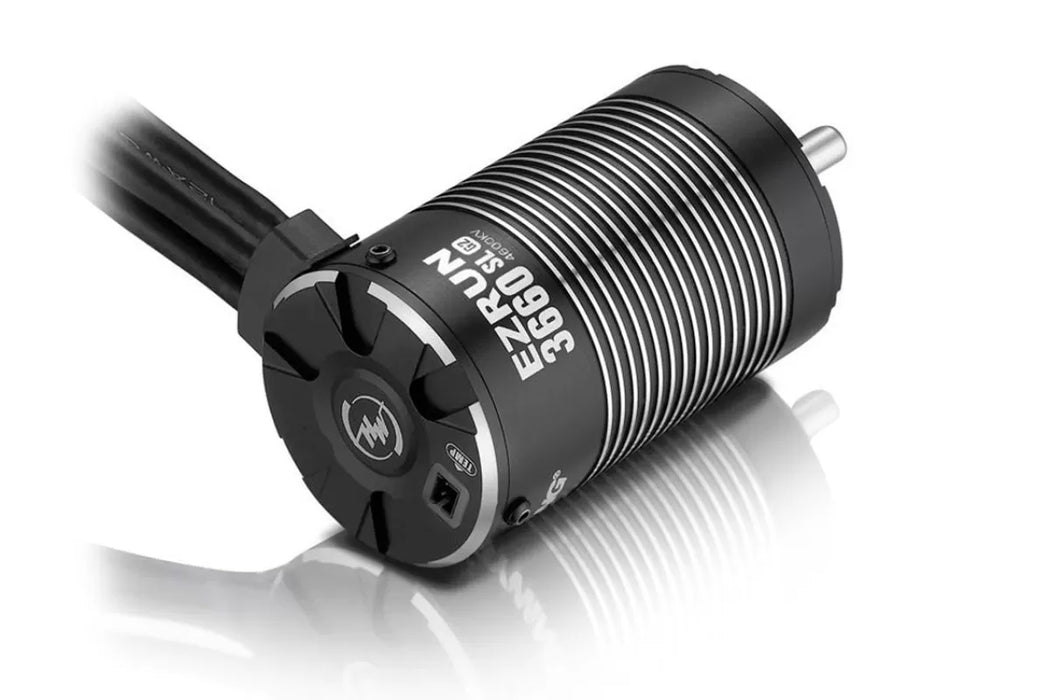

Hobbywing EzRun SCT 3660SL-G2 4000Kv Brushless Motor - 30402651
The HobbyWing EzRun 3660 G2 motor features an Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.
Specifications
- Max Input Voltage: 3S 11.1V Lipo
- Weight: 268(9.45oz)
- Motor Diameter: 36mm
- Motor Length: 60mm
- Shaft Diameter: 5mm
- Connector: 4.0mm bullet
| Motor | |
|---|---|
| Motor Type: | Brushless |
| Can Length (mm): | 60 |
| Can Diameter (mm): | 36 |
| KV (RPM/V): | 4000 |
| Shaft Diameter (mm): | 5 |
| Turns: | N/A |
High Efficiency
Hobbywing’s temperature control technology has been designed to protect the motor
from being damaged by heat thus less heat more efficient the motor will run and
perform. The output performance of this motor has an efficiency rate of up to 90%,
a leading level in the RC world.
High Efficiency
High Torque
The 4 pole design will guarantee the motor to produce very large amounts of torque,
a much faster acceleration response and a very stable output of power to the drivetrain.
High Output
Fast Acceleration
