Hobbywing ESC Program Card - 30501003

Hobbywing ESC Program Card - 30501003

by technohobbies.com.au
$29.95

Hobbywing ESC Program Card - 30501003

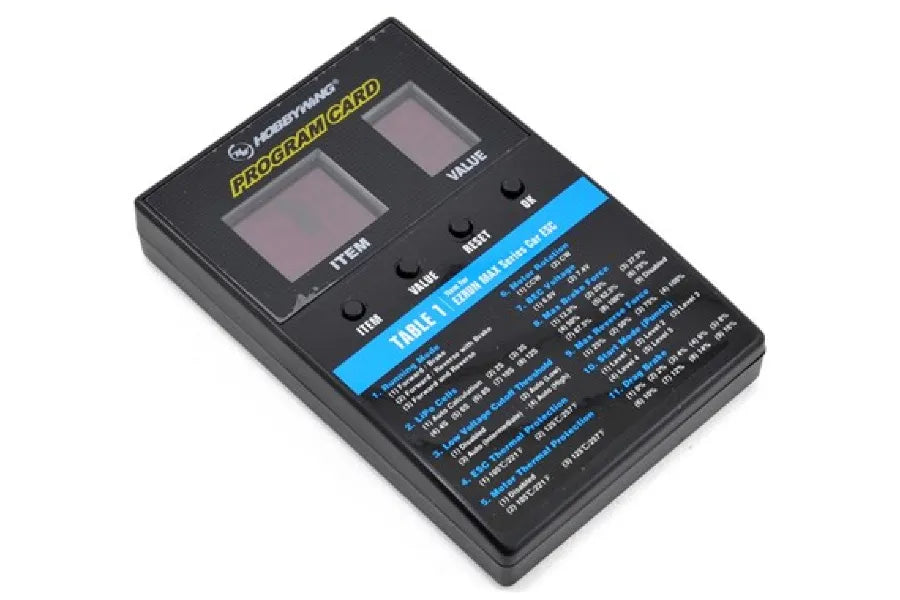

Hobbywing ESC LED Program Card image 35920

Overview

The Hobbywing LED Program Card is used to program Hobbywing ESC's. It features a user friendly interface and is easy to use. Package includes program box and 3-wire male/male plug for hooking the programmer to the ESC.

Features

  • This LED Program Box is for programming Hobbywing brushless ESCs. Its friendly interface makes the ESC.
  • programming easy and quick. It’s compact and applicable for field use.
  • This LED Program Box works with the following products of Hobbywing.
  • Platinum V1/V2 series & Flyfun V5 series of brushless aircraft ESCs.
  • Xerun series, Ezrun series & Quicrun series of brushless car ESCs.
  • Seaking series of brushless boat ESCs.

Please Note!

  •  This program box doesn’t work with some Xerun ESCs (i.e. XR8 Plus). If you want to make sure it's compatible withyour ESC, please refer to the user manual (of your ESC)
  •  This program box doesn’t work with some Seaking ESCs (i.e. Seaking Pro 160A) either. If you want to make sure it's compatible with your ESC, please refer to the user manual (of your ESC)
  •  This program box only works with HobbyWing brushless ESCs; it’s not compatible with other ESCs

Compatible With:

  • Platinum V1/V2 series & FlyFun V5 series of brushless aircraft ESCs.
  • XeRun series (some XeRun ESCs, please take the instructions of relevant user manuals as standard.)
  • EzRun series
  • QuicRun series of brushless car ESCs
  • Quicrun 1080 & 880 brushed ESC
  • SeaKing series of brushless boat ESCs



Specifications

  • Size: 88 x 58 x 14mm
  • Weight: 40g

Input Voltage: 4.8-6V

NOTE: If the ESC does not have a built-in BEC, you will need to use an additional 6.0V battery to supply power to the program box.
