TRAXXAS X-MONSTER CHASSIS 77036-4

TRAXXAS X-MONSTER CHASSIS 77036-4

by technohobbies.com.au
Sold out
$1,995.00

TRAXXAS X-MONSTER CHASSIS - Arriving Soon!

Overview

X-Maxx Toughness. Monster Truck Style
The new X-Monster Chassis combines the legendary power and durability of X-Maxx with even more strength, larger size, and a new series of replica monster truck bodies to choose from.

Description

Traxxas X-Maxx MT, the new monster truck version of the X-Maxx is a huge beast that is more than ready for hardcore off-road action.

The X-Maxx MT does not come with a body, but there are 5 body choices that can be purchased along with the truck. The body choices include three Chevys and two that are licensed by Ford, including one that sports genuine Bigfoot livery. The truck comes in almost RTR form and is expected.

New belted chevron-pattern monster truck tyres deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck. Choose your favourite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8s power!

Under the hood, the X-Monster uses a 1275 Kv Velineon 1200XL brushless motor and VXL-8s waterproof ESC, capable of pushing the truck to over 50mph with dual 4s LiPo batteries and an optional speed gear. The powertrain features shaft-driven 4WD, sealed and hardened steel differentials, and heavy-duty CV driveshafts for added durability.

Features

  • VXL-8s™ Waterproof Electronic Speed Control
    • 8s LiPo compatible
    • Built-in cooling fan
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • 4-pole 1275 Kv
    • 5 mm output shaft
    • Aluminum slip-on heat sink
    • Dual motor cooling fans
  • 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
  • Traxxas Stability Management® (TSM)
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System
    • Traxxas Link™ enabled
    • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity
    • BEC Voltage and Motor Temperature Sensor installed
  • 8s Driveline
    • Steel pinion and spur gear
    • Full-time shaft-driven 4-wheel drive
    • Heavy-duty steel CV driveshafts
    • Beefed-up steel differential output cups
    • Splined aluminium centre driveshaft
    • Machined aluminium stub axles
    • Torque-Biasing Centre Drive™ absorbs shocks and distributes power to all four wheels
    • 24 mm splined wheel hexes
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
  • Fixed Motor Mounting System
  • Preset gear mesh adjustments
  • No manual adjustments required
  • Motor retention separate from gear mesh
Heavy-Duty Modular Composite Chassis
  • Interlocking front and rear bulkheads
  • Motor mounts to rear bulkhead to eliminate gear crunching flex
  • Easy to service and access components
  • Driveline is sealed in the chassis to keep out dirt and grit
Snap-Lock Battery Retention System
  • No body clips or hook and loop straps
  • Battery hold-downs pivot for easy access
  • Adjustable for battery size
  • More secure than conventional retention systems
  • Integrated into chassis top brace for improved battery tray and chassis stiffness

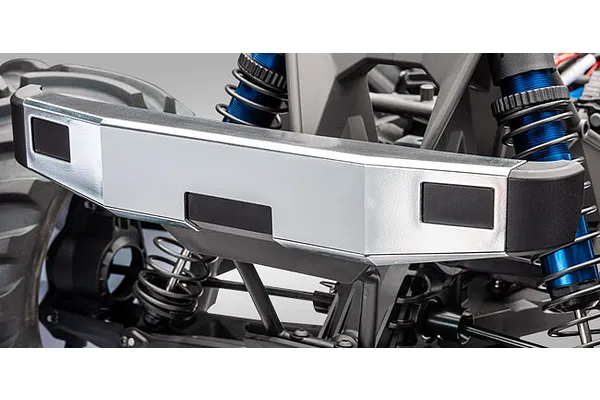

Bumpers & Skid Plates
  • Front energy absorbing rubber impact cushion
  • Lower front and rear skids for impact and abrasion resistance
  • Integrated nerf bars for side impact resistance
  • Steering
    • 450 oz-in torque
    • Aluminium cooling fins
    • 2085XL high-output metal-gear steering servo
    • Fully-supported case mounting
    • Double-shear, bearing supported servo horn
  • Suspension
    • Heavy-duty suspension arms with double-shear connections
    • High strength steel suspension pins used throughout
    • Captured outer lower suspension pins with locknuts
    • C-hub and steering block geometry maximizes steering angle
    • Adjustable roll centre
    • Steel upper and lower tie bars
    • Full contact sealed bearings used in exposed locations

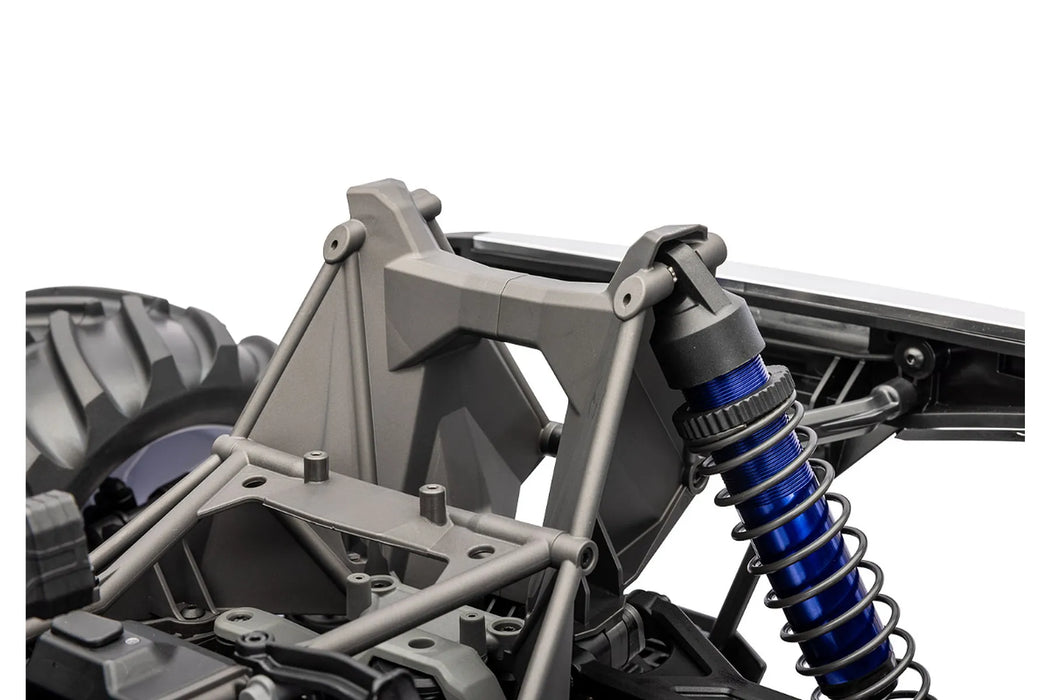

  • Aluminium GTX™ Shocks
    • Machined aluminium threaded body
    • Extra-large bore and capacity
    • 5.2 mm damper shaft
    • Lower seal cartridge includes integrated wiper seal combination
    • Adjustable upper spring retainer
    • Plastic shock caps with pivot balls
    • Fixed shock locations
    • Lower spring perches bolted on
  • Wheels & Tyres
    • Replica military-style axle hubs
    • Super-soft rubber compound for exceptional grip
    • Internal belting virtually eliminates ballooning
    • Dual-profile white monster truck wheels
    • Huge 8.6" belted chevron-pattern monster truck tires

          More Powerful 2085XL Metal-Gear Servo

Body  Selection

  • Choose from Several Clipless Monster Truck Bodies (sold separately)
    • Quick one-hand installation and removal
    • Pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Reinforced for extra protection

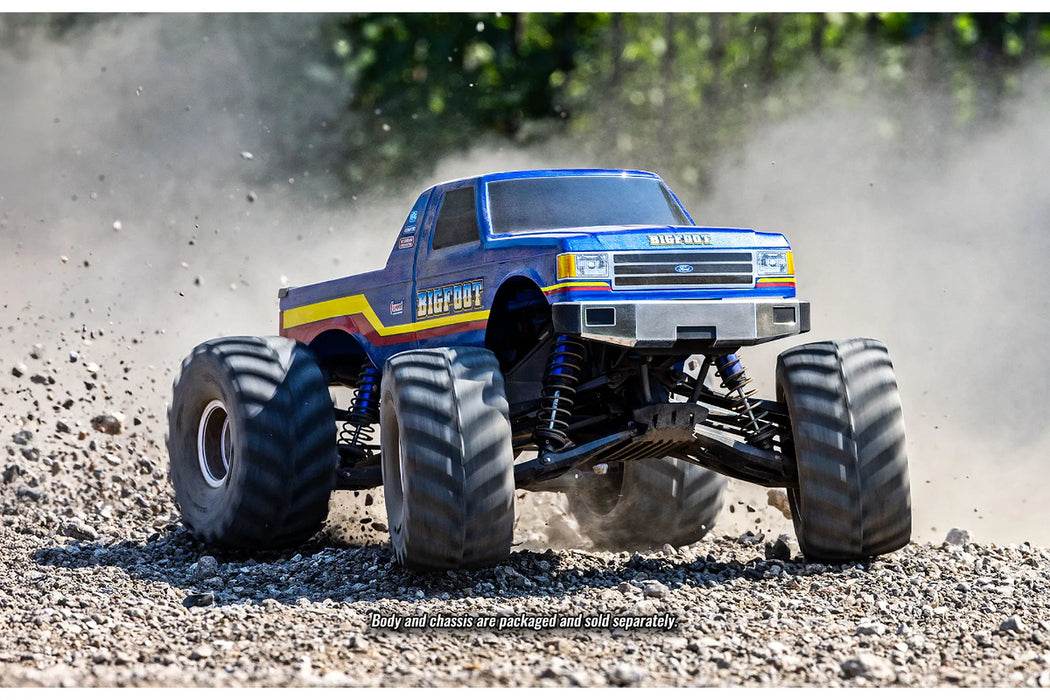

Body and chassis are packaged and sold separately.
Pair the X-Maxx MT Chassis with a new replica Ford F-150, Chevrolet C/K, or BIGFOOT No. 8 body (sold separately by Techno Hobbies). The X-Maxx MT Chassis also accepts existing X-Maxx clipless bodies.
Traxxas X-Monster, A Massive New Monster Truck

Meanwhile, the aluminium GTX shocks and steel suspension arms help the X-Monster handle extreme off-road terrain, while Traxxas Stability Management (TSM) assists in maintaining control at high speeds.

The truck’s modular composite chassis and Snap-Lock battery retention system make maintenance and setup more convenient. Other refinements include pivoting latch bodies, a sealed drivetrain, and high-output 2085XL steering servo delivering 450 oz-in of torque.

Specifications

  • Skill Level: 6
  • Scale: X-Truck
  • Speed: 50+mph with two 4s LiPo batteries and optional speed gear (sold separately)
  • Tyres: Belted Chevron-pattern Monster truck tyres (8.6inch)
  • Transmission: Single speed
  • Drive System: Shaft-driven 4WD
  • Driveline: Shaft-driven 4WD
  • Differential Type: Sealed, hardened steel bevel, limited slip
  • Gear Pitch: 1.0 metric pitch
  • Radio System: TQi™ 2.4 GHz 2-channel
  • Motor: Velineon 1200XL
  • Motor Type: 1275 Kv sensorless brushless
  • Steering Servo: 2085XL metal gear ultra-high-torque waterproof

Dimensions

  • Item Length - Without Packaging (cm) = 77.9
  • Item Height - Without Packaging (cm) = 35.5
  • Item Width - Without Packaging (cm) = 54.0
  • Wheelbase (cm) = 48.0
  • Ground Clearance (cm) =10.7
  • Battery Compartment Specs: 197 mm X 52 mm X 44 mm

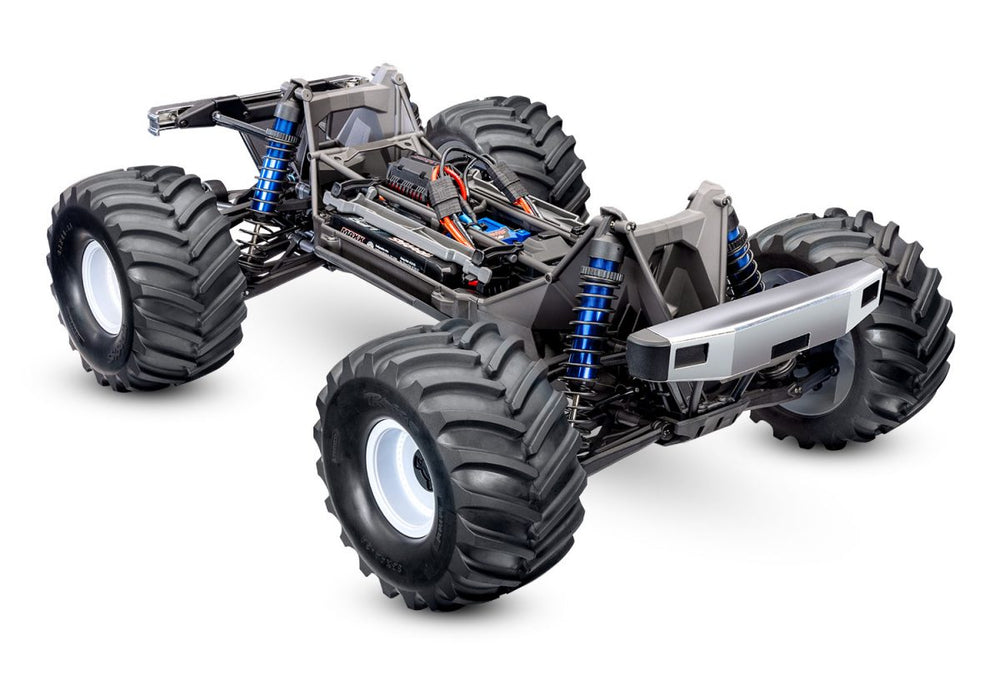

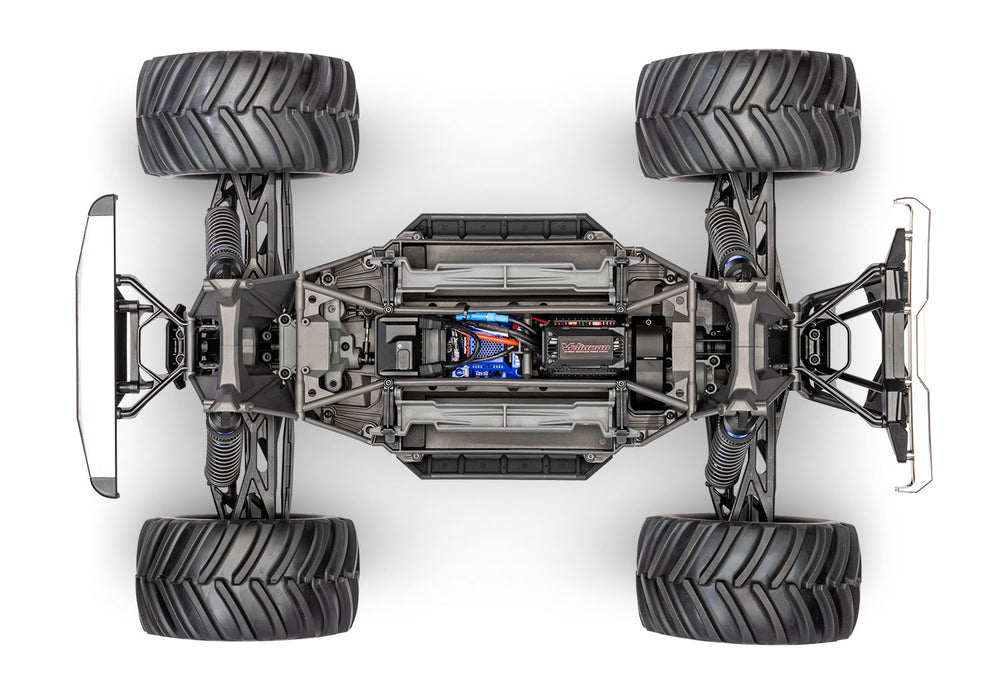

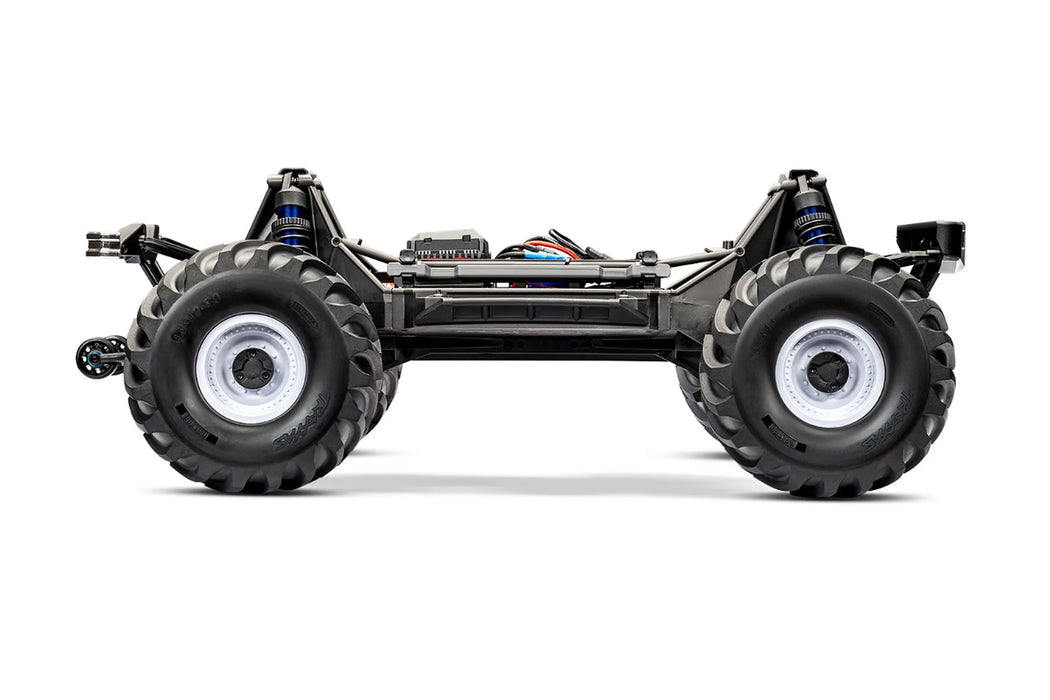

X-Monster Chassis

What's in the box?

  • X-Monster Chassis with Traxxas Big Block brushless motor
  • VXL-8s waterproof electronic speed control with integrated telemetry
  • Optional high speed pinion gear
  • TQi 2.4 GHz radio system
  • High-quality maintenance tools

What You will Need:

  • Batteries
    X-Monster requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance (part 2890X).

  • Charger
    EZ Peak Live Dual 4s LiPo Charger with iD®

  • AA Alkaline Batteries
    Four AA alkaline batteries for the transmitter

  • Body
    Select your X-Monster body from one of several available options



Note: The videos have the price in US$.
