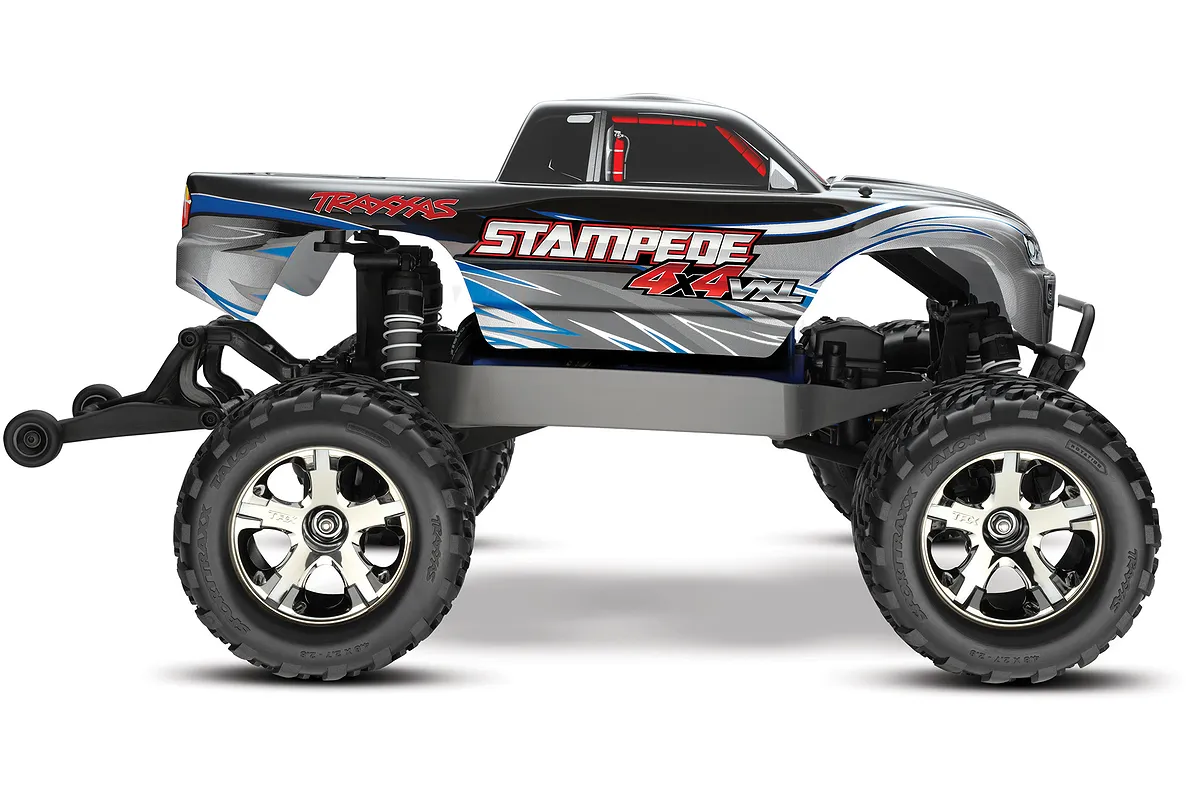

Traxxas 1/10 Stampede 4x4 VXL Brushless 3S RC Monster Truck - 67086-4
The Iconic Traxxas 1/10 Stampede VXL 3S Electric 4x4 Brushless RC Monster Truck
Was $859 On sale $749 - Save $110
Available in 2 colours Blue & Red/Black
Overview
- Velineon 3500 brushless motor for 60+ mph speeds and extreme performance
- Traxxas Stability Management (TSM) for enhanced control on any surface
- Self-righting feature gets you back on track quickly
- Waterproof electronics for all-weather driving excitement
- Perfect for those seeking a powerful and versatile monster truck
Description
Stampede VXL redefines high-performance for RC Monster trucks. Extreme Velineon brushless power muscles the Stampede to speeds of 65mph or 104Km/h and beyond with innovative Traxxas Stability Management (TSM) to make the power more accessible. Experience speed and throttle response like never before with fully waterproof electronics for all-weather fun. Engineered for speed and built Traxxas Tough the Stampede VXL ushers in a new era of extreme monster truck performance.
The Stampede 4X4 VXL is engineered like no other to turn extreme power into extreme monster truck fun! Traxxas Stability Management (TSM) lets you experience Stampede’s extreme power, speed, and acceleration by making it much easier to control on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. The efficient, low-mass drivetrain is totally optimized for the brutal torque of Velineon brushless power, and following the legacy of the Stampede name, this 4X4 is overbuilt and Traxxas Tough to withstand all the 4-wheel drive monster mayhem you can dish out. The patented adjustable wheelie bar is required equipment as Stampede 4X4 launches hard, sending the front wheels soaring for the sky.
Has won best truck of the year, one of the fastest models in its category and is loaded with features, the Traxxas Stampede 4x4 VXL is a true jaw dropper.
Being 4WD you'll be able to accelerate faster, handle better, and still, pop wheelies with the power of the Velineon 3500kv brushless motor! Built for pure fun and durability, you'll enjoy the Traxxas Stampede VXL 4x4 for years on end!
Traxxas Stability Management
Traxxas Stability Management (also referred to as TSM) is included in Traxxas' latest receivers. It incorporates an advanced gyro system that detects when the wheels lose traction beyond the control of the user and instantly corrects it to keep you on course.
TSM Benefits
- TSM makes Traxxas vehicles easier to drive, particularly on loose surfaces
- TSM makes driving more fun by allowing the driver to accelerate harder and drive faster with much greater control
- TSM works to stabilize vehicles over rough surfaces as the gyro effect of the spinning front tires continues to steer when the vehicle is in the air
- TSM dramatically improves braking performance, preventing the vehicle from spinning out
- TSM allows faster cornering speeds
- TSM never restricts throttle (or fun!)
- TSM allows the driver to accelerate harder when exiting a turn
- TSM works invisibly in the background
- The driver maintains their connected feel with the vehicle
- The amount of TSM assistance is fully adjustable ¢TSM can be turned off or adjusted from the TQi Transmitter
- TSM is fully compatible with Traxxas Link
- TSM does not require any complicated set up or instructions.
VXL-3s ESC
The Velineon VXL-3s speed control is loaded with high-grade technology to deliver maximum power to the motor. When running a LiPo battery, the two-stage low voltage detection prevents the battery from being over-discharged, and advanced circuit design gives smooth power delivery at any speed.
Velineon 3500kv Motor
This RC car's power is delivered by Traxxas' mighty Velineon 3500kv brushless motor. Ultra-high-temperature Neodymium magnets, high-speed ball bearings, and a precision balanced rotor deliver power and long life with near zero maintenance.
Traxxas ID Connectors
The best connectors in the industry! Secure, easy to use, high-current, also has an RFID chip that tells the charger what settings to charge it on. Now that's one smart connector.
Features
- Traxxas Stability Management TSM
- Powered by the Velineon Brushless Power System
- Stampede VXL reaches speeds in excess of 65 mph!*
- Waterproof electronics extend brushless power and performance to water, mud, and snow
- Velineon VXL-3s Electronic Speed Control
- LiPo and NiMH compatible with two-stage low-voltage detection
- Sport Mode forward / brake / reverse
- Race Mode forward / brake
- Training Mode 50% forward / brake / 50% reverse (patented)
- Velineon 3500 brushless motor
- Consistent high-power output
- Low-maintenance design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- TQi 2.4GHz transmitter
- Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models just switch on and drive, "model selection" is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
- Digital high-torque Traxxas 2075 waterproof steering servo
- Durable steel turnbuckles and captured rod ends
- High Performance Magnum 272R transmission
- All-metal internal gears
- Sealed bevelled-gear differential
- 3.2 mm aluminium motor plate
- Low-profile case
- Sealed gearbox protects the transmission with beefed up motor guard for extra protection
- Torque-Control slipper clutch
- External gear cover with easy slipper access
- Updated heavy-duty telescoping U-joint driveshafts and yokes
- Fibre-composite monocoque chassis
- Speed control and receiver are securely fastened to chassis
- Easy access battery compartment
- Fully adjustable Ultra Shocks with X-ring technology
- White powder coated shock springs feature a responsive spring rate
- Talon all-terrain 2.8" monster truck are pre-glued on black-chrome All-Star wheels
- ProGraphix multi-coloured painted body
100% Assembled and Ready for your Battery and Charger
Stampede VXL rolls out of the box Ready-To-Race with the advanced TQi 2.4GHz 2-Channel radio system and powerful Velineon Brushless Power System.
With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun.
- ProGraphix® Painted Body
- Pre-painted monster truck body with applied decals
- Front and rear tube-style bumpers
-
VXL-3s™ Waterproof Electronic Speed Control
- Traxxas EZ-Set® one-button setup
- Race Mode - Forward / Brake
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Sport Mode - Forward / Brake / Reverse
- Velineon® Brushless Motor
- Brilliant blue-anodized finish
- Includes exclusive Self-Righting capability
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on power-slides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box
- Modular chassis makes maintenance quick and easy
- Easy motor access with single-screw motor plate attachment
- All electronics securely fastened to chassis
- Accepts 6-cell flat packs and 7-cell hump packs
- Accepts short form factor 2-cell and 3-cell LiPo batteries
- Full-time shaft-driven 4WD
- Blue-anodized aluminium centre driveshaft
- Torque-Control™ slipper clutch with large 32-pitch gearing
- Sealed, silicone-filled differentials with steel gears
- Heavy-duty telescoping U-joint driveshafts
- Digital high-torque Traxxas 2075 waterproof steering servo
- Dual bellcrank steering system with integrated servo saver
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
- Rugged shock guards mounted to suspension arms
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
- Pre-glued high profile Talon™ all-terrain tires with performance foam inserts
- 2.8″ Black-chrome All-Star™ wheels
Precision 2.4GHz Control
Traxxas Stampede 4X4 VXL is equipped with the world's most advanced Ready-To-Race®radio system. The all-new Traxxas®TQi arrives with a full complement of tuning features and offers the unbeatable convenience of no channels, no crystals" 2.4GHz technologyxbut that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely and the Multi-Function knob can be programmed to control Traxxas Stability Management (TSM), Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.
Training Mode
Traxxas' exclusive patented Training Modelet's everyone get in on the racing action. Just press a button to limit full-throttle power to 50%. This allows young or new drivers to safely develop their control skills before unlocking full power Traxxas Slash 4X4. Training mode even makes it easy to hand the transmitter over to your friends who have never driven a radio controlled truck before.
Traxxas Link Wireless Module Compatible
The TQi's most important new feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module (#6511, sold separately) and turn your Android, iPad®iPhone®or iPod touch®(sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.
Self-Righting
The Traxxas exclusive Self-Righting feature made its debut in the ground-breaking X-Maxx monster truck. With one press of a button, your monster truck can automatically get itself back on all four tires. This means the action doesn't have to stop to rescue an upside down truck.Self-Righting feature requires a 3-cell LiPo battery for optimal performance.
Innovative Chassis
The innovation designed into the Stampede 4X4 begins with the chassis. Extreme Brushless Power and 4WD requires a chassis that won't flex under load for arrow-straight, hard-charging acceleration. The chassis fully integrates the electronics and battery compartment for an efficient and compact layout, and maintains the high center ground clearance that gives Stampede 4X4 its monster stance and high-riding look. The extra clearance dramatically increases the offroad versatility that allows you to tackle rough terrain and large obstacles. The Stampede 4X4 feels planted and secure at speed, even on pavement and in other high-grip conditions. Stampede 4X4 is 100% monster truck, but it handles like a racing machine! Underneath, the chassis is ultra-smooth to reduce drag and prevent snags driving through brush.
Modular Simplicity
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. Modular design allows the entire front section to be removed with just 5 screws, and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.
Oil-Filled Ultra Shocks
High-speed off-road action requires rugged, responsive shocks that can take abuse. Traxxas Ultra Shocks are proven tough as stock equipment for Traxxas Maxx trucks. The high-volume body yields large oil capacity, and a silicone bladder separates oil from air within the shock for consistent damping action, even during all-day off-road sessions. Dual X-ring seals give super-smooth performance without weeping or leaking, and Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons.
Digital High-Torque Waterproof Steering Servo
A monster truck needs a powerful steering servo for responsive performance. A Traxxas digital high-torque, ball bearing steering servo (#2075) comes standard for precision control, quick response, and unmatched torquexall in a waterproof case. With 125 oz-in torque and a 0.16-second transit speed, it gives Stampede 4X4 ample steering power for responsive, precise control.
Extruded Aluminium Driveshaft
Stampede 4X4's center driveshaft is formed from extruded aluminum. There are no dogbones to wear, no drive cups to wobble. The extrusion process allows the shaft to be hollow and lightweight with internal splines that fit directly and securely onto the input shafts of the front and rear drive assemblies. The shaft runs perfectly straight and true and offers superior durability. Traxxas engineers highlighted this important innovation with vivid blue anodizing and a laser-etched Traxxas logo, then protected it with a clear cover that shows off the high-tech look while keeping dirt and debris away from the shaft.
Single-Screw Motor Access
Stampede 4X4's unique mount that holds the Velineon 3500 motor securely yet releases instantly with just one screw. Gear-mesh adjustments are fast and easy and the motor can be removed in just seconds.
Sealed Steel-Gear Differentials
Stampede 4X4's differentials represent the state of the art in power handling and efficiency. Go ahead, let the throttle rip! Steel gears in the differentials are built to handle brushless power for all the wild action you crave. Precision silicone gaskets and X-ring seals allow the diffs to be tuned for specific running conditions by varying the viscosity of the fluid inside them. Differential access for tuning is quick and easy. Just remove the front or rear cover and the entire differential slides right out.
New Heavy-Duty Driveshafts
Stampede 4X4's telescoping, universal-joint driveshafts may look familiar but they have evolved for increased strength and articulation. Traxxas U-joint driveshafts allow for maximum suspension movement resulting in longer travel and tighter turning. Extra material and design tweaks greatly increase torque handling. The shafts can even be used to upgrade the 2WD Stampede and other Traxxas models!
Torque-Control Slipper Clutch
Another Traxxas exclusive, Stampede 4X4's patented slipper clutch design uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The slipper is easily adjusted without disassembly or removal, and the unique 3-pad design is proven rugged in Traxxas' most powerful electric and nitro vehicles. It's the perfect complement to Velineon brushless power and 4WD, offering the ultimate in traction control.
Heavy-Duty 32-Pitch Gears
Extreme brushless horsepower is never an afterthought at Traxxas. The Stampede 4X4 driveline is built to handle power for today and accommodate future power upgrades down the road. The spur gear features rugged 0.8 module/32-pitch teeth for total reliability no matter how much power you pour on.
Long-Travel Suspension
Stampede 4X4 has huge amounts of seemingly bottomless, ultra-plush suspension travel for suspension action that swallows up jumps and delivers incredible rough-track control. The fully-optimized front axle carrier is a result of computer modeling that allowed engineers to design for maximum articulation without binding or interference. Tight steering response is always there, even at the extreme ranges of the suspension travel. Double-shear tie rods and camber links simply can't pop off, so you always stay in control. Robust construction wards off crash damage, and oversized 10x15 mm inboard bearings and 5x11 mm outboard bearings are incredibly durable and smooth.
Optimum-Geometry Steering with Integrated Servo Saver
No part of Stampede 4X4 was overlooked in the quest for durability, precision, and performance. The new dual-bellcrank design pivots on rubber-sealed ball bearings for smooth action in the harshest conditions, and an integrated cam-type servo saver protects the servo gears from crash impacts without sacrificing steering precision.
Heavy-Duty 4 mm Turnbuckles
Stampede 4X4's turnbuckles have broad flats that make it easy to set toe-in and camber. The tough steel construction is ultra durable and the captured rod ends won't pop apart during rigorous off-road pounding.
ProGraphix®Bodies
Stampede 4X4's ProGraphix body comes fully trimmed and pre-painted with decals applied to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-To-Race®models.
Hex Hardware
Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.
Rubber-Sealed Ball Bearings
Precision 5x11 mm rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.
Rubber-Sealed Ball Bearings, Precision Hex Hardware, Backed by Unparalleled Traxxas Support and Parts Availability.
Specifications
- Length: 397mm (15.63”)
- Width: 340mm (13.39”)
- Height: 214mm (8.43”)
- Weight: 2.54kg (5.6lbs)
- Ground Clearance: 74mm (2.9”)
- Drivetrain: 4WD
- Length: 19.69 Inches (500mm) 15.63 Inches (397mm) – without wheelie bar
- Front Track: 13.39 Inches (340mm)
- Rear Track: 13.39 Inches (340mm)
- Center Ground Clearance: 2.90 Inches (74mm)
- Weight: 89.64 oz (2.54kg)
- Height (overall): 9.21 Inches (234mm)
- Wheelbase: 10.83 Inches (275mm)
- Shock Length: Long (front), XXLong (rear)
- Tyres: Talon™ 2.8"
- Tyre Diameter: 4.80 Inches (122mm) (front and rear)
- Wheels (front/rear): 2.8" Black-Chrome (All-Star™)
- Wheel Diameter: 2.8 Inches (72mm)
- Speed Control Type: VXL-3s™ Electronic Speed Control
- Motor (electric): Velineon® 3500 Brushless
- Overall Drive Ratio: 13.97 (stock, out-of-box)
- Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
- Gear Pitch: 32
- Chassis Structure/Material: Molded Tub / Nylon Composite
- Drive System: Shaft-Driven, Direct Drive 4WD
- Steering: Dual-Bellcrank with Integrated Servo Saver
- Radio System: TQi™ 2.4GHz (2-channel) with Traxxas Stability Management
- Body: ProGraphix, Traxxas Stampede
- Top Speed: 60+mph (with optional gearing and 3S LiPo)
- Skill Level: 1
- Battery Tray Dimensions: 142x48.5x23mm/25mm (battery expansion kit available TRA5827X)
- Included Accessories: Precision Tool Set
| RC Car | |
|---|---|
| Max LiPo Power: | 3S (11.1v) |
| Scale: | 1/10 |
| Skill Level: | Intermediate |
| Power Source: | Electric Brushless |
| Chassis Type: | Truck |
| On/Off Road: | Off Road |
| Drivetrain: | 4WD |
| Factory specs | |
|---|---|
| Battery connector: | TRX |
| Max LiPo power: | 11.1V 3S |
| Front shock oil: | |
| Rear shock oil: | 30w |
| Wheel hex size: | 12 |
MODEL SPECS
| Model Name: | Stampede 4X4 VXL TSM |
|---|---|
| Model Type: | Monster Truck |
| Model Speed: | 60+ mph with optional gearing and 3s LiPo battery (items sold separately) |
| Model Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.6 pounds (2.54 kg) |
| Length: | 19.69 inches (500 mm) – with wheelie bar |
| Width: | 13.39 inches (340 mm) |
| Front Track: | 13.39 inches (340 mm) |
| Rear Track: | 13.39 inches (340 mm) |
| Height: | 9.21 inches (234 mm) |
MOTOR SPECS
| Motor Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 9.24 ounces (262 g) |
| Motor Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC SPECS
| ESC Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| ESC Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 12 gauge Maxx® Cable |
Required Items
- Battery: 2S 7.4V or 3S 11.1V LiPo Battery
- Charger: Compatible LiPo battery
- 4 x AA Batteries
