Arrows Hobby 1200mm Trekker PNP RC Aircraft AH023P
Overview
- This is an Arrows Hobby 1200mm Trekker RC Aircraft, a Trainer RC Plane designed for beginner pilots.
- It features a high-lift wing configuration and high ground clearance for better stability and easier takeoff/landing.
- The model is constructed from durable, lightweight EPO foam and includes a switchable stabilization system to assist with flight control.
- Requires Radio, Receiver, Battery and Charger
Description
Arrows Trekker 1200mm PNP

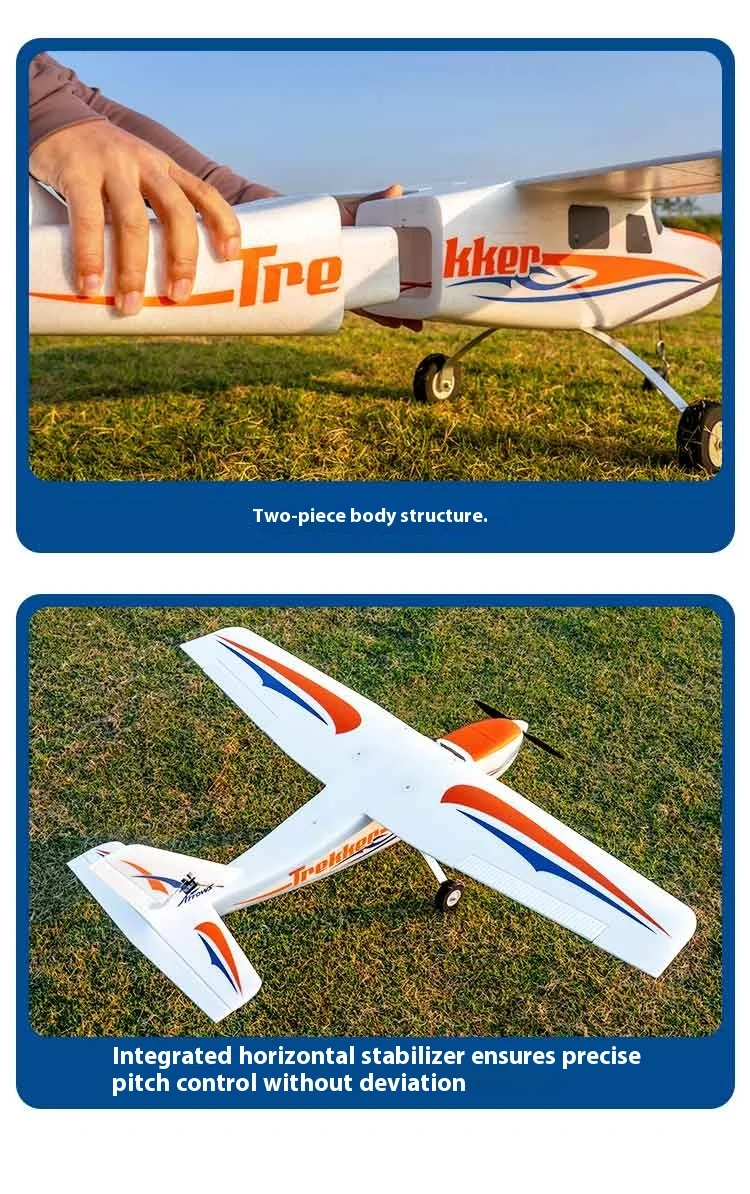

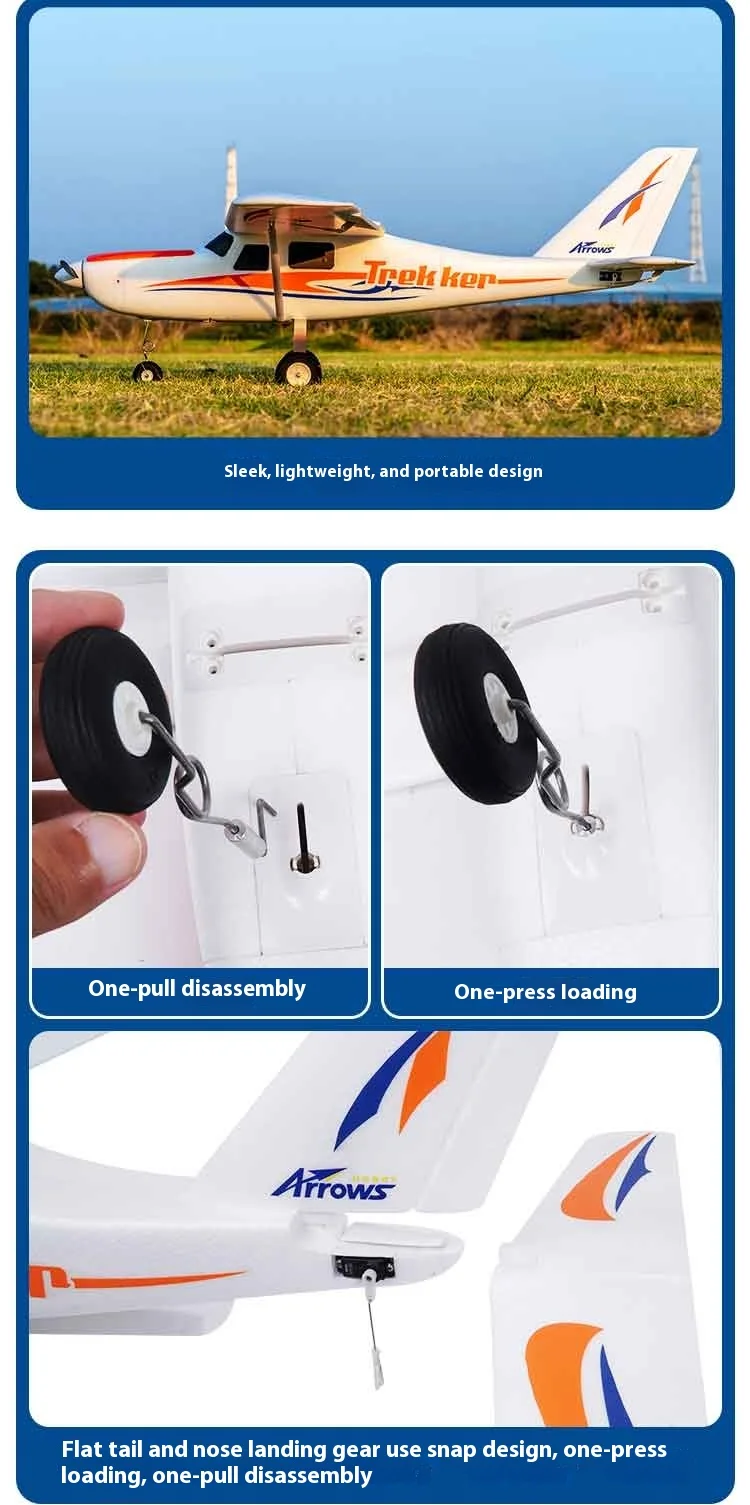

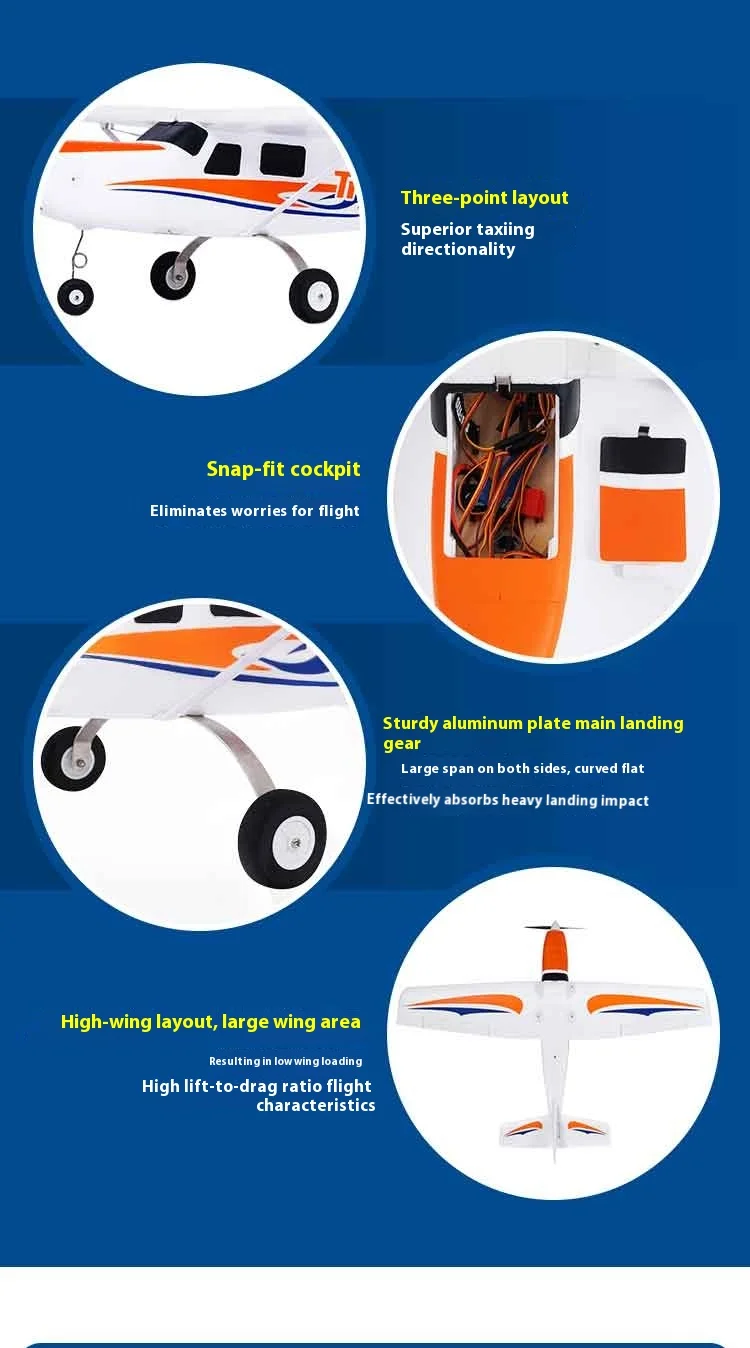

Built with ultralight EPO foam, the large wing area, high-winged airframe configuration gives the Trekker low wing-loading and extraordinary amounts of lift, even at slow speeds. The use of the tricycle-geared layout helps to have a better rolling directionality. The main landing gear is made of durable aluminium plates, with large spans on both sides and flat arcs, which can effectively absorb the impact of heavy landing. Furthermore, optional floats add to the all-terrain fun of the Trekker.
Features
Specifications
| Wing Area | 25dm² (387in²) |
| Wing Loading | 40g/dm²(0.08oz/in²) |
| Wingspan | 1200mm (47.2in) |
| Length | 950mm (37.4in) |
| CG (Centre of Gravity) | 50-60mm from the leading edge |
| Power System | Brushless 3136-KV1200 |
| Electronic Speed Control | 20A XT60 |
| Propeller / EDF | 10 x 5 |
| Servos | 9g servo x 4, 9g 54 degree servo x 1 |
| Landing Gear | Fixed |
| Required Battery | 11.1V 1300mAh 25C |
| Required Radio | 6 Channel transmitter and receiver required |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | No |
| Material | EPO Foam |
| Skill Level | Beginner |
| Build Time | 15 minutes |
| Gyro | No |
Requires to Fly
This is a PNP RC plane and requires
- 6 Channel Radio System and Receiver
- 11.1V 3S 1300mAh LiPo Battery
- Compatible Battery Charger
